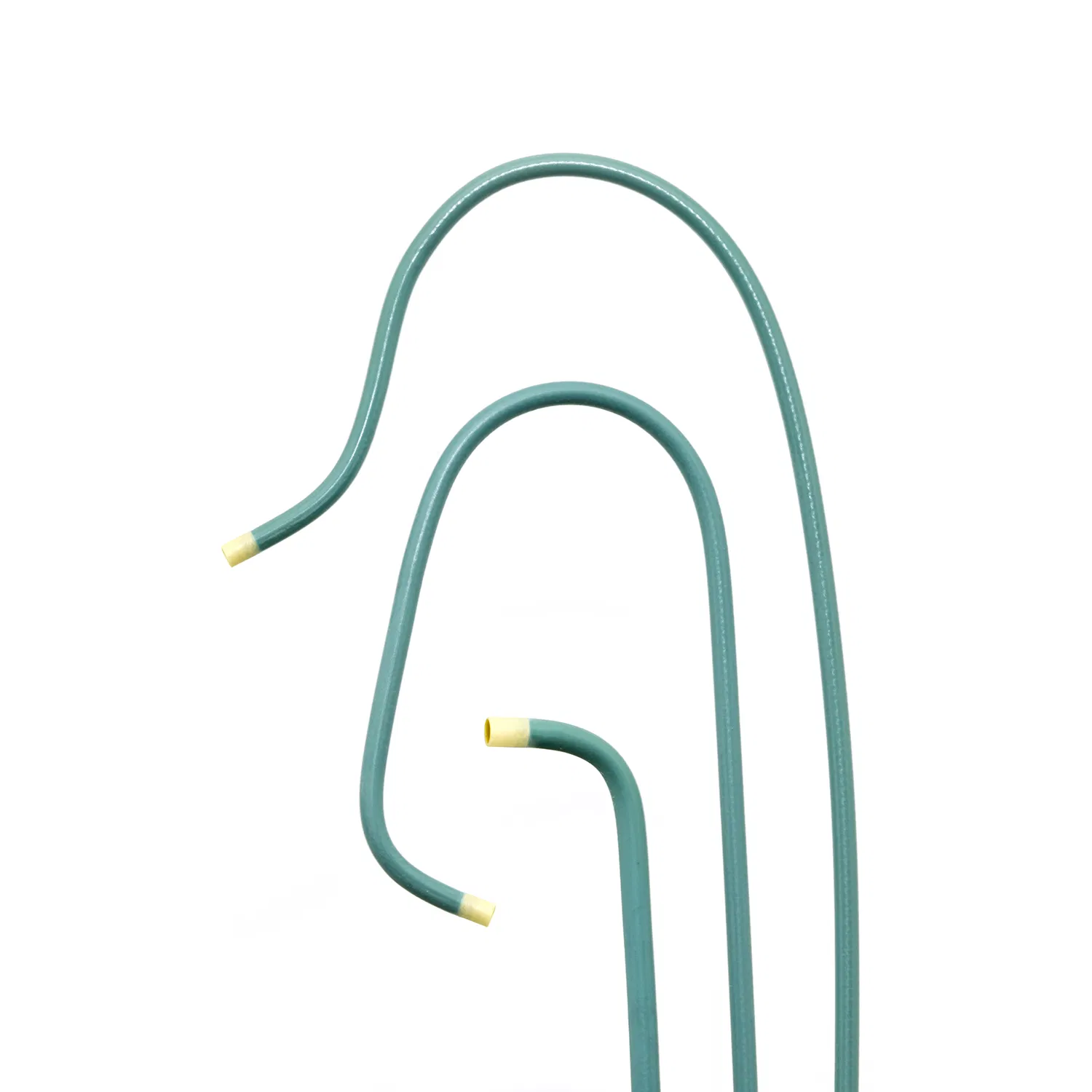

Angiography Catheter Vertebral Vascular System During Diagnostic Endovascular Procedures

1 / 5

Angiography Catheter Vertebral Vascular System During Diagnostic Endovascular Procedures

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.: RH630, SM510, HH371 Series

Sterilization: Ethylene Oxide Sterilization

Guarantee: 3 Years

Group: Adult

Name: Angiographic Catheter

Application: Peripheral Vascular System

Origin: China

Package: Sterile Bag + Inner Box + Outer Box

Product Description

Coronary angiographic Catheters are designed to provide a pathway for delivering contrast media to selected sites in the coronary vascular system. It is mainly composed of a flexible tube body, a hard catheter section, and two-way stopcocks.

Trauma Reduction: The soft tip is specifically designed to reduce the risk of vascular trauma during contrast injection.

High Visibility: Utilizes highly radiopaque material to promote clear fluoroscopic visualization under imaging.

Kink Resistance: Durable, fluted hub design eases guidewire manipulation and provides strain relief for smooth advancement.

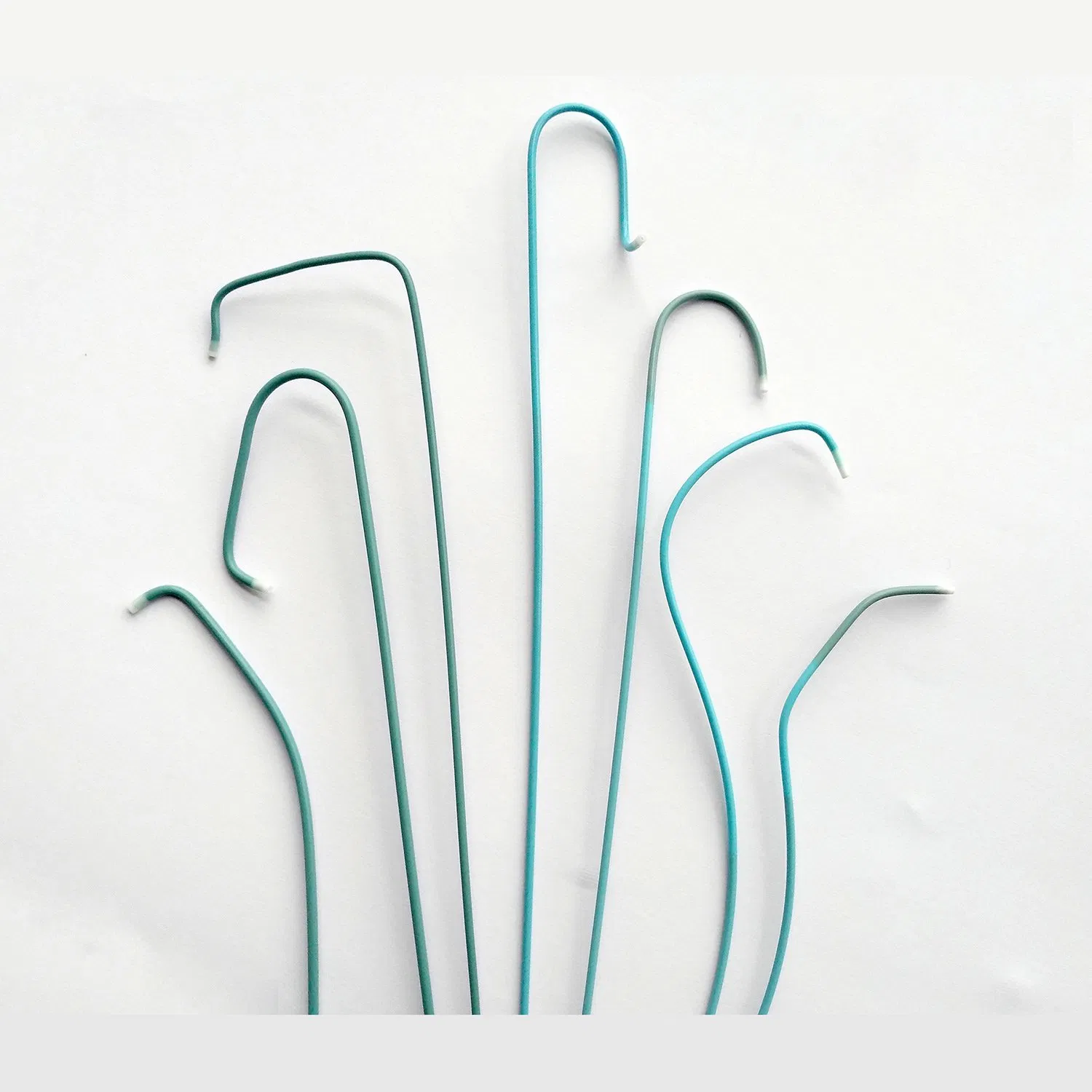

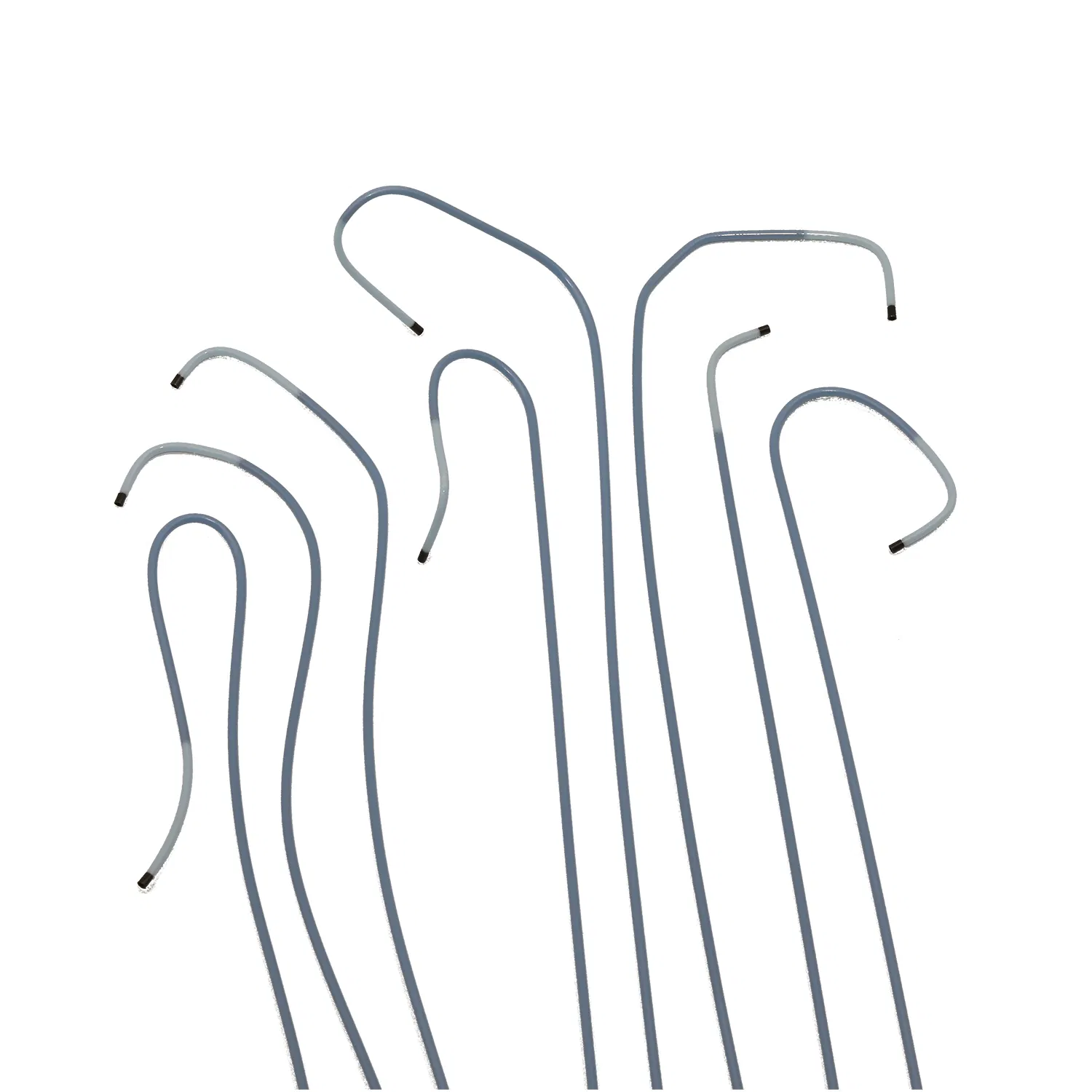

Clinical Versatility: A wide variety of shapes are available to meet individual clinical and anatomical requirements.

Technical Specifications

Terminal Configuration	Models	Nominal OD (Fr/mm)	Internal ID (mm)	Length (cm)
Hepatic artery (RH)	RH630-4.2-80	4.2/1.4	1.0	80
Hepatic artery (RH)	RH630-5-80	5/1.7	1.03	80
Simmons tube (SM)	SM510-4.2-100	4.2/1.4	1.0	100
Simmons tube (SM)	SM510-5-100	5/1.7	1.03	100
Hunter head (HH)	HH371-4.2-100	4.2/1.4	1.0	100
Hunter head (HH)	HH371-5-100	5/1.7	1.03	100
Renal artery (HS)	HS640-4.2-80	4.2/1.4	1.0	80
Renal artery (HS)	HS640-5-80	5/1.7	1.03	80
Cobra tube (CB)	CB230-4.2-80	4.2/1.4	1.0	80
Cobra tube (CB)	CB230-5-80	5/1.7	1.03	80
Vertebral artery (AN)	AN-4.2-100	4.2/1.4	1.0	100
Vertebral artery (AN)	AN-5-100	5/1.7	1.03	100

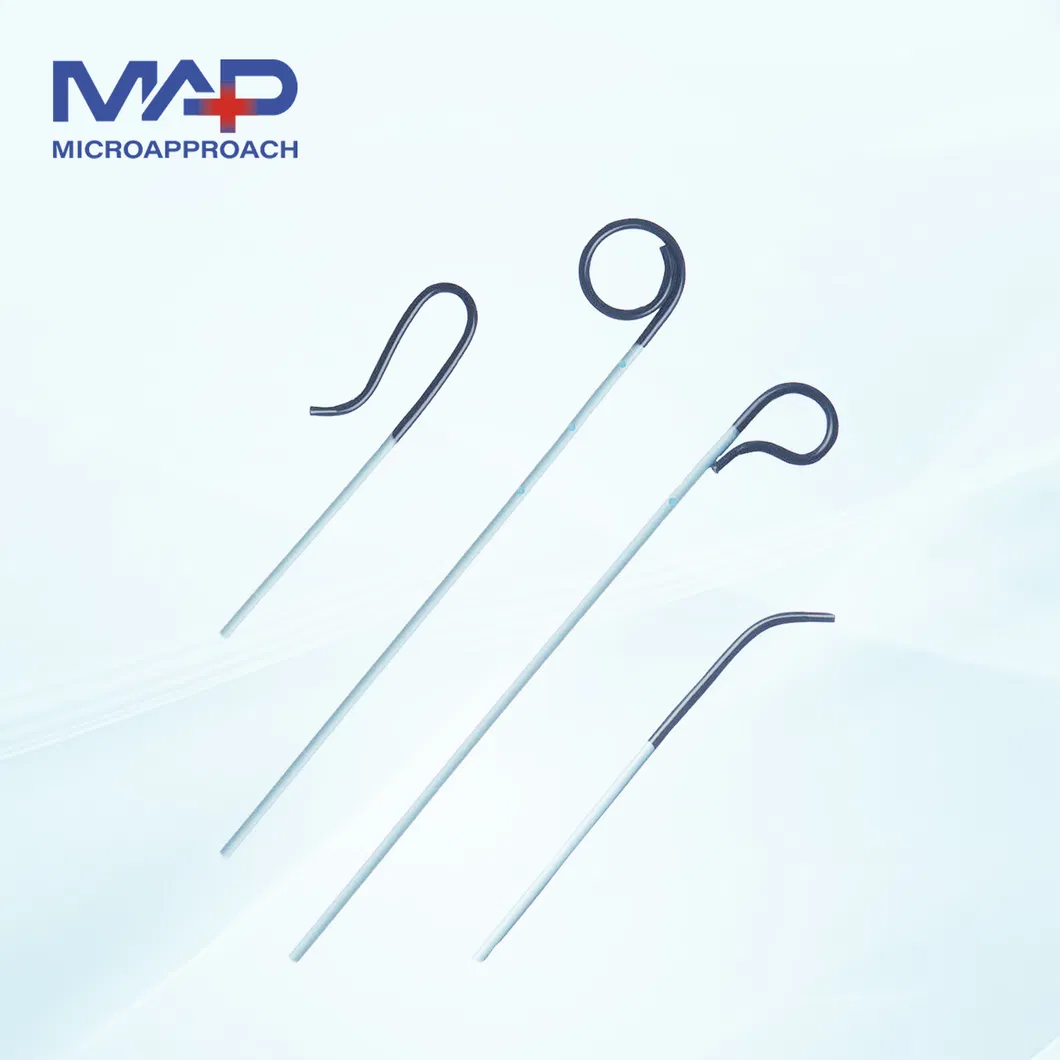

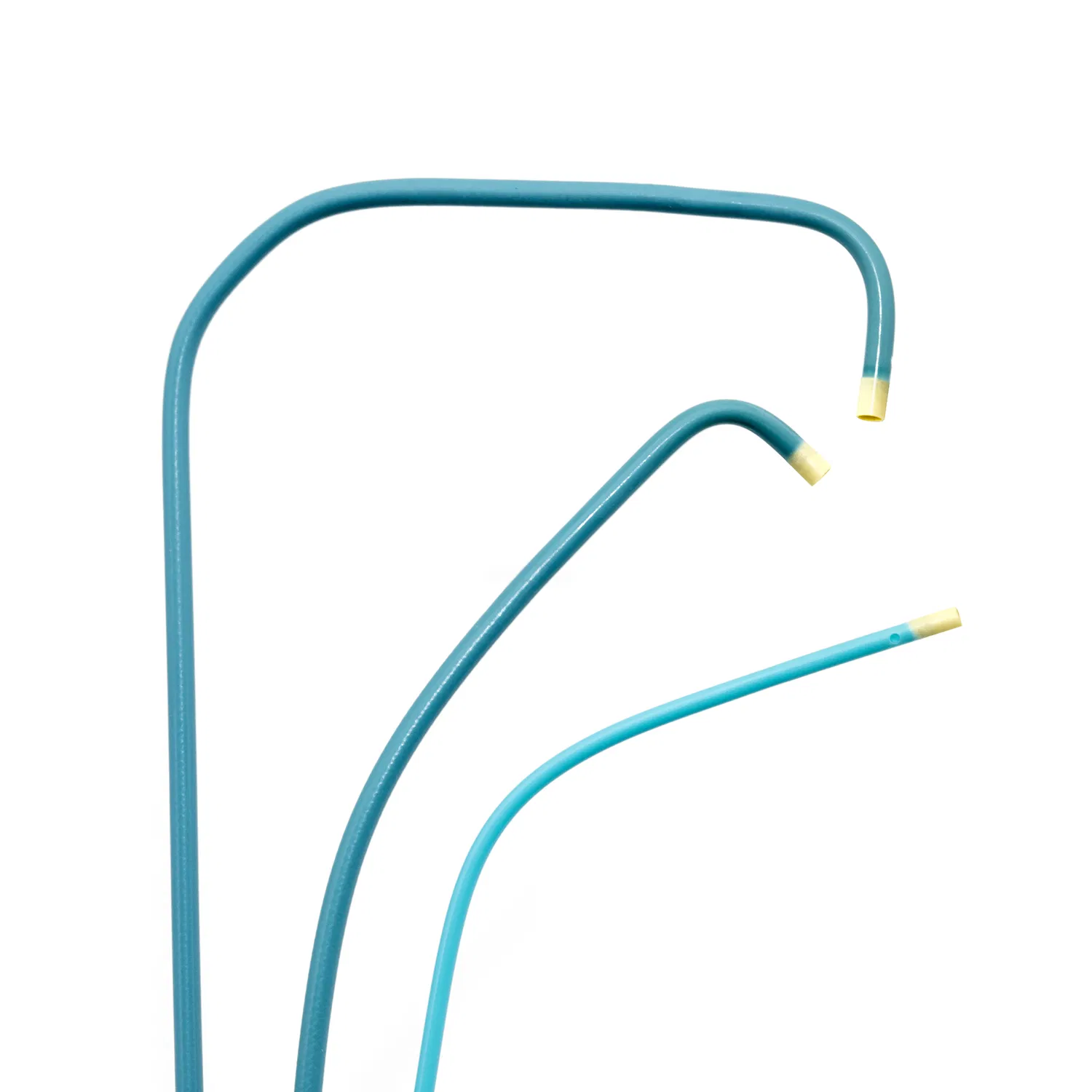

Visual Showcase

Frequently Asked Questions

Q: What is the primary purpose of this Angiographic Catheter? A: It is designed to deliver contrast media and therapeutic agents to specific sites within the coronary and peripheral vascular systems during diagnostic procedures.

Q: How does the catheter ensure patient safety during injection? A: The catheter features a specially designed soft tip that minimizes the risk of vessel wall trauma during the injection of contrast media.

Q: Is the catheter visible under X-ray? A: Yes, the catheter is made from highly radiopaque materials, ensuring excellent visualization under fluoroscopy for precise placement.

Q: What models and sizes are available? A: We offer a variety of shapes including Hepatic (RH), Simmons (SM), Cobra (CB), and more, in standard sizes like 4.2Fr and 5Fr with lengths from 80cm to 110cm.

Q: How is the product sterilized and what is its shelf life? A: All catheters are sterilized using Ethylene Oxide (EO) and come with a 3-year quality guarantee period when stored correctly.

Q: Does the hub design help with catheter advancement? A: Yes, the durable fluted hub is engineered for better control, easing guidewire manipulation and providing kink-resistant advancement.
