Biobase Medical Pathology Tissue Embedding Center

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📝 Overview

Model

BK-TEI

Temp. Range

55~70℃

Temp. Precision

±1%

Work Table Material

Granite, Easy to Clean

Paraffin Control

Finger Touch Plate / Foot Pedal

Consumption

650W

External Size

525*550*385mm

Gross Weight

41kg

🔍 Product Description

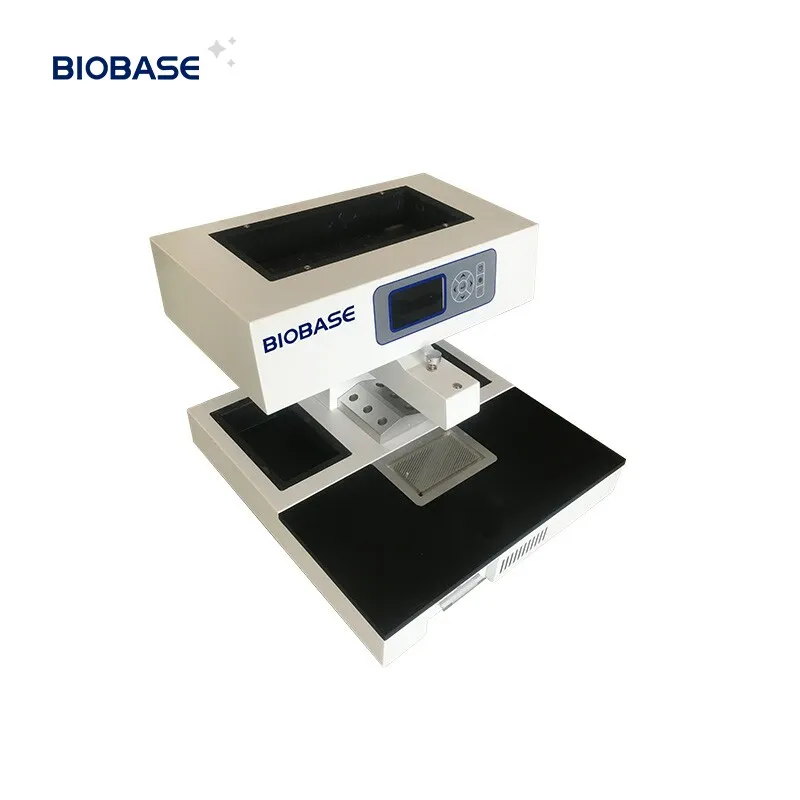

Tissue Embedding Center & Cooling Plate

Paraffin Chamber Capacity: 3L | Temp. Range: 55~70ºC

Key Features:

Advanced Microprocessor Control for precise temperature management.
Flexible modular design: Embedding Module and Cryo Module can be assembled freely.
Dual-protection heating mechanism ensuring safety, reliability, and energy efficiency.
Fully programmable computer controls for automatic system start and stop throughout the week.
Automatic Memory and Restoration: Preset temperature data are automatically stored after system startup.
Individual control for Paraffin Chamber, Dispenser, Thermal Storage Compartments, and Heating Plate.

📊 Product Parameters

Model	BK-TEI
Paraffin Chamber Capacity	3L
Temp. Range (Wells/Chamber/Storage/Plate/Dispenser)	55~70ºC
Temp. Precision	±1%
Work Table Material	Granite, easy to clean
Power Supply	AC110/220V±10%, 50/60Hz
External Size (WDH)	525550385mm
Optional Accessory	BK-CPI Cooling Plate
Gross Weight (Main Unit)	41kg
Gross Weight (BK-CPI)	37kg

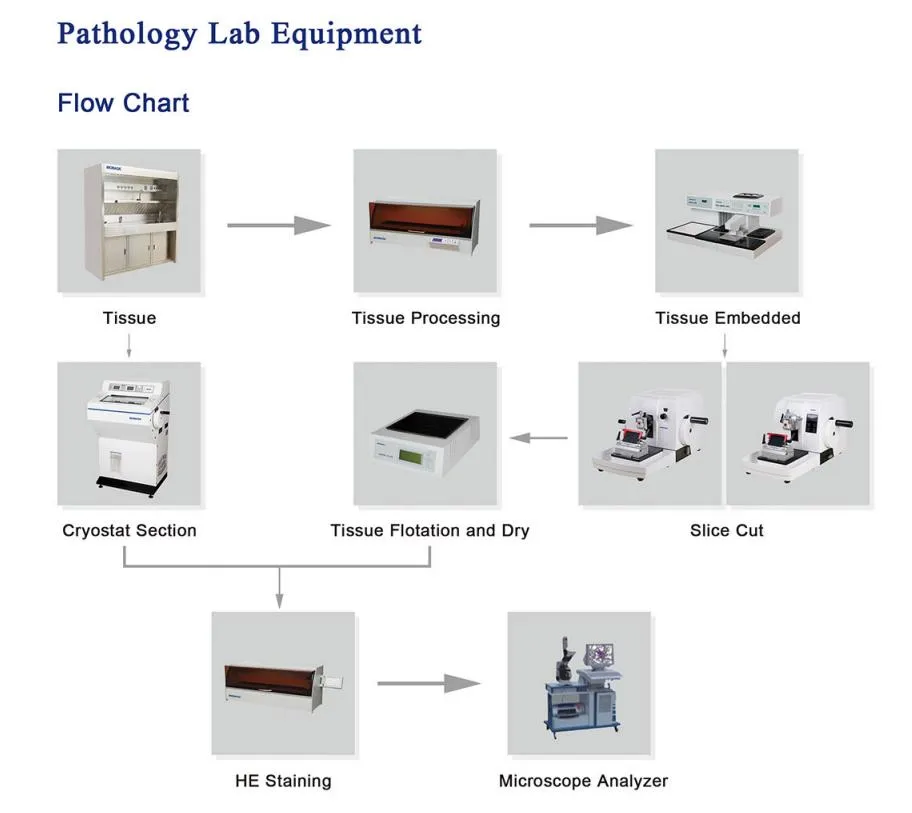

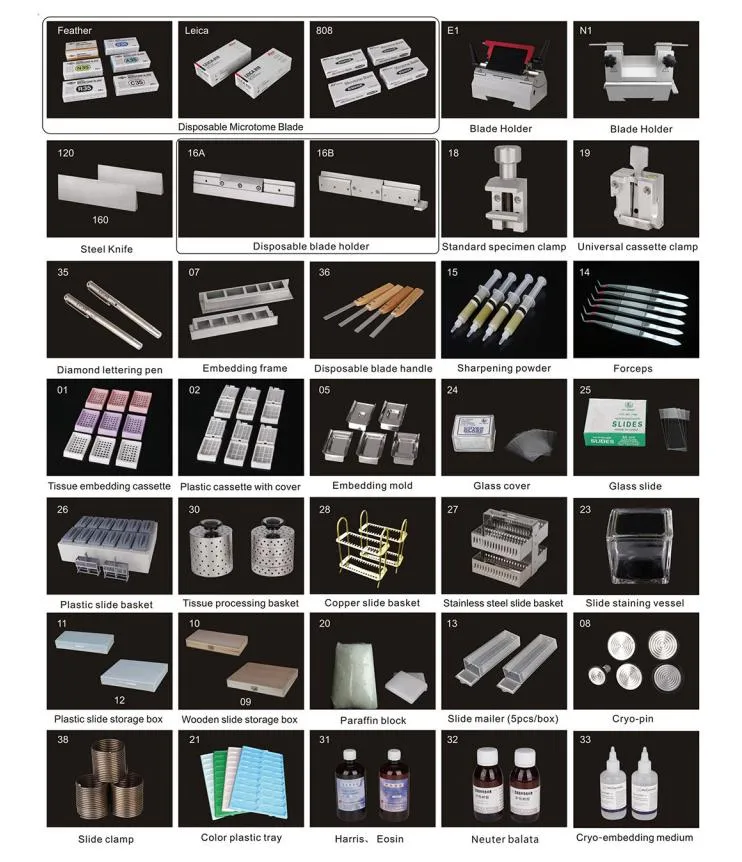

🔬 Histopathology Series & Consumables

⭐ Our Advantages

💡 FAQ

What is the capacity of the paraffin chamber?

The paraffin chamber has a large capacity of 3 liters, suitable for high-volume tissue embedding tasks.

How is the temperature controlled in the different modules?

The Paraffin Chamber, Paraffin Dispenser, Left and Right Thermal Storage Compartments, and the Heating Plate are all individually controlled via a microprocessor system.

Can the embedding and cooling modules be separated?

Yes, the Embedding Module and the Cryo (Cooling) Module are designed to be assembled or positioned freely according to laboratory workspace requirements.

What material is used for the working table?

The working table is made of high-quality granite, which is durable and extremely easy to clean after use.

Does the system support automatic scheduling?

Yes, the system is fully programmable, allowing users to set automatic start and stop times for any day within a week.

Is there a backup for temperature settings in case of power cycles?

Yes, the unit features automatic memory and restoration, meaning all preset temperature data are stored and restored upon restart.
