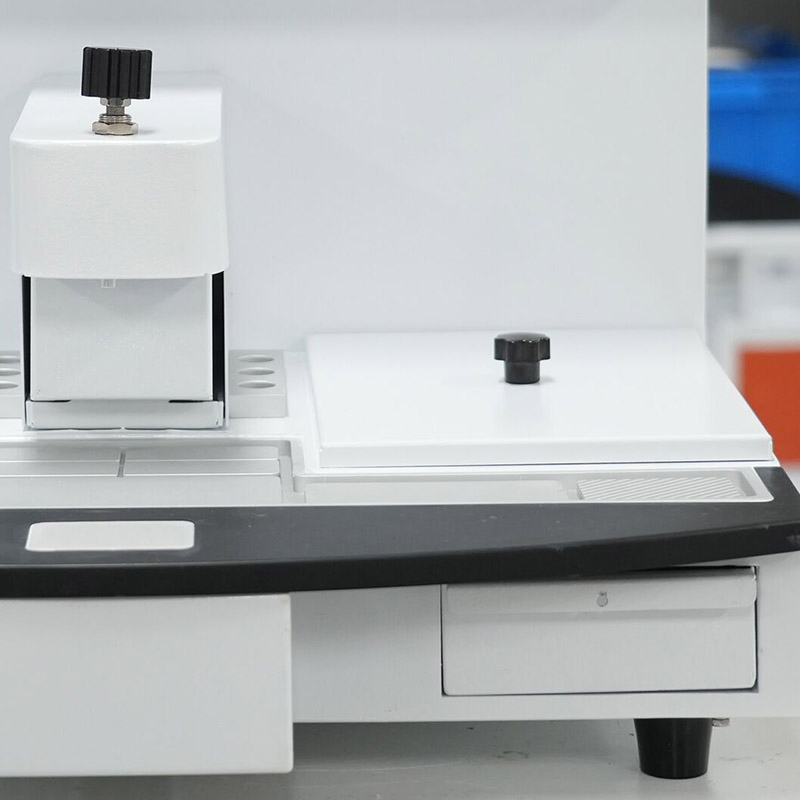

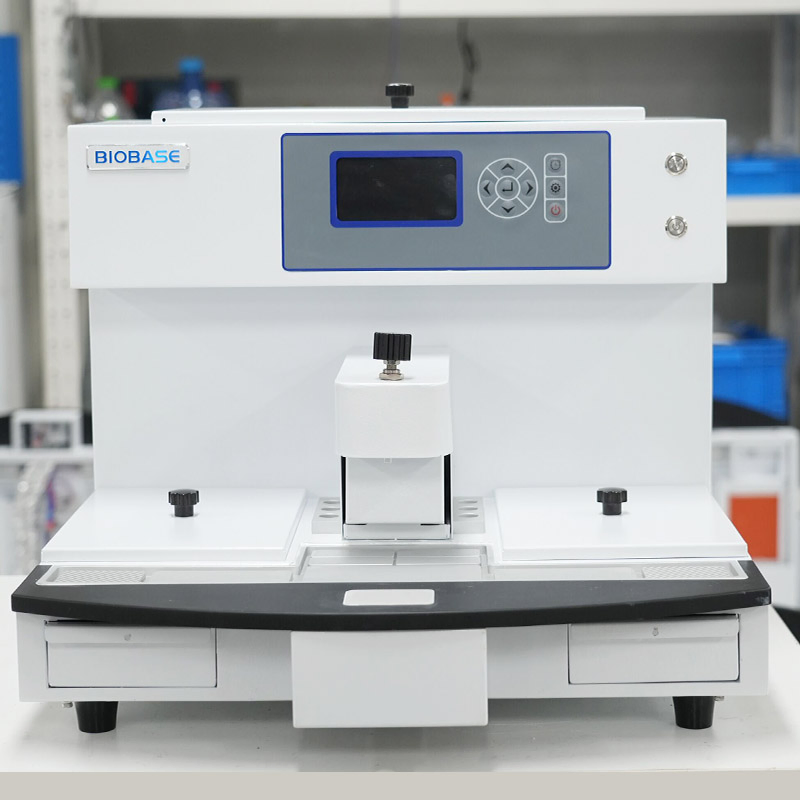

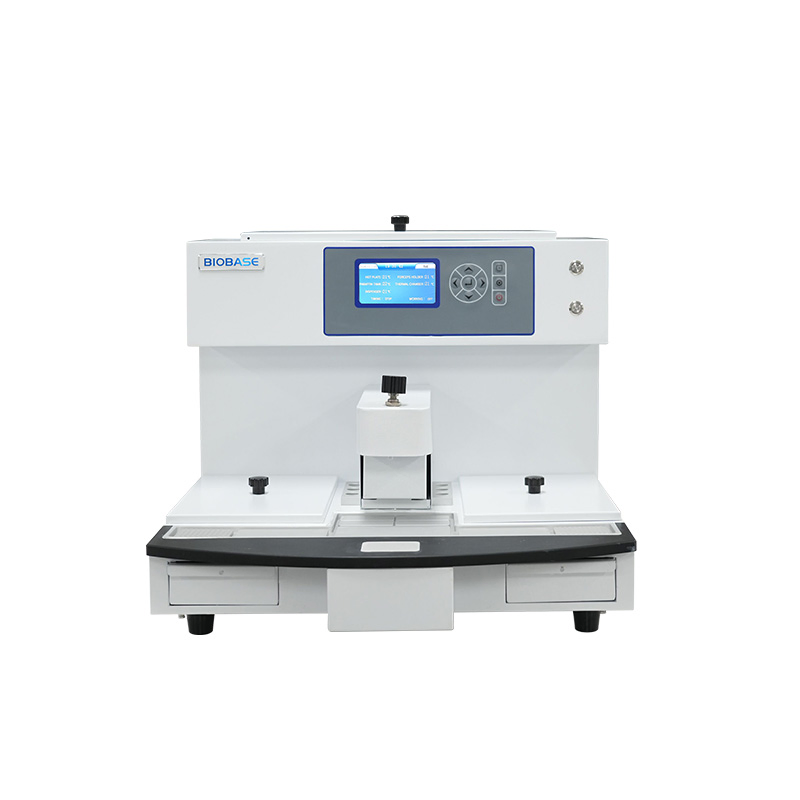

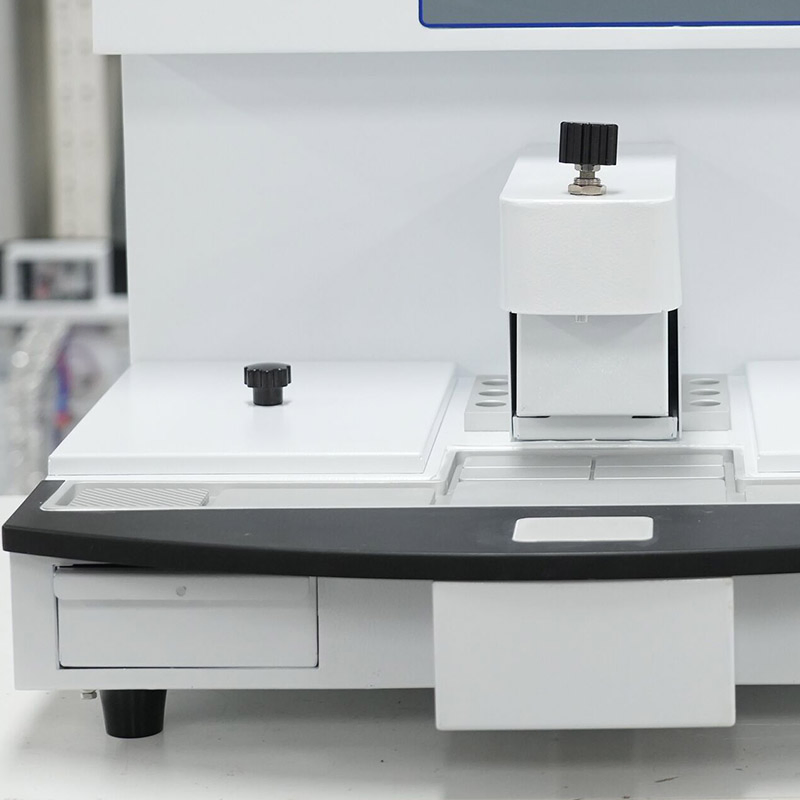

Biobase Pathological Tissue Embedding Center
Biobase Pathological Tissue Embedding Center
Biobase Pathological Tissue Embedding Center
Biobase Pathological Tissue Embedding Center
Biobase Pathological Tissue Embedding Center
1 / 5
Biobase Pathological Tissue Embedding Center
Biobase Pathological Tissue Embedding Center
Biobase Pathological Tissue Embedding Center
Biobase Pathological Tissue Embedding Center
Biobase Pathological Tissue Embedding Center

Biobase Pathological Tissue Embedding Center

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Years
Send Inquiry

Product Description

📊
Overview & Basic Info.
Model NO.
BK-TEI
Application
Industry, School, Lab
Customized
Non-Customized
Certification
CE
Structure
Desktop
Material
Stainless Steel
Type
Display Cooler
Temp. Range
55~70ºC
Consumption
650W
Material of Work
Granite, Easy to Clean
Power Supply
AC110/220V±10%, 50/60Hz
Temp. Precision
±1%
Control
Microprocessor Control
Gross Weight
41kg
Paraffin Chamber
3L
📝
Product Description

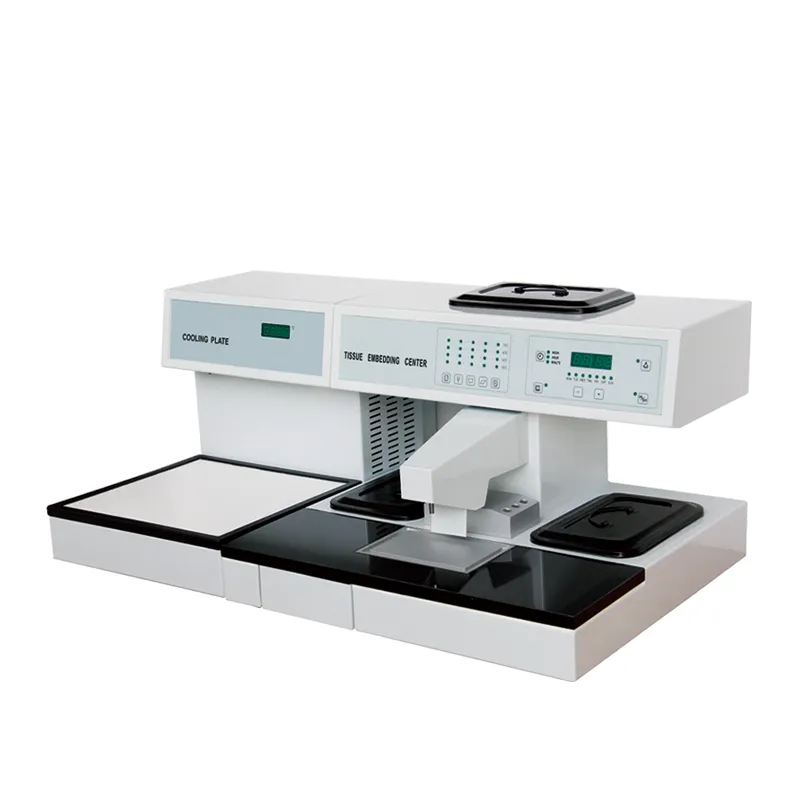

Pathological Tissue Embedding Center
  • Microprocessor Control for temperature, high precision reliability.
  • Modular Design: Embedding Module and Cryo Module can be assembled freely based on lab needs.
  • Flexible heating mechanism with Dual-protection; Safe, Reliable and Energy-Saving.
  • Fully programmable computer controls allow automatic system start and stop anytime within a week.
  • Automatic Memory and Restoration: Preset temperature data are automatically stored after start.

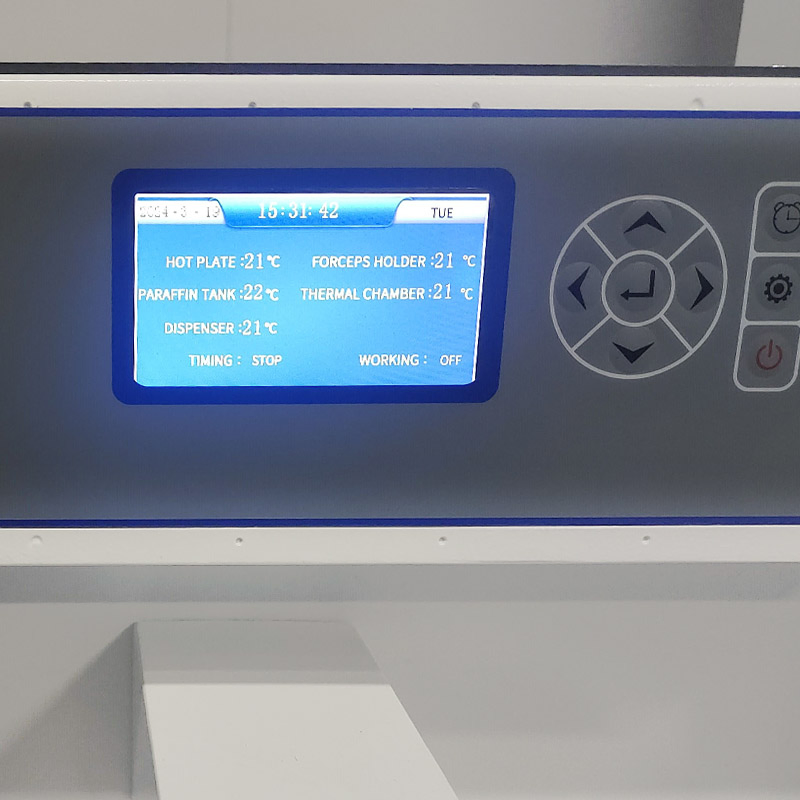

  • Individual Control: Paraffin Chamber, Dispenser, Thermal Storage Compartments, and Heating Plate are individually controlled.
⚙️
Product Parameters
ModelBK-TEI
Paraffin Chamber Capacity3L
Temp. Range55~70ºC (Forceps Wells, Melting Chamber, Thermal Storage, Working Areas, Dispenser)
Temp. Precision±1%
Work Table MaterialGranite, easy to clean
Flow ControlFinger touch plate and optional foot pedal
Consumption650W
External Size (W*D*H)525*550*385mm
Gross Weight41kg
Optional AccessoryBK-CPI Cooling Plate
BK-CPI Gross Weight37kg
🏢
Facility & Production
Production Facility 1
Production Facility 2
Production Facility 3
Production Facility 4
Production Facility 5
Production Facility 6
🛠️
After Sales Service
Service Support
✉️
Inquiry Support
Inquiry Information
Frequently Asked Questions
What is the temperature range of the BK-TEI embedding center?
The temperature range is adjustable from 55ºC to 70ºC for various areas including the paraffin chamber, dispenser, and working plates.
Can the embedding and cooling modules be used separately?
Yes, the modular design allows the Embedding Module and Cryo Module (Cooling Plate) to be assembled freely or configured according to your lab space.
How is the paraffin flow controlled?
The system features a finger touch plate for manual control and includes an optional foot pedal for hands-free operation.
What material is used for the working table?
The working area is made of high-quality granite, which is durable, maintains stable heat, and is very easy to clean.
Does the system support automatic scheduling?
Yes, the fully programmable microprocessor allows for automatic system start and stop settings at any time within a 7-day week.
What are the power requirements for this model?
The unit is compatible with AC110V or 220V (±10%) at 50/60Hz, making it suitable for global power standards.
