Disposable Ptca Balloon Dilatation Catheter

1 / 5

Disposable Ptca Balloon Dilatation Catheter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

HPL-134

Sterilization

Ethylene Oxide (EO)

Guarantee Period

Two Years

Group

Adult

Classification

Class III

Certificate

CE/ISO

MOQ

100PCS

HS Code

9018390000

Capacity

500,000 PCS/Month

📄

Product Description

Disposable Medical PTCA Balloon Dilatation Catheter

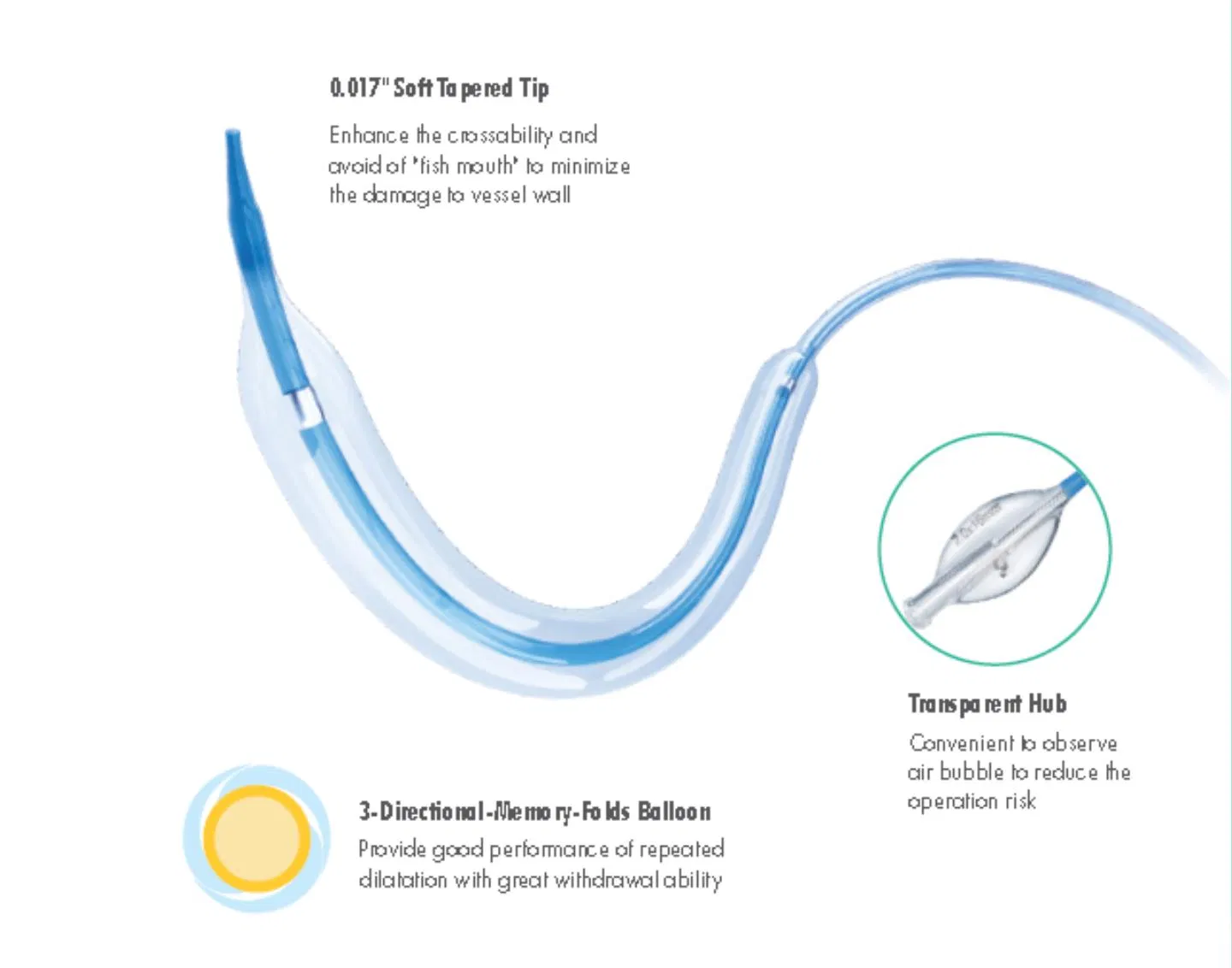

Crossability: 0.017'' small tip profile for excellent crossability through tight lesions.
Vessel Safety: Soft tapered tip provides outstanding ability to encircle the guidewire, minimizing vessel injury.
Smooth Delivery: Stable optimized lubricious hydrophilic coating for low-friction advancement.
Risk Reduction: Transparent hub allows for convenient observation of air bubbles, reducing operation risks.
Enhanced Pushability: Excellent smooth transition between hub and proximal shaft designed for superior torque transfer.

⚙️

Technical Parameters

Catheter Design	Rapid Exchange (Rx)
Balloon Compliance	Semi-compliant
Markers	2 Swaged Platinum Markers
Material	Nylon 12
Nominal Pressure	1.5-3.0mm: 8atm; 3.5-4.0mm: 6atm
Rated Burst Pressure	1.5-3.5mm: 16atm; 4.0mm: 14atm
Distal Shaft (OD)	2.8Fr (0.93mm)
Proximal Shaft (OD)	2.3Fr (0.77mm)
Usable Length	135cm
Guidewire Compatibility	0.014'' (0.36mm)

📐

Available Specifications

Type	Length (mm)	Outer Diameter (mm)
Standard / High-Pressure	11, 14, 17, 18, 20, 22, 23, 26, 30	1.5, 1.75, 2.0, 2.5, 2.75, 3.0, 3.5, 4.0

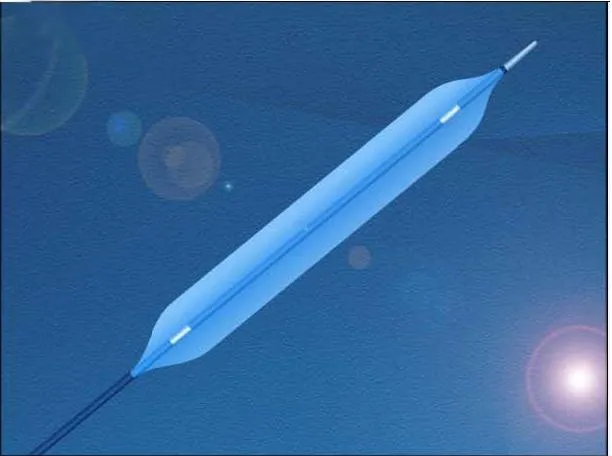

Disposable PTCA Balloon Dilatation Catheter Detail 1

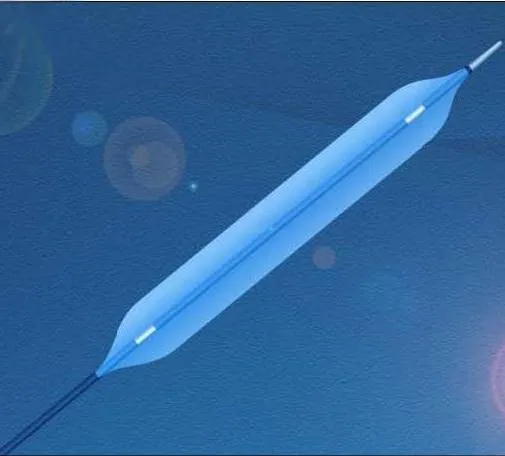

Disposable PTCA Balloon Dilatation Catheter Detail 2

Frequently Asked Questions

Q1: What is the primary use of the PTCA Balloon Catheter? A: It is designed for Percutaneous Transluminal Coronary Angioplasty (PTCA) to dilate narrowed or obstructed coronary arteries.

Q2: What material is used for the balloon? A: The balloon is made of high-quality Nylon 12, providing semi-compliant performance and reliability.

Q3: How is the catheter sterilized? A: The catheters are sterilized using Ethylene Oxide (EO) to ensure medical-grade safety and sterility.

Q4: What size guidewire is compatible with this device? A: It is compatible with standard 0.014'' (0.36mm) guidewires.

Q5: What is the shelf life of this medical device? A: The product comes with a two-year quality guarantee period from the date of manufacture.

Q6: Does the catheter feature markers for visibility? A: Yes, it includes two swaged platinum markers to provide excellent radiopacity during fluoroscopy.
