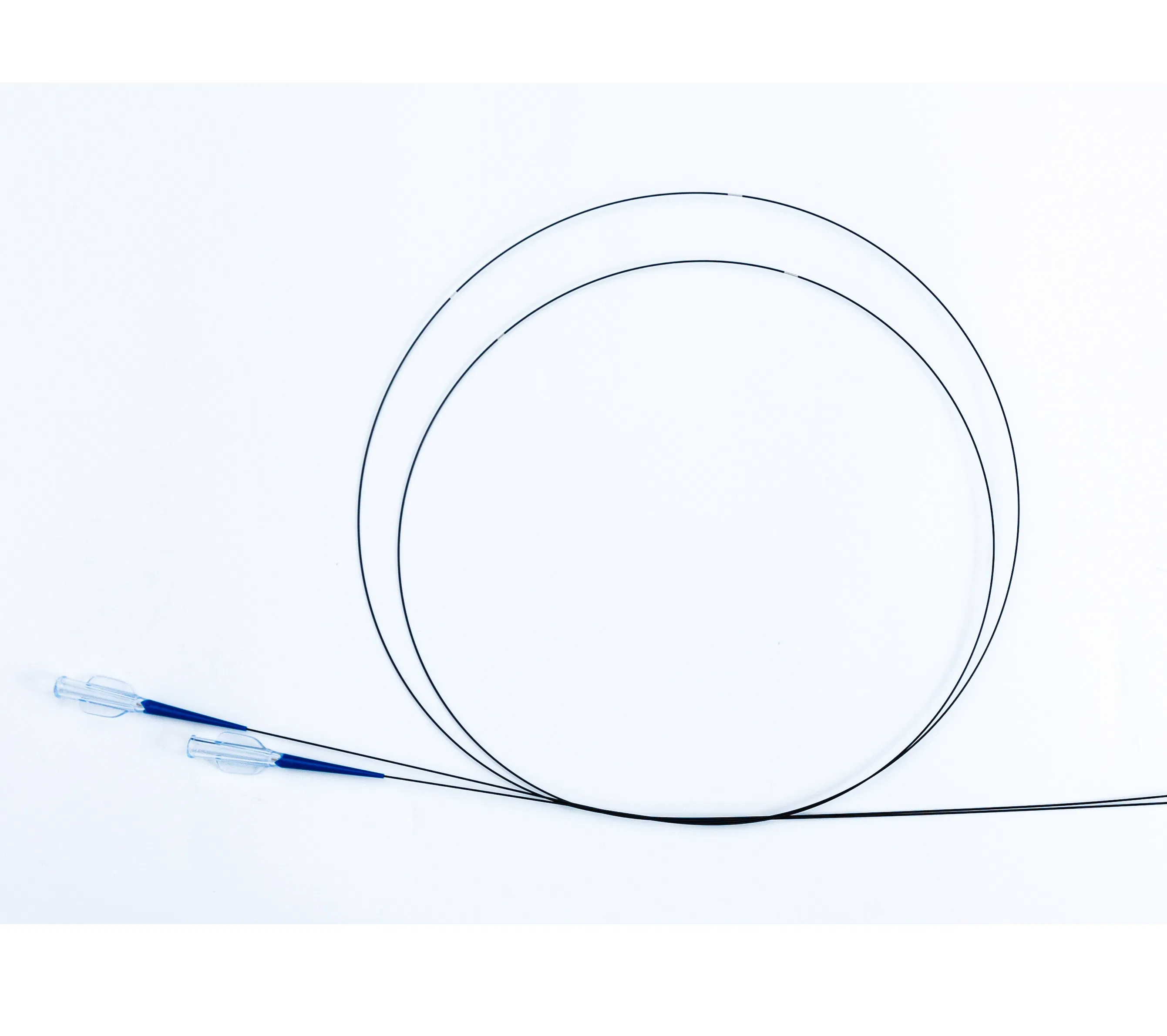

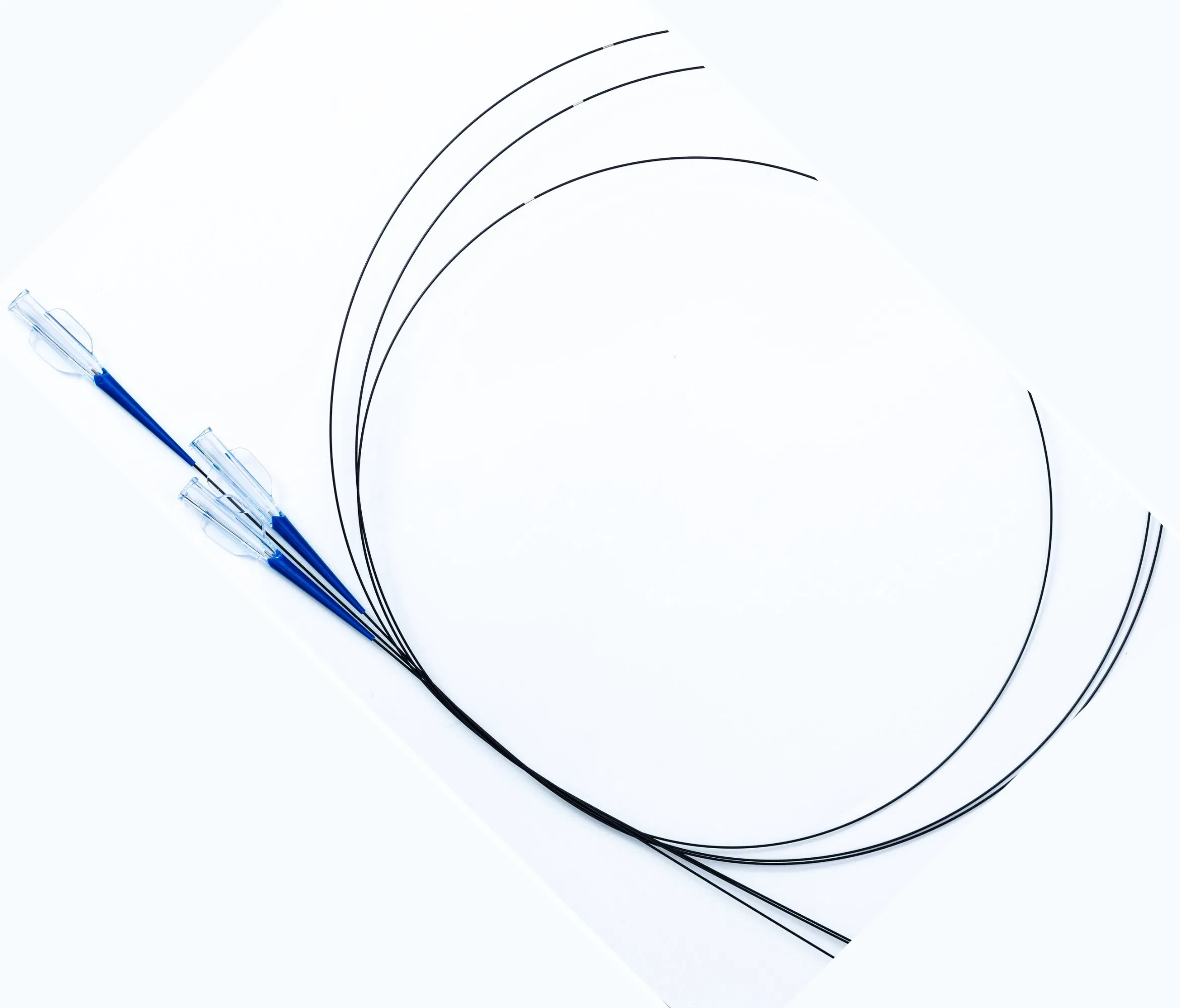

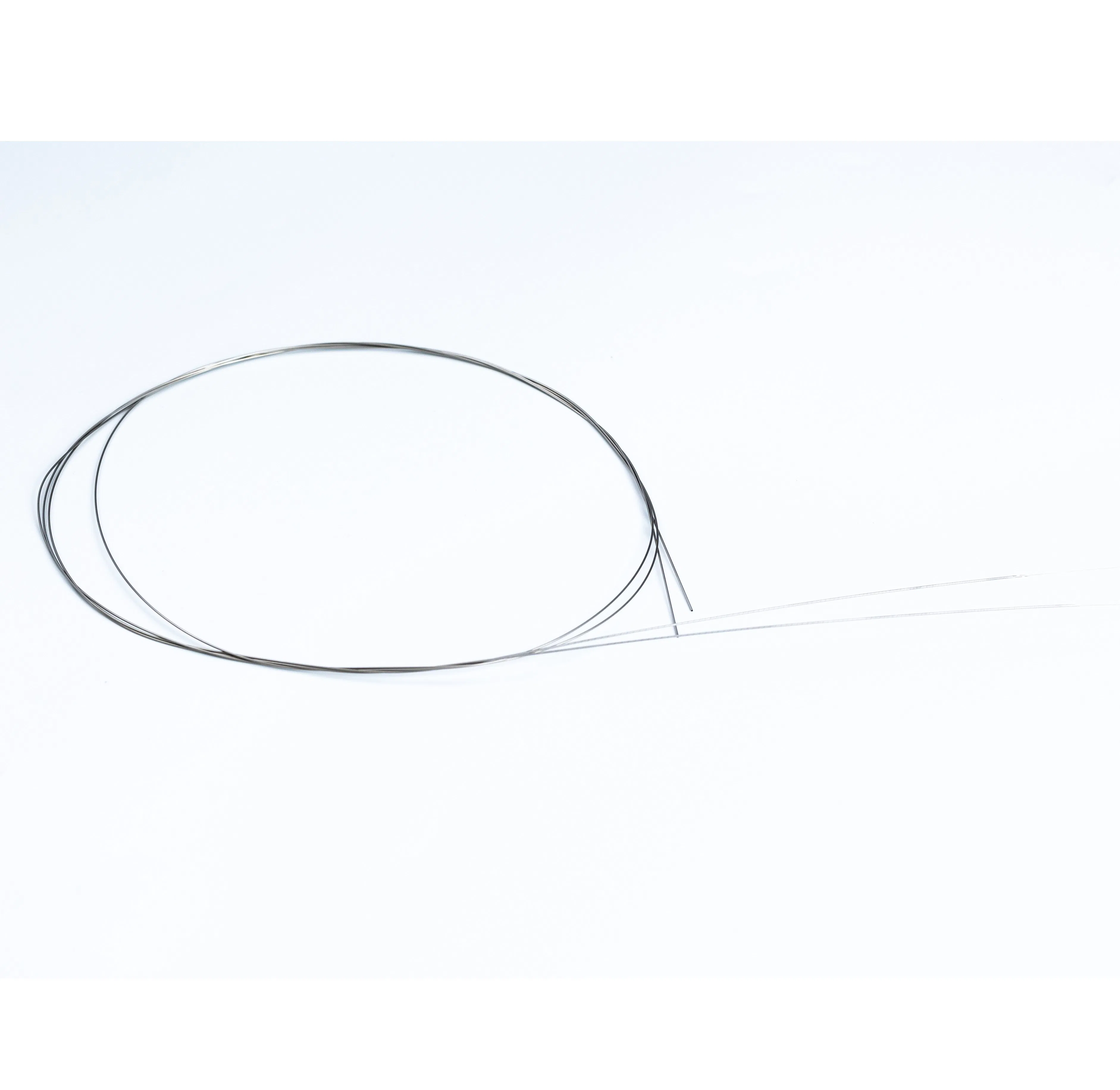

Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube
Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube
Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube
Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube
Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube
1 / 5
Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube
Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube
Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube
Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube
Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube

Third Type of Medical Intervention with Flexible to Customized Distal Type of Finished Hypotube

Customization: Available
OEM: Accept OEM
Tolerance: +/-0.002mm
Send Inquiry

Product Description

Basic Information
Model NO.FB10279
Approval ScopeClass III
SampleNegotiation
ColorBlack
MaterialStainless Steel, Ni-Ti Pipe
Laser MarkingCustomized
Diameter0.2-1.5mm (Customized)
Length300-2100 (Customized)
Thickness0.03-0.18 (Customized)
Coating Thickness0.55-1.5 mm (Customized)
Surface RoughnessLess Than 0.02mm
Inner SurfaceLess Than 0.06mm
CertificationISO13485
Production CapacityMore Than 50,000 Pcs/Year
Product Description
Hypotubes provide essential performance characteristics that enable access and delivery within the vasculature. It can provide performance including folding, push, torque and so on.
A hypotube is a long metal capillary that is an important component of a minimally invasive catheter that is used in conjunction with a balloon and stent to open an arterial blockage. The balloon portion of the catheter is attached to the distal hypotube. The hypotube enters the body and pushes the balloon along the long, tortuous blood vessel toward the blockage of the artery. In this process, our hypotubes are kink-resistant, bend-resistant, and can smoothly move through the human body structure, tracking, and turning.
Product Specifications:
• Outside Diameter: 0.3-5mm
• Inner Diameter: 0.1-3mm
• Longest Length: 3m
• Processing Accuracy: ±0.002mm
Raw Materials: Medical grade stainless steel 304L / Nitinol cut pipe / PTFE-coated core wire.

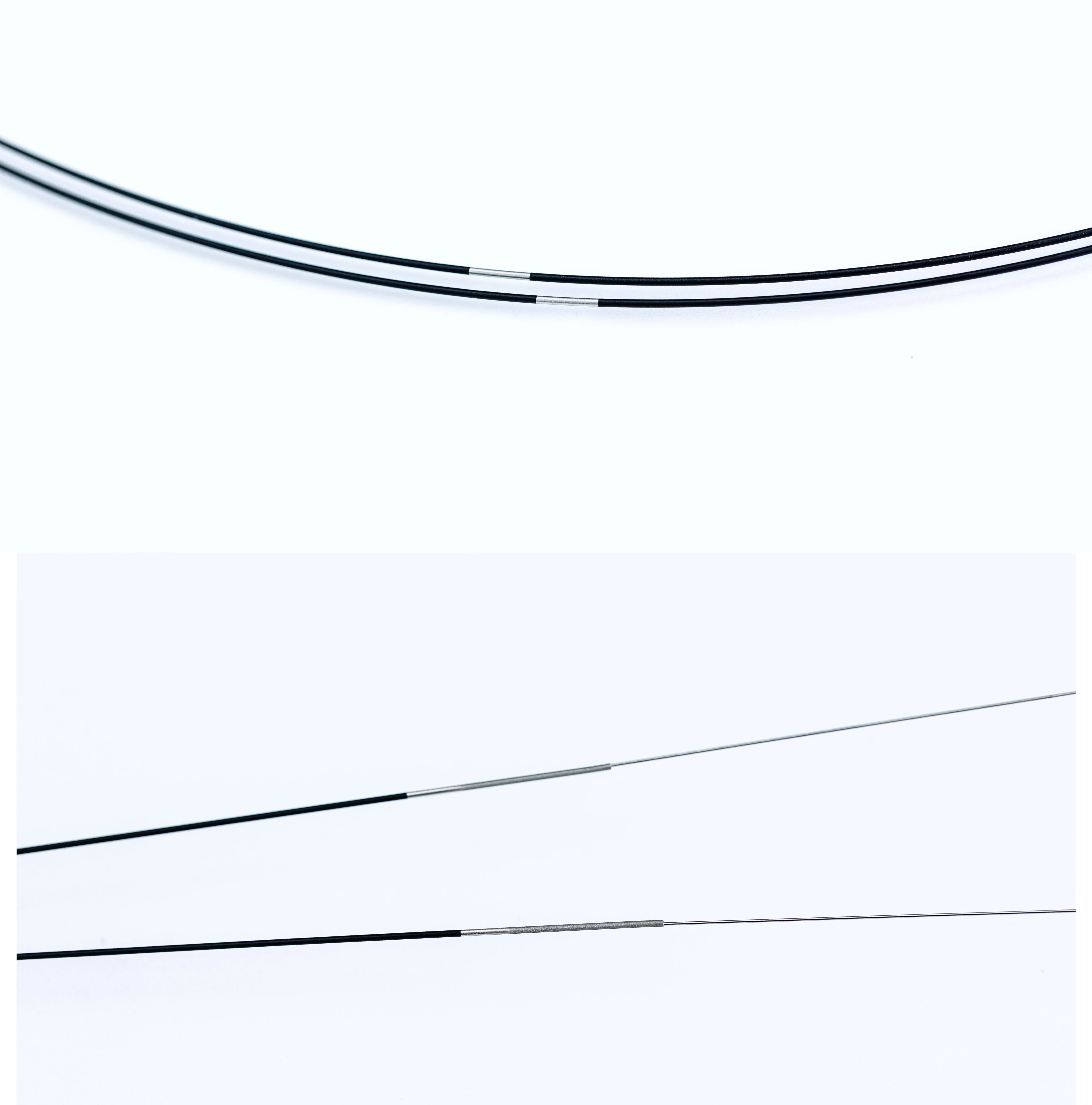

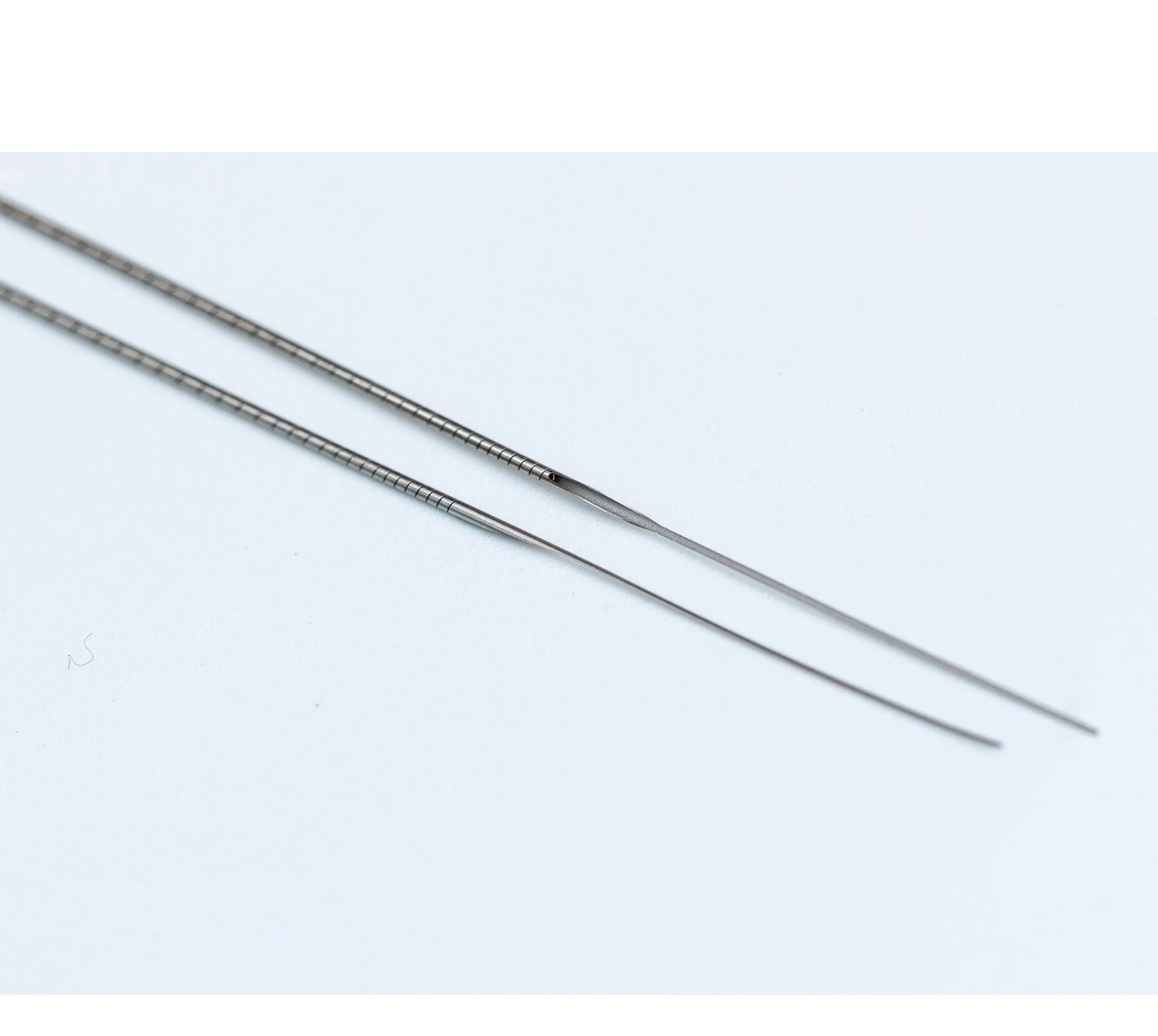

The product is welded from Nitinol cut pipe and PTFE-coated core wire. The nickel-titanium alloy cutting tube at the distal end can effectively transmit the twisting force to the distal end, and the proximal PTFE coating can enhance the tracking and controllability of the guide wire in the microcatheter.
Manufacturing Capacity
Distal Transition Zone Surface Treatment Marking Tape Performance
Spiral cutting PTFE coating (customizable) Inkjet marking Kink & Bending resistance
Ramp cutting Parylene coating Laser marking Tensile strength
Welding wire Sandblasting treatment Laser texture Kink value 3-point bending
Grinding Passivation treatment Optical fiber marking Rigidity & Toughness
Product Advantages
  • Flexible customization: Welding reinforcing wire, laser spiral/bevel cutting, variable diameter grinding, etc.
  • Mature PTFE coating process: Meets diverse appearance and performance requirements.
  • High lubricity and good adhesion: Optimized for folding, push, and torque performance.
  • Professional service: Active communication and responsive technical support.
Application Areas
This product is widely used in balloon fields, delivery systems, complex catheters, and other medical interventional fields.

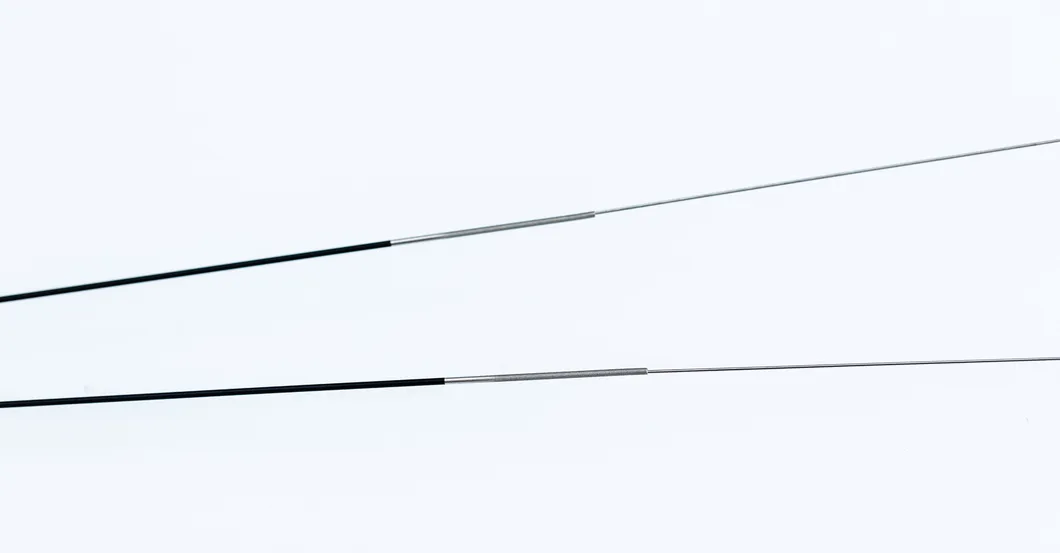

Hypotube Type 1

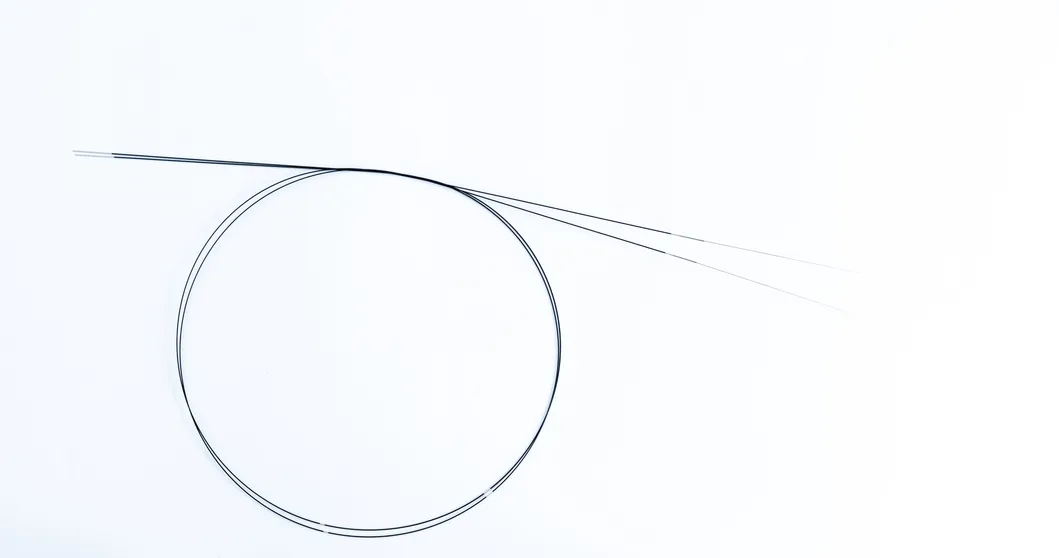

Hypotube Type 2

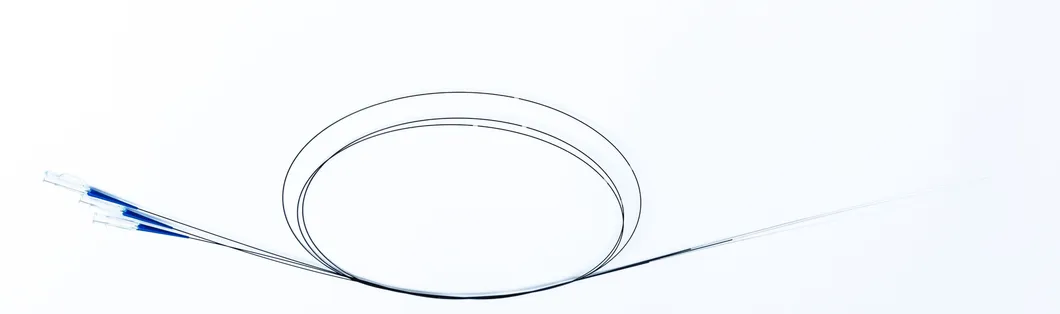

Hypotube Type 3
Workshop & Facility Show
Advanced processing facilities include more than 5,000 square meters of workshop area, featuring ISO 13485 certified quality systems and a 10,000-level purification workshop.
Grinding workshop

Grinding Workshop

Parylene coating workshop

Parylene Coating Workshop

Laser cutting workshop

Laser Cutting Workshop

Marking workshop

Marking Workshop

Inspection workshop

Inspection Workshop

Purification workshop

10,000 Level Purification Workshop

Events & Culture
Celebration 1
Celebration 2
Celebration 3
Frequently Asked Questions
1. What business scopes does the company cover? Our business covers interventional implantable metal consumables, coated mandrels, miniature parts processing, neurointerventional core wires, PTFE/Parylene coated guide wires, Hypotube cutting, and guide wire OEM services.

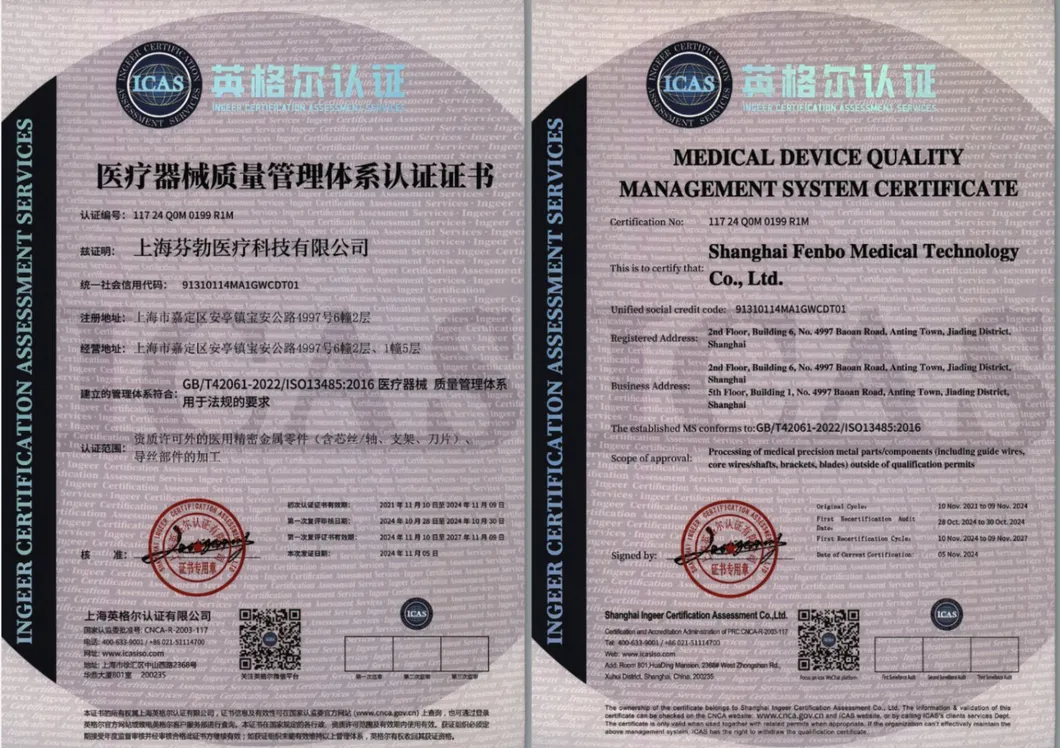

2. Which quality certifications do you hold? We have obtained the ISO 13485:2016 quality management system certificate.
3. What are the standard payment terms? Standard terms require full payment in advance.
4. Are drawings required for a quotation? Yes, for customized products, we require either technical drawings or prototypes to ensure manufacturing accuracy.
5. Can we sign an NDA to protect our design? Absolutely. We value intellectual property and can sign a Non-Disclosure Agreement (NDA) to keep your designs confidential.
6. What is the maximum processing length for a Hypotube? Our processing capacity allows for a maximum length of up to 3 meters with accuracy up to ±0.002mm.
