Hemodialysis Machine in Nephrology Dept

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Device Type

Human Blood Processor

Attribute

Department of Nephrology

Place of Use

Hospitals, Clinics and Emergency Centers

Transport Package

Wooden Carton

Specification

142cm x 49cm x 51cm

Origin

China

HS Code

9018904000

Production Capacity

1000 units/Month

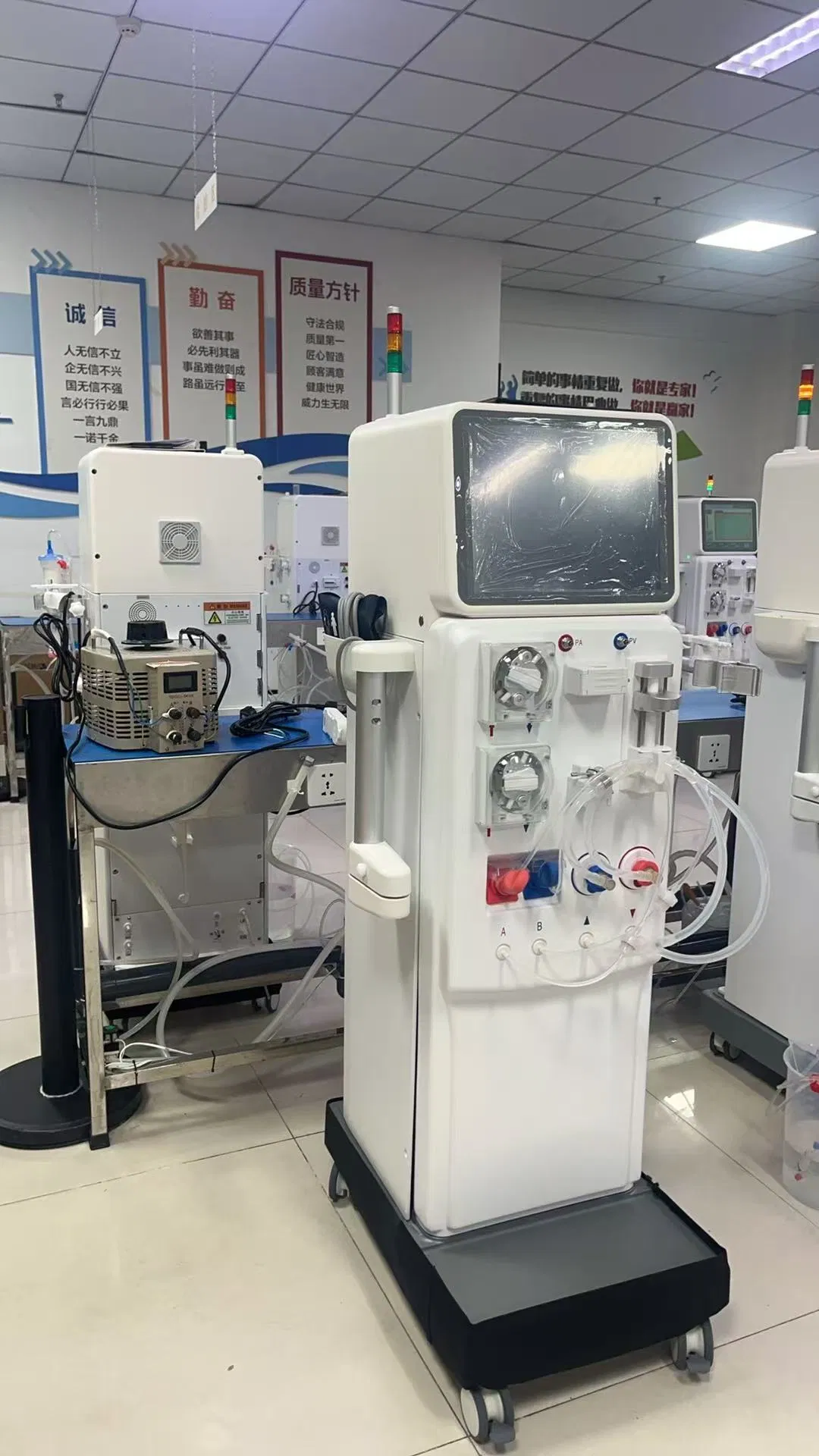

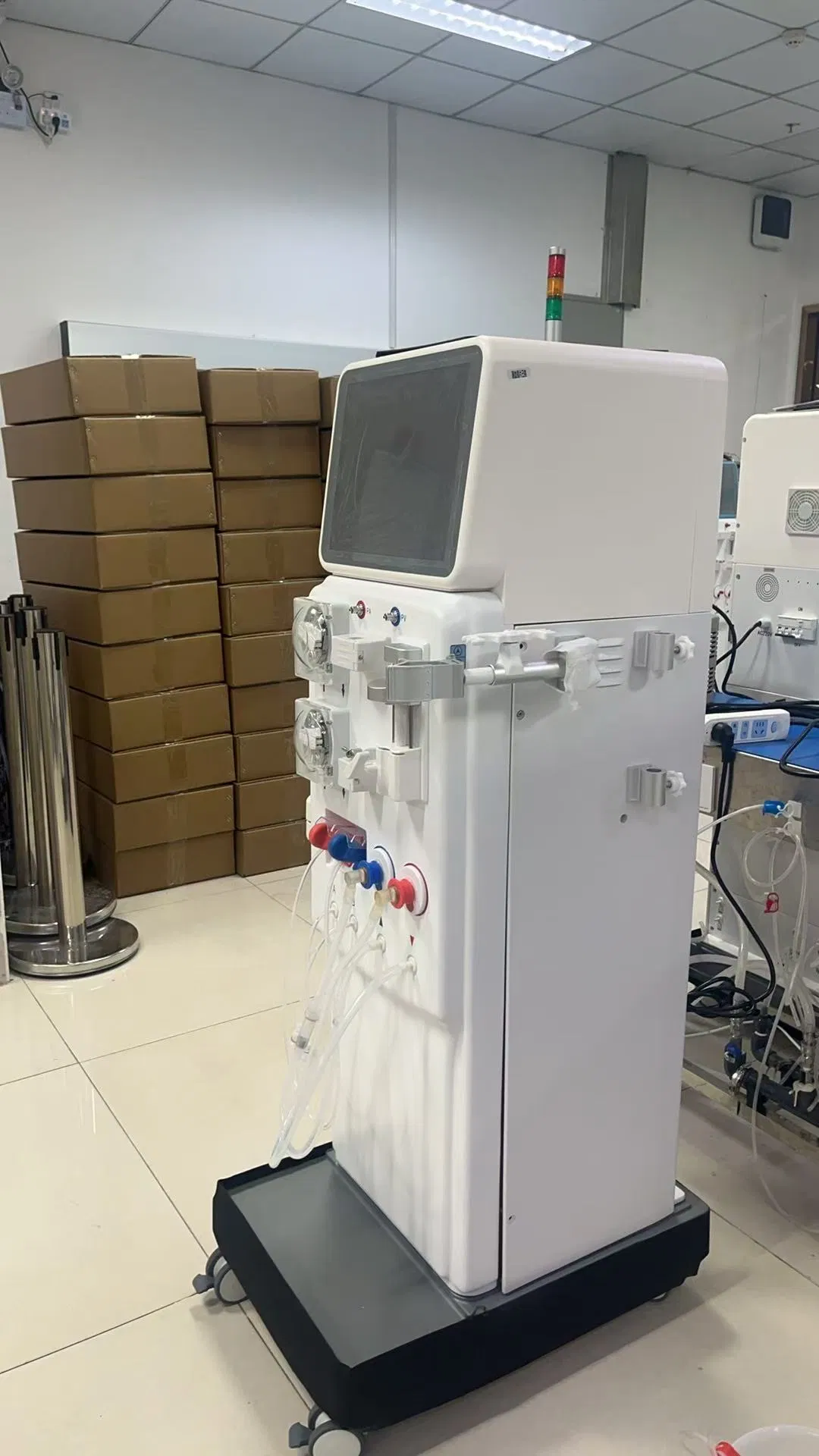

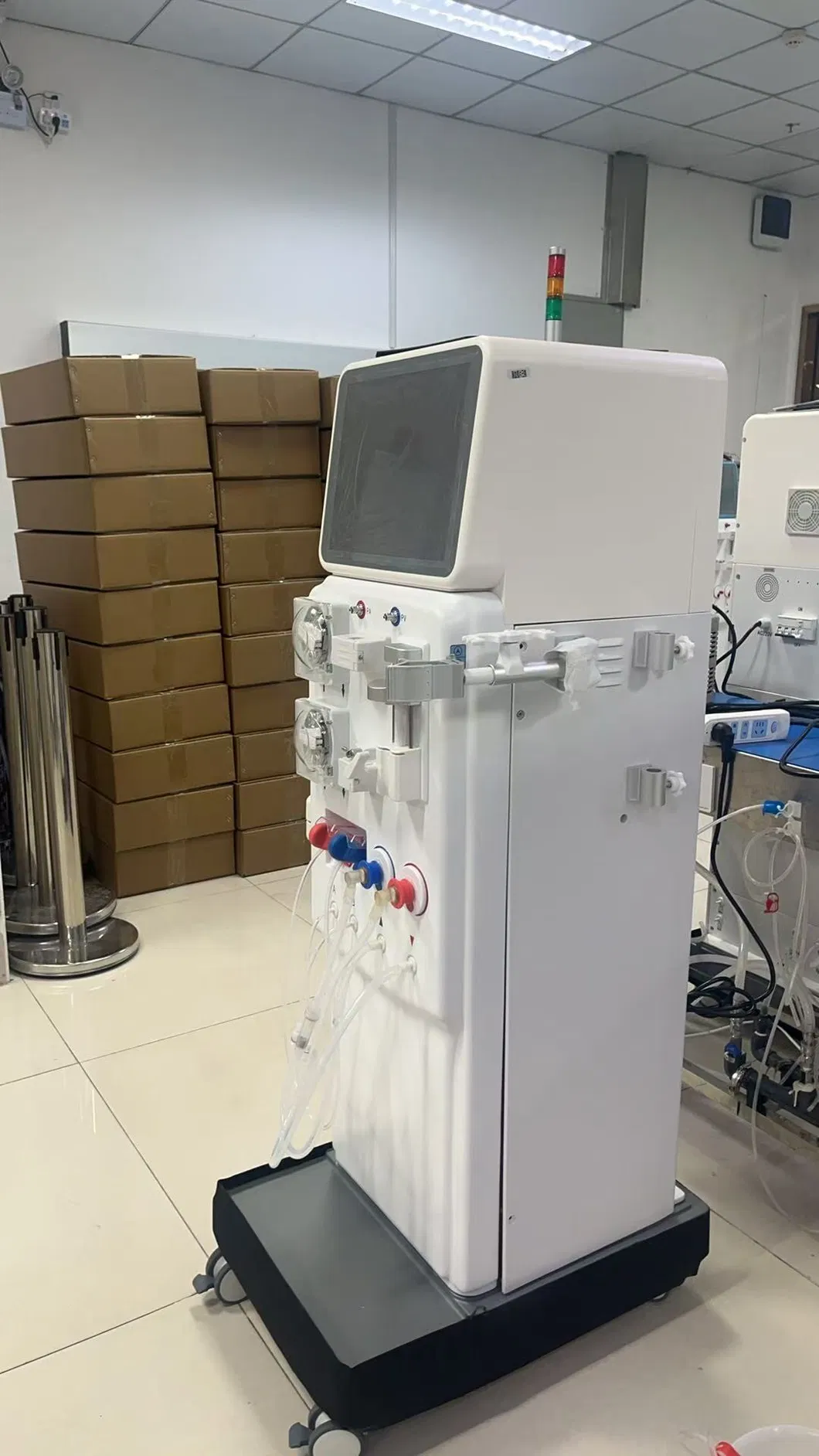

Haemodialysis Machine W-T2008-B (HD)

Certification: With CE Certificate, IEC60601

◈ 15-inch LCD touch screen

◈ Double needle dialysis treatment

◈ Balance chamber + UF pump

◈ UF control system with sealed double volume balancing chamber

◈ 8 kinds of UF profiling for clinical requirements

◈ With Na, Bicarbonate and UF profiling

◈ Standby battery (supplies power for 30 minutes)

◈ Isolated UF function

◈ Suitable for low flux and high flux dialyzer

◈ Automatic self-checking function

Technical Data

Model	W-T2008-B
Dimensions (HWL)	142cm x 49cm x 51cm
Floor Area	65*45cm²
Weight	Approx. 80KG
Input Power	1500W
Circuit Voltage	100-240Vac
Water Inlet Pressure	0.1Mpa~0.6Mpa (15P.S.I~60P.S.I)
Water Inlet Temp	5ºC~30ºC
Working Env	10ºC~30ºC (Rel. humidity <=70%)

Disinfection & Sanitize Protocols

1. Hot Disinfection
30 mins; ~80ºC; Flow rate 500ml/min

2. Chemical Disinfection
30 mins; 36ºC~50ºC; Flow rate 500ml/min

3. Chemical with Heat
45 mins; 36ºC~80ºC; Flow rate 50ml/min

4. Rinse
10 mins; ~37ºC; Flow rate 800ml/min

Detailed Parameters

Dialysis Fluid Flow	Selectable 300-800 mL/min
Temperature Range	Selectable 34.0ºC to 40.0ºC
Conductivity Range	12 to 16 mS/cm (Accuracy ±0.1 mS/cm)
Acid Concentration	Default 1+34; Range 125 to 150 mmol/L
Heparin Pump	0ml/h to 10ml/h; Syringe: 10, 20, 30, 50ml
Ultrafiltration Rate	0ml/h~4000ml/h (Accuracy ±1%)
Blood Leak Detector	Sensitivity ≤0.35 mL blood/min (HCT=32)

Optional Functions:

On-line BPM & Kt/V
Bi-cart Holder
Bacterial Filter Device
Patient Management Software System

Frequently Asked Questions

Q1: What are the primary settings for dialysis fluid flow? The W-T2008-B allows for a selectable dialysis fluid flow range between 300 and 800 mL/min to suit different clinical needs.

Q2: Does the machine include a backup power source? Yes, it is equipped with a standby battery that can supply continuous power for approximately 30 minutes in case of an outage.

Q3: Which dialyzers are compatible with this machine? The machine is highly versatile and suitable for both low flux and high flux dialyzers.

Q4: How does the ultrafiltration (UF) control system work? It utilizes a UF control system with a sealed double volume balancing chamber and offers 8 types of UF profiling for precise treatment.

Q5: What safety features are integrated into the system? The device includes an automatic self-checking function, a blood leak detector with high sensitivity (≤0.35 mL blood/min), and multiple disinfection modes.

Q6: What is the display interface size? The machine features a large 15-inch LCD touch screen for clear monitoring and easy operation by medical staff.
