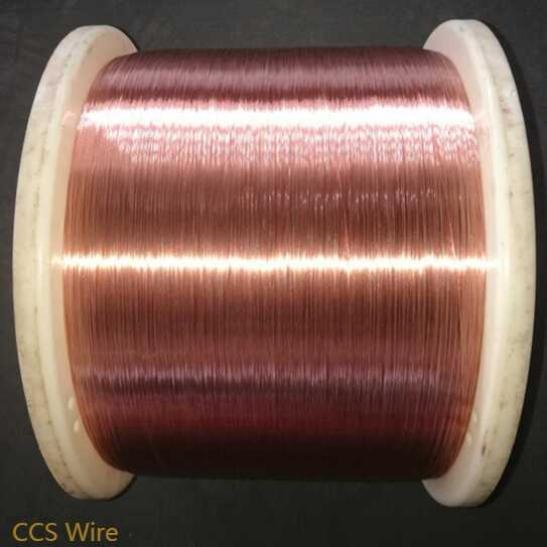

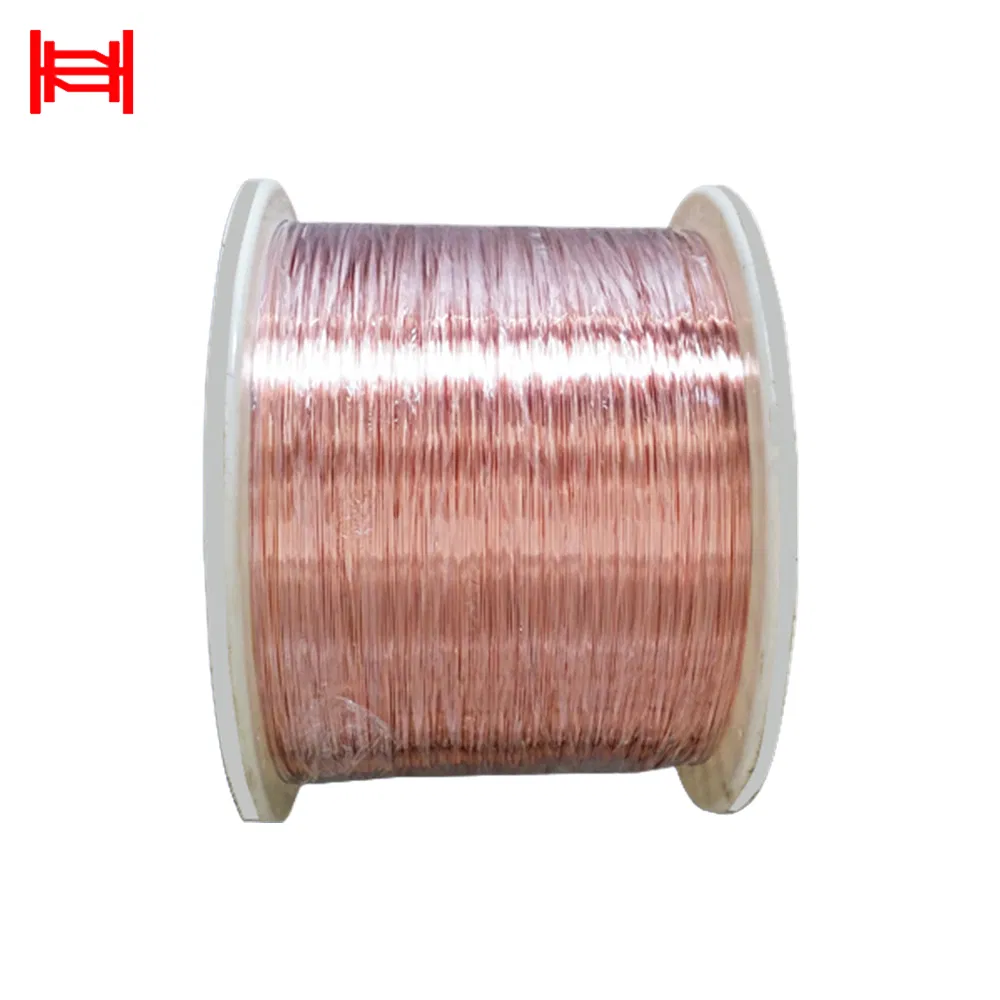

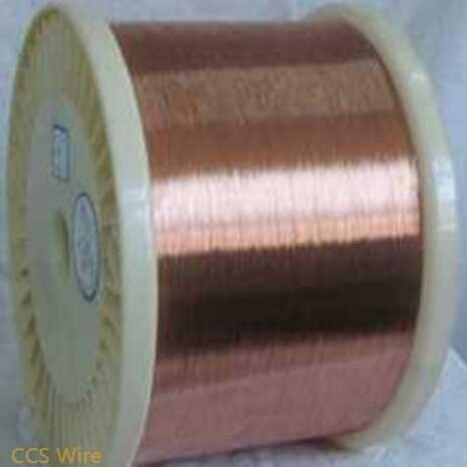

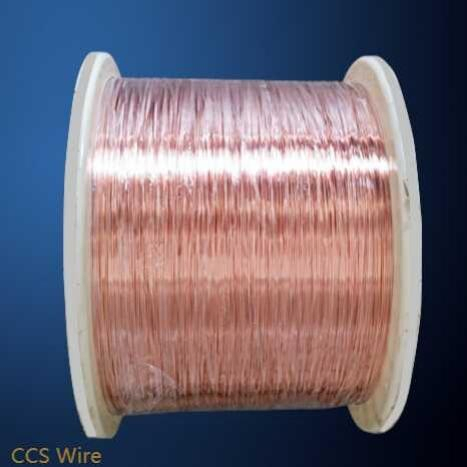

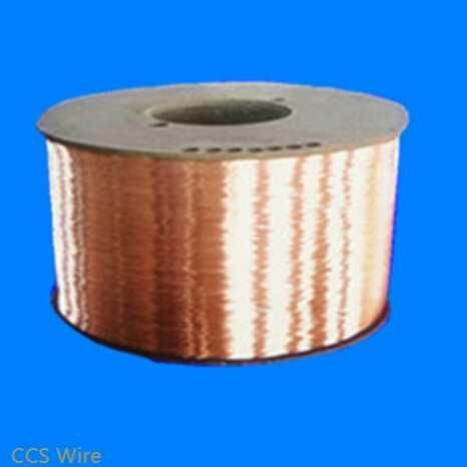

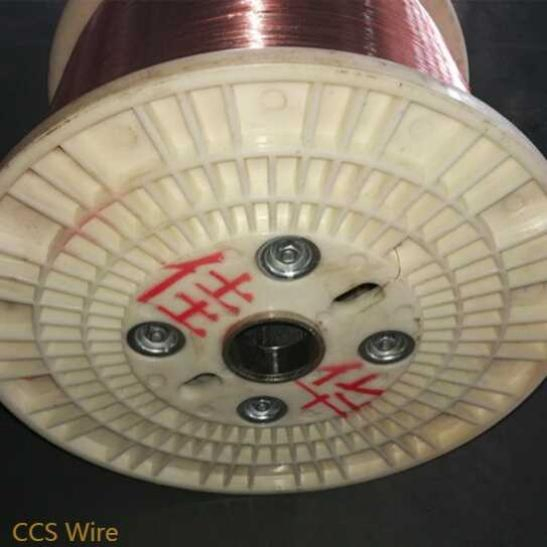

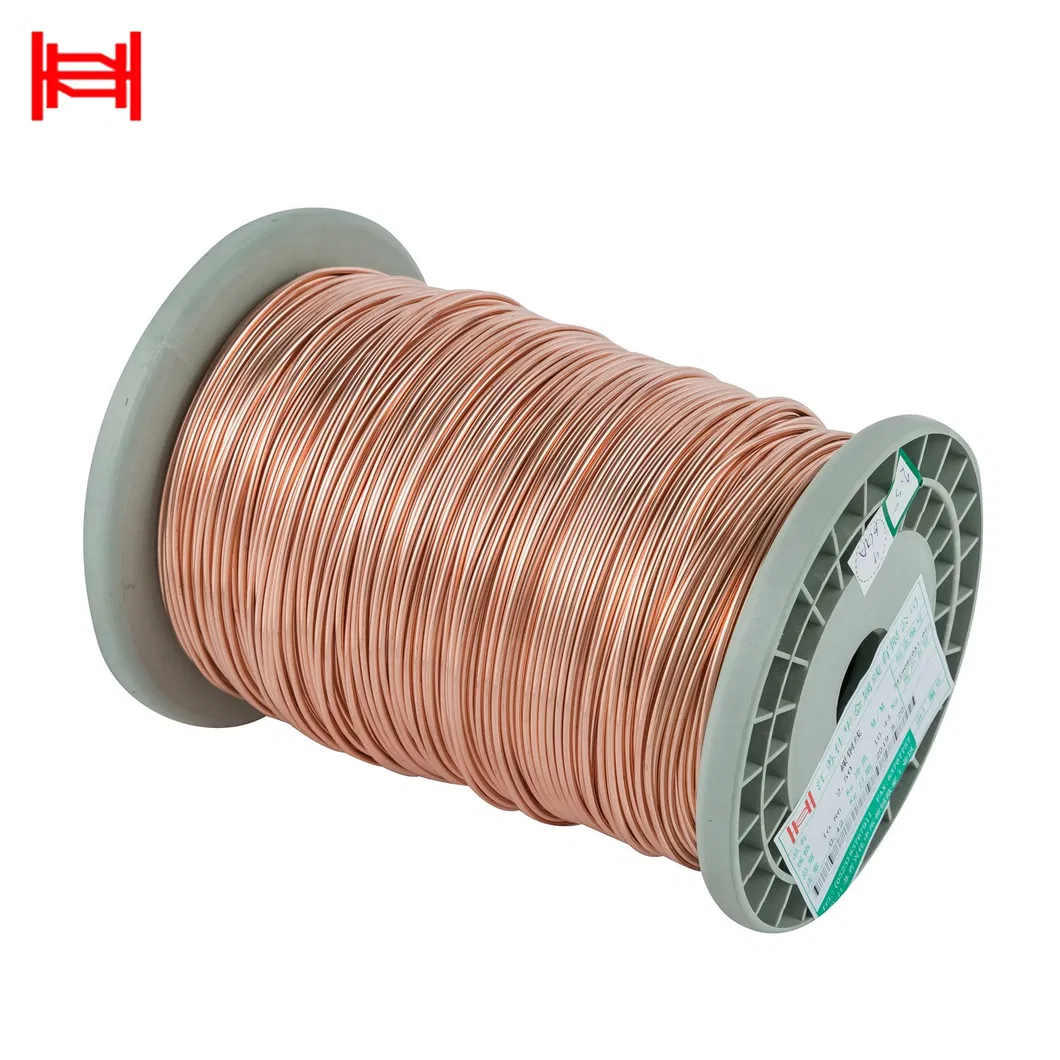

CCS wire can be divided into six types by conductivity: 15%CCS, 18%CCS, 21%CCS, 25%CCS, 30%CCS, 40%CCS. Available in two mechanical statuses: Annealed (A) and Hard drawn (H). Silver plated or tinned variations are available on demand.
| Nominal Conductivity (% IACS) | Nominal Density (g/cm3) | Max. Resistivity at 20ºC (Ω.mm2/m) | Min. Conductivity (% IACS) | Min. Tensile Strength (N/mm2) | Min. Copper Thickness (% of Dia) | Nominal Copper Thickness |
|---|---|---|---|---|---|---|
| 21 | 7.99 | 0.0907 | 19.00 | 345 ~ 825 | 1.5 | 3% |
| 30 | 8.15 | 0.0586 | 29.41 | 310 ~ 760 | 3.0 | 7% |
| 40 | 8.24 | 0.0440 | 39.21 | 276 ~ 600 | 5.0 | 9% |
| 70 | 8.58 | 0.0265 | 65.00 | 241 ~ 400 | 15.0 | 20% |

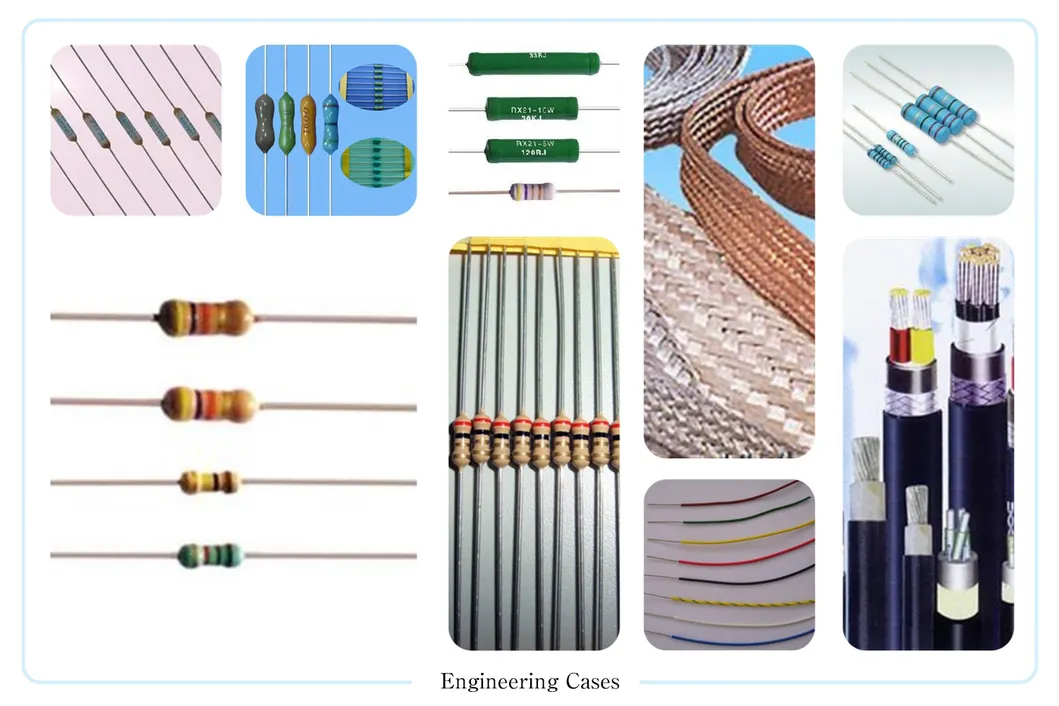

Widely used in carbon film resistors, metal film resistors, fuse resistors, wire-wound resistors, capacitors, jumper wires, inductors, transformers, diodes, high-temperature wires, marine cables, triple insulated wires, and flexible flat cables (FFC).
We implement ISO9001, ISO14001, and ISO45001 Management Systems. Our quality policy focuses on reasonable planning, standard management, and continuous improvement for sustainable development.

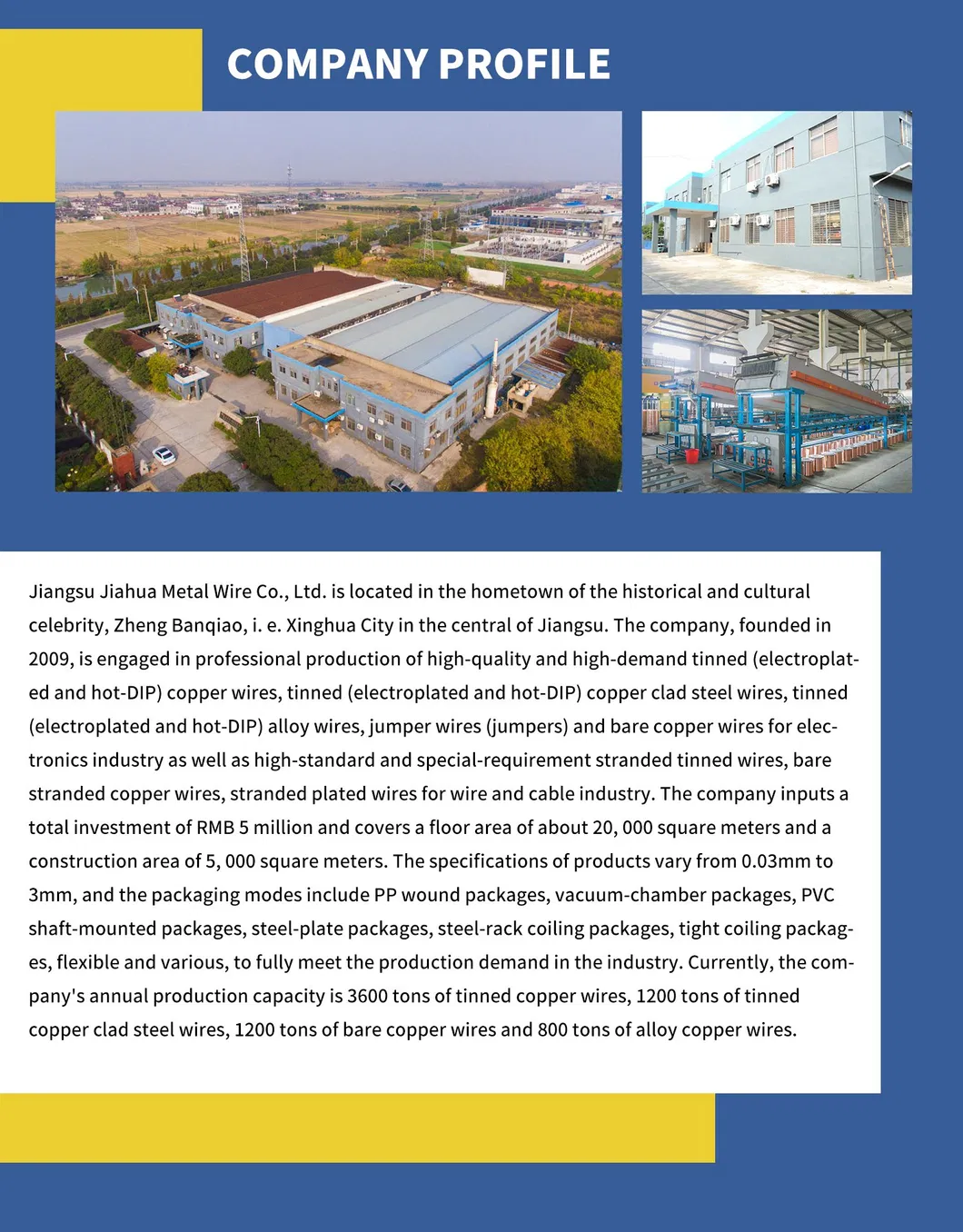

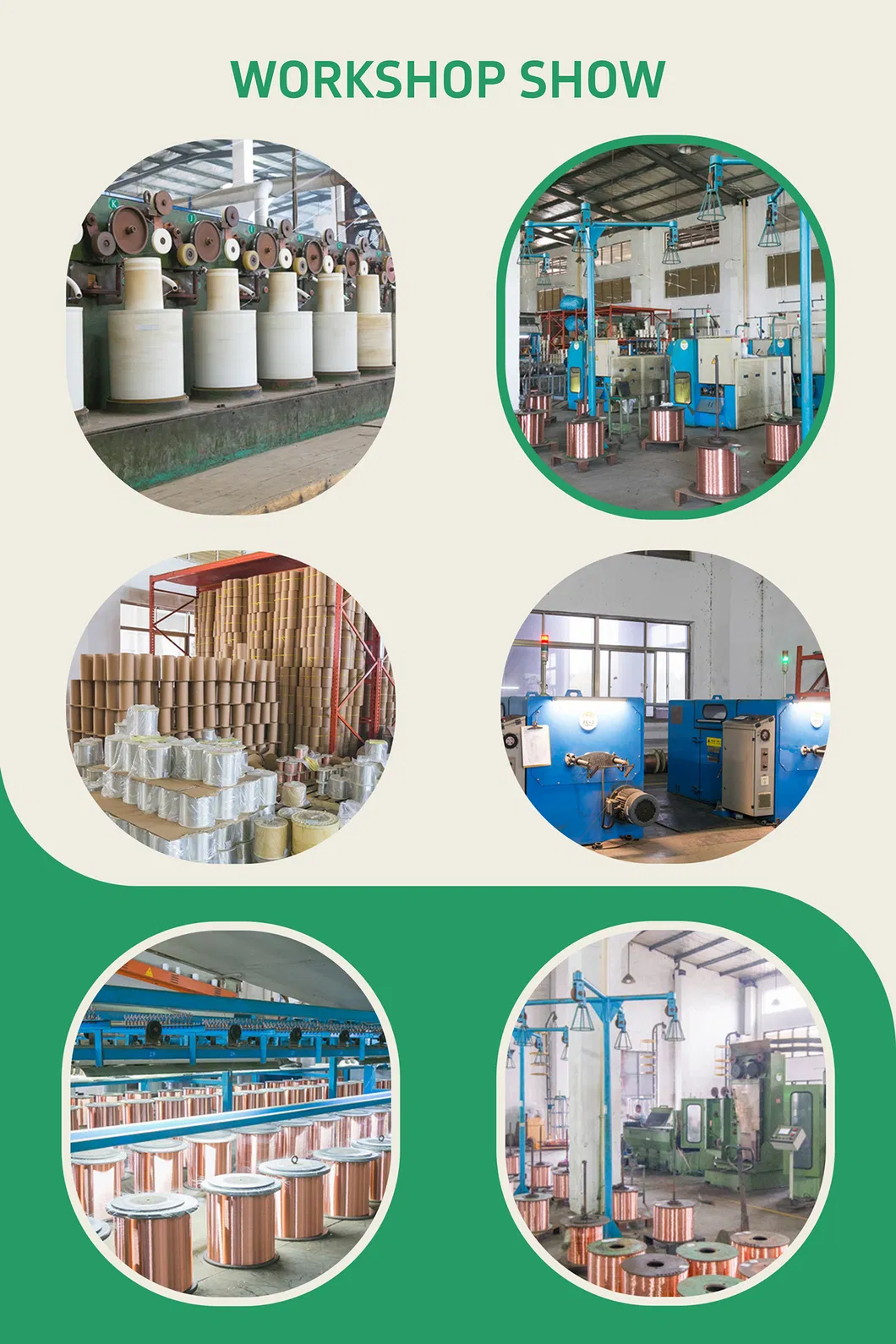

Our equipment is developed based on advanced technology from Japan, Taiwan, and Germany, combined with 20 years of experience to ensure excellence in oxidation resistance, wetting, and high-temperature stability.
Products are exported to the United States, Mexico, Brazil, Germany, France, Poland, Australia, South Korea, Japan, Southeast Asia, and the Middle East.

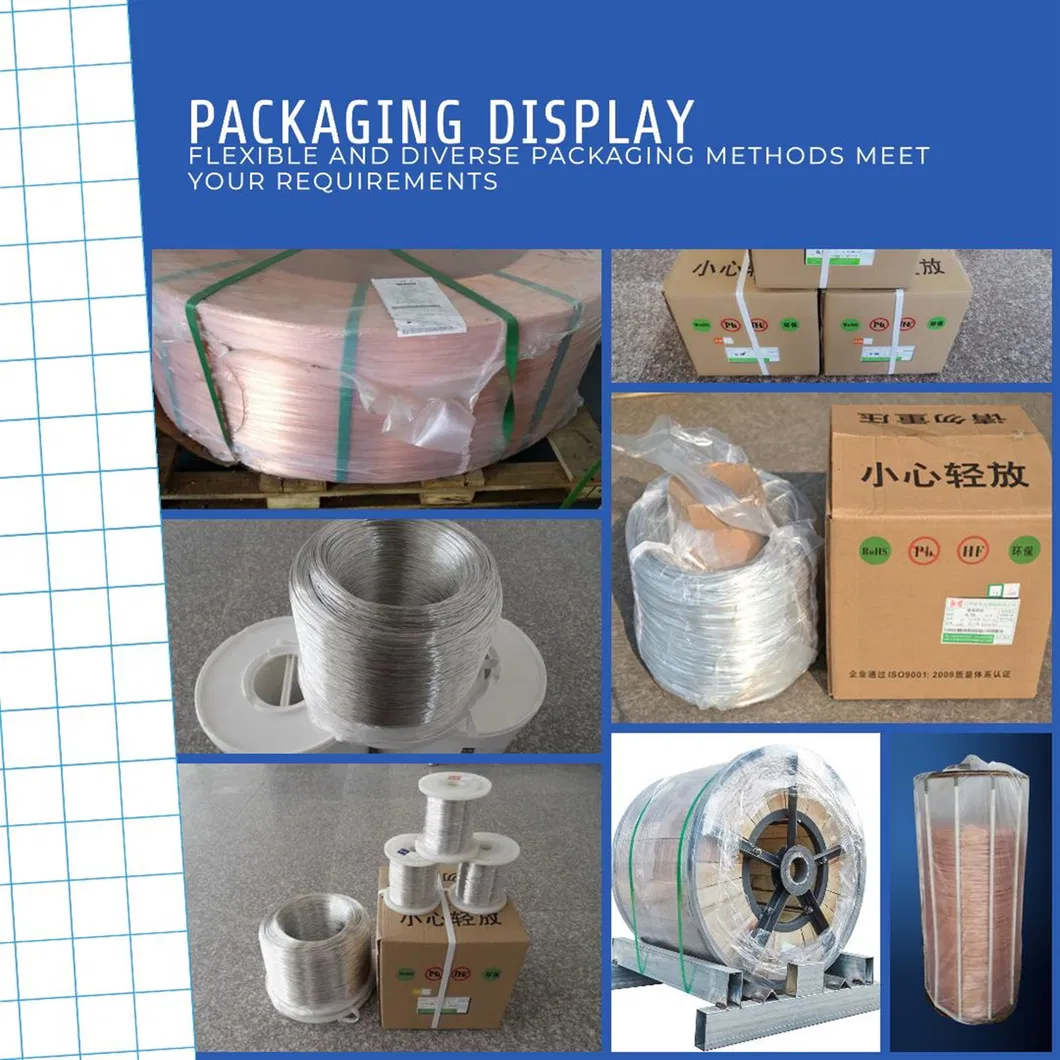

Flexible packaging options: PP barrel, carton vacuum packing, PVC shaft packing, iron tray packing, and tight closing packing to meet diverse customer needs.
