Product Description

Basic Information

Sterilization: Ethylene Oxide (EO)

Guarantee Period: 3 Years

Patient Group: Adult

Service: OEM / ODM Available

Specification: 130CM / 150CM

Origin: China

HS Code: 9018390000

Package: Sterile Package and Carton

Product Introduction

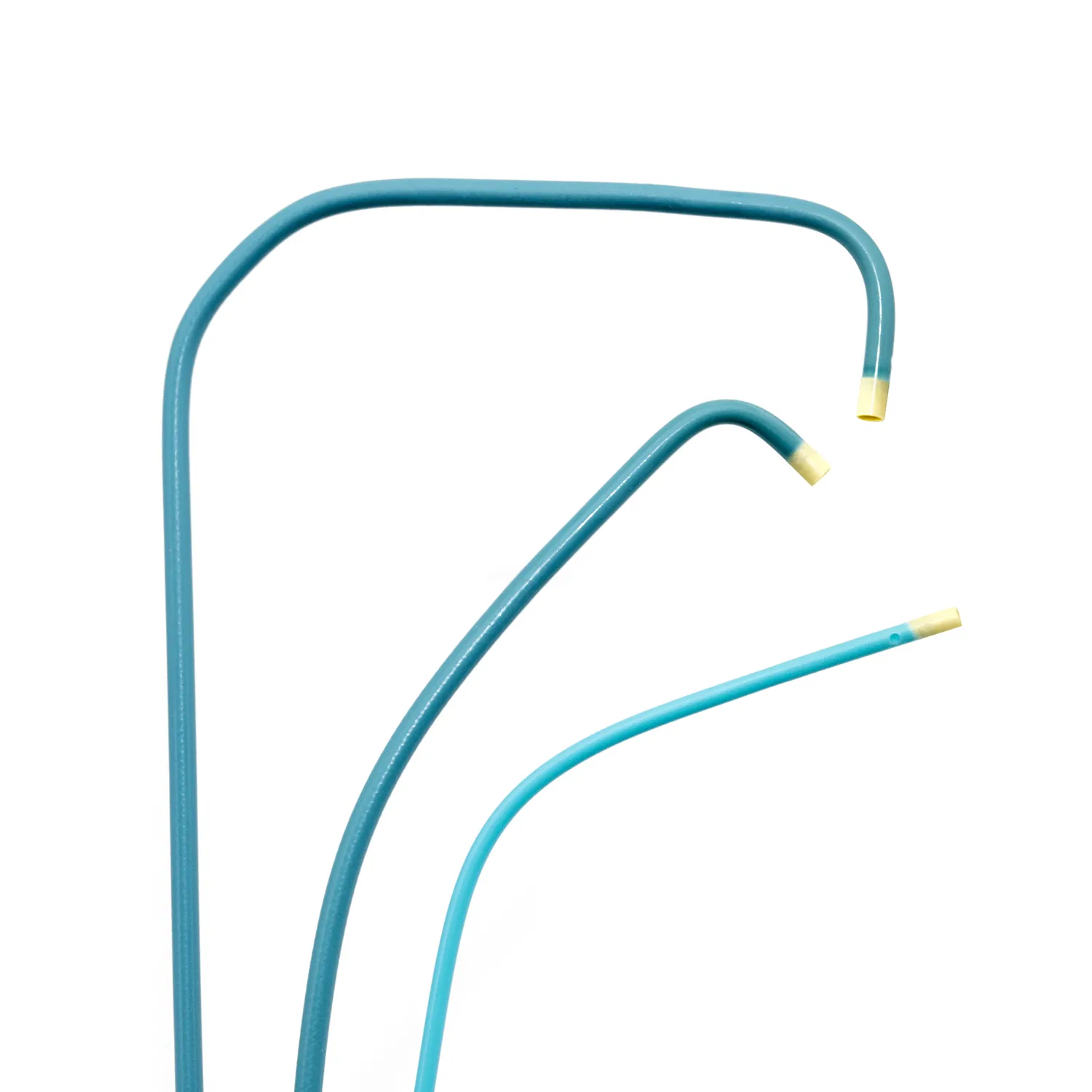

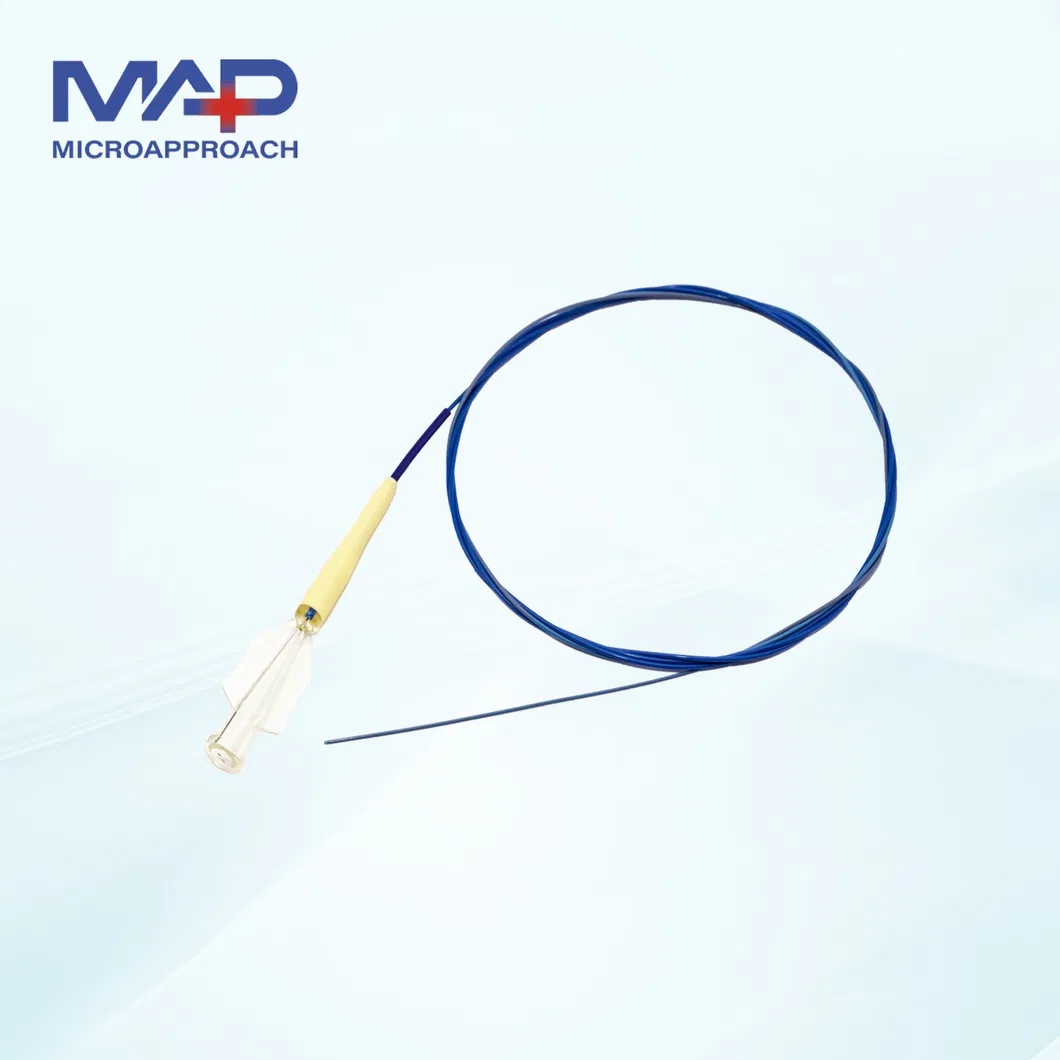

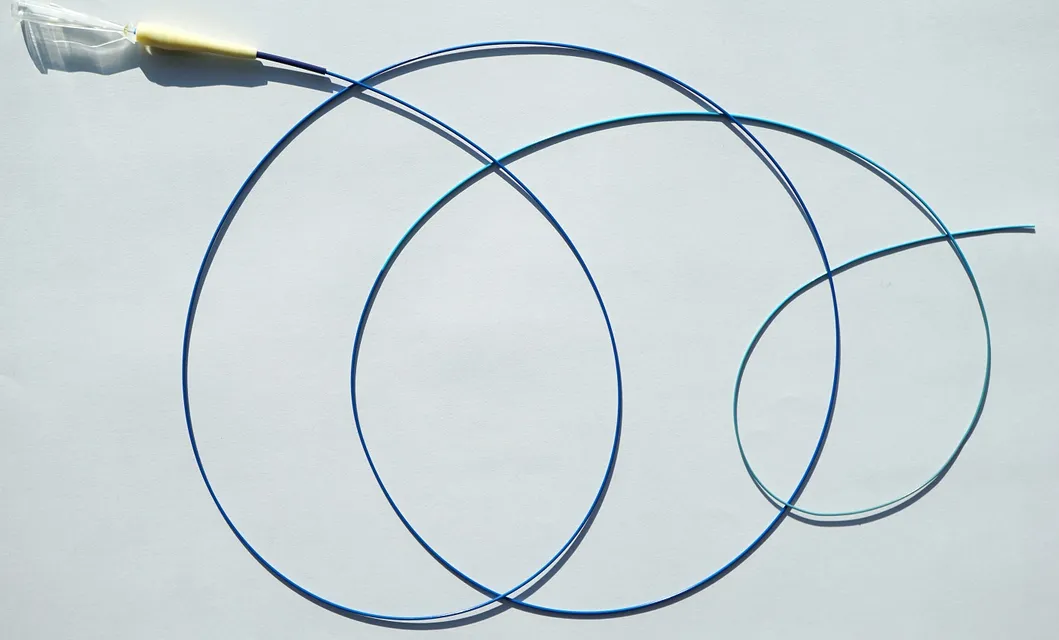

The Micro Catheter is designed with a flexible distal region to ensure precise navigation. A hydrophilic coating is applied to the distal outer surface to reduce friction during insertion. To facilitate fluoroscopic visualization, a radiopaque marker is strategically located proximal to the Micro Catheter tip.

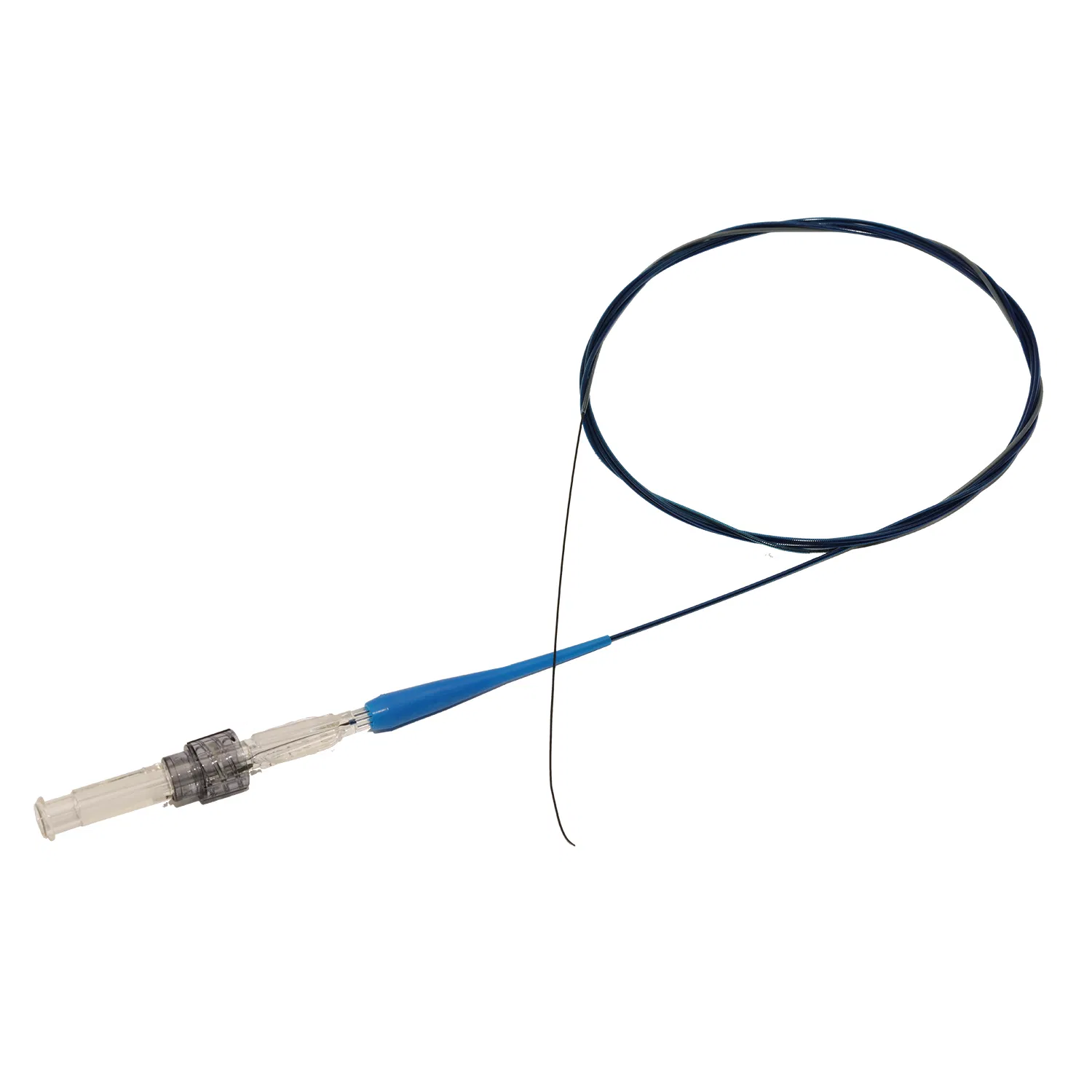

The proximal end features a standard luer adapter for seamless attachment of accessories and includes a tip straightener for convenience. This device is primarily used to inject diagnostic agents (such as contrast agents) and therapeutic agents (such as embolic materials), while providing support for appropriate guidewires in peripheral or coronary vasculature.

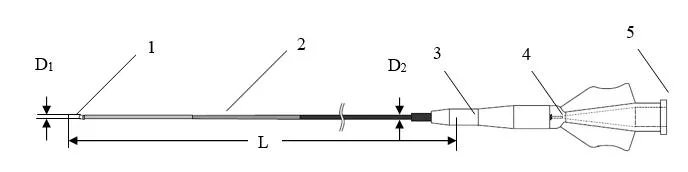

Structure Legend:
D1-End diameter, D2-Proximal diameter, L-Effective length;
1-Radiopaque marker, 2-Tube body, 3-Protective sleeve, 4-Stress buffer sleeve, 5-Hub

Technical Specifications

Model	Distal OD (Fr/mm)	Proximal OD (Fr/mm)	Length (cm)	Guidewire (in/mm)	Marker
SMC-1.8-130	1.8/0.6	2.7/0.9	130	0.018/0.46	1
SMC-1.8-150	1.8/0.6	2.7/0.9	150	0.018/0.46	1
SMC-2.0-130S	2.0/0.67	2.7/0.9	130	0.018/0.46	1
SMC-2.0-130D	2.0/0.67	2.7/0.9	130	0.018/0.46	2
SMC-2.0-130T	2.0/0.67	2.7/0.9	130	0.018/0.46	3
SMC-2.0-150S	2.0/0.67	2.7/0.9	150	0.018/0.46	1
SMC-2.0-150D	2.0/0.67	2.7/0.9	150	0.018/0.46	2
SMC-2.0-150T	2.0/0.67	2.7/0.9	150	0.018/0.46	3
SMC-2.8-130S	2.8/0.93	2.8/0.93	130	0.021/0.53	1
SMC-2.8-130D	2.8/0.93	2.8/0.93	130	0.021/0.53	2
SMC-2.8-130T	2.8/0.93	2.8/0.93	130	0.021/0.53	3
SMC-2.8-150S	2.8/0.93	2.8/0.93	150	0.021/0.53	1
SMC-2.8-150D	2.8/0.93	2.8/0.93	150	0.021/0.53	2
SMC-2.8-150T	2.8/0.93	2.8/0.93	150	0.021/0.53	3

★

Key Features

✔ Ultra low profile and pushability for navigation inside lesions and micro channels.
✔ Hybrid braiding + Coil construction for superior guidewire support and crossing capabilities.

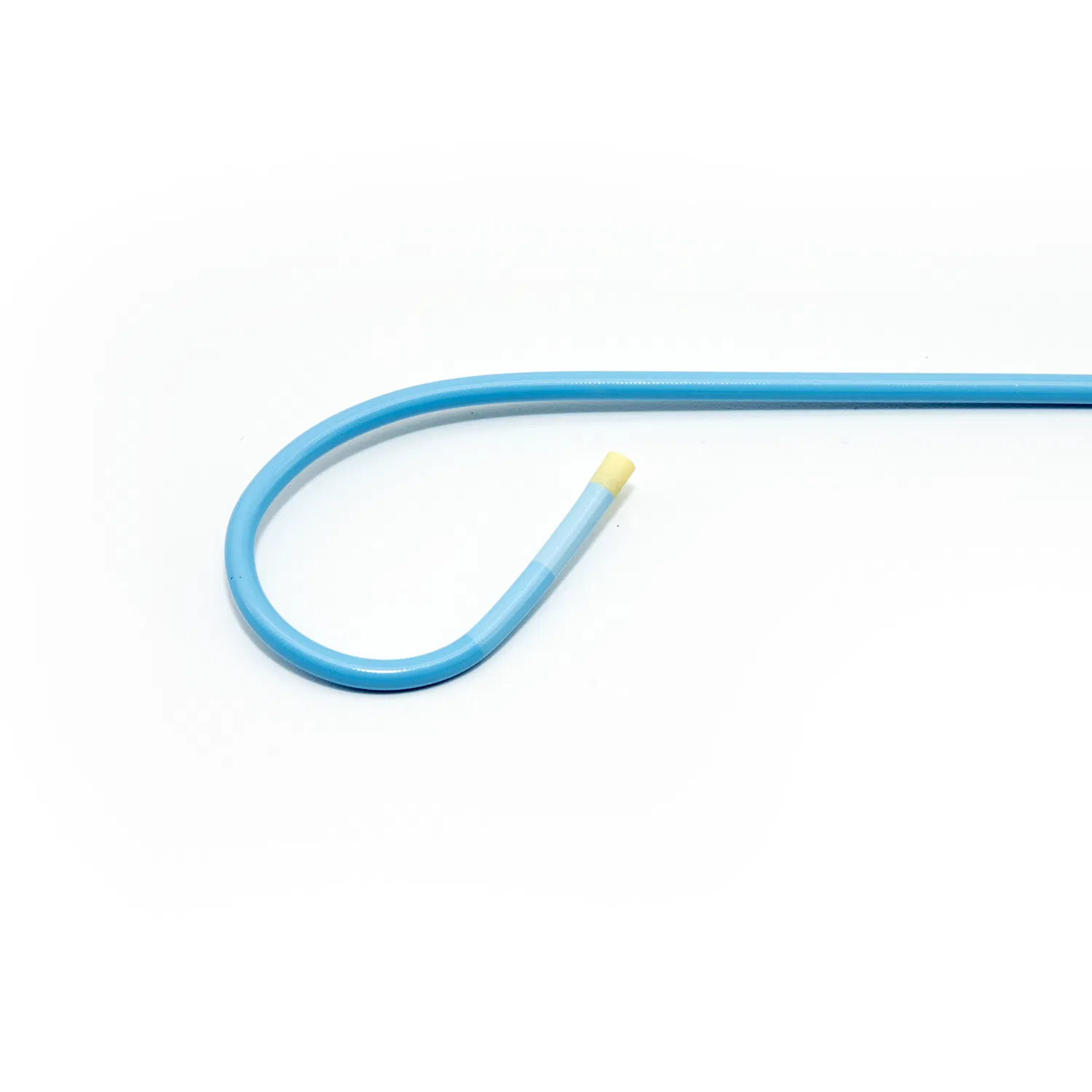

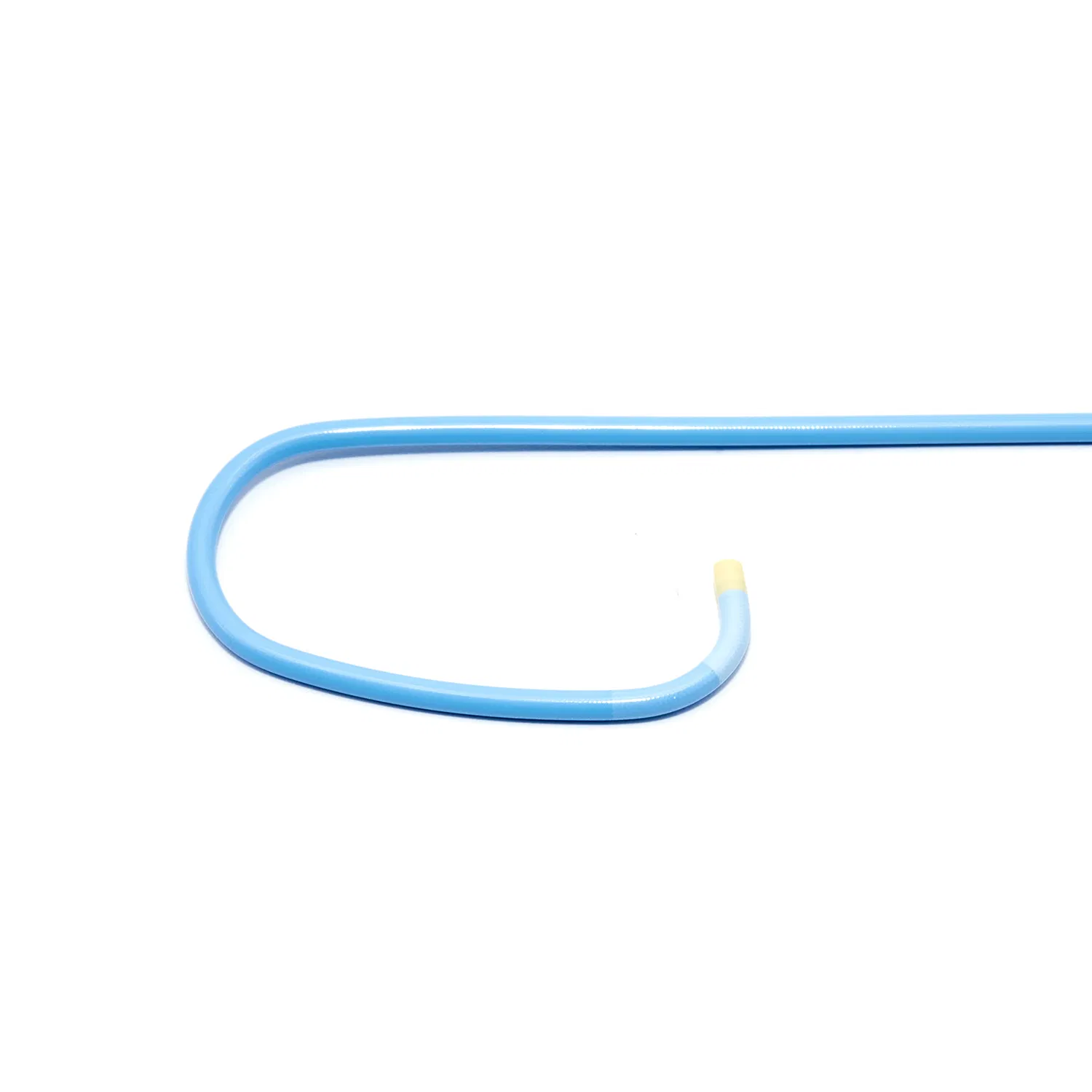

✔ Dual-Layer radiopaque tapered tip designed for robustness and high visibility.
✔ Fully indicated for both coronary and peripheral interventional procedures.

Instruction for Use

Take out the product from its sterile package.

Choose a compatible guidewire for use with this Micro catheter.

Use Heparin saline to clean the catheter through the protect hoop; ensure the surface is fully lubricated.

Insert the guidewire carefully into the micro catheter.

Slowly insert the assembly into the lesion location through a Y-connector or sheath.

After reaching the target position, perform diagnostic or therapeutic measures. Release the hemostasis valve and withdraw slowly.

Frequently Asked Questions (FAQ)

Q1: What are the primary applications for this micro catheter? A: It is designed for coronary and peripheral vascular interventions, specifically for injecting agents and supporting guidewires in complex lesions.

Q2: How is the device sterilized? A: The product undergoes Ethylene Oxide (EO) sterilization to ensure it is safe for minimally invasive medical procedures.

Q3: What makes the tip of the catheter special? A: It features a dual-layer radiopaque tapered tip, which provides both excellent visibility under fluoroscopy and the robustness needed for crossing lesions.

Q4: Does the catheter support OEM/ODM requests? A: Yes, we provide optional OEM and ODM services to meet specific clinical or branding requirements.

Q5: What is the shelf life of the sterile package? A: The quality guarantee period is 3 years from the date of sterilization, provided the package remains unopened and undamaged.

Q6: Which guidewire sizes are compatible with these models? A: Depending on the model (1.8Fr to 2.8Fr), the catheter is compatible with 0.018-inch or 0.021-inch guidewires.
