Weighs only a few ounces and fits easily into a lab coat pocket. Perfect for bedside examinations and emergency response.
Enables immediate imaging in ambulances or field operations. Reduces patient wait times and accelerates decision-making.

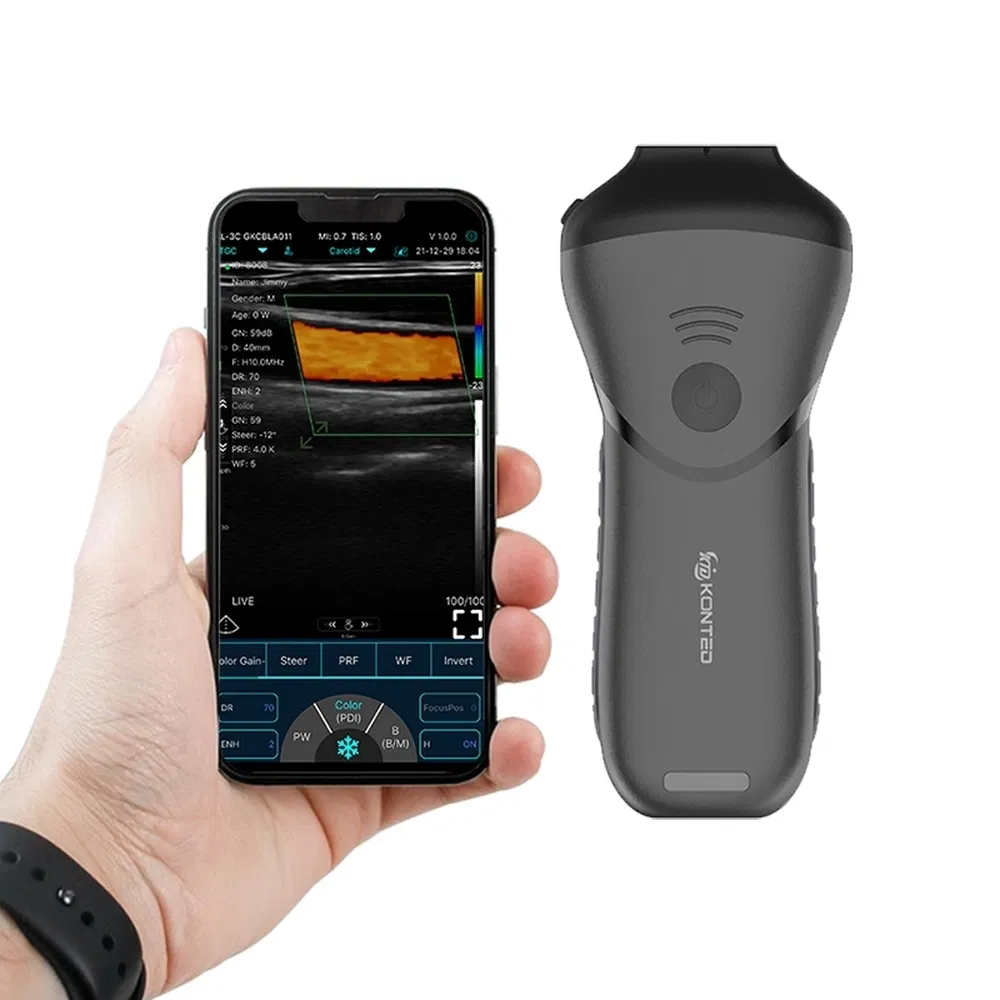

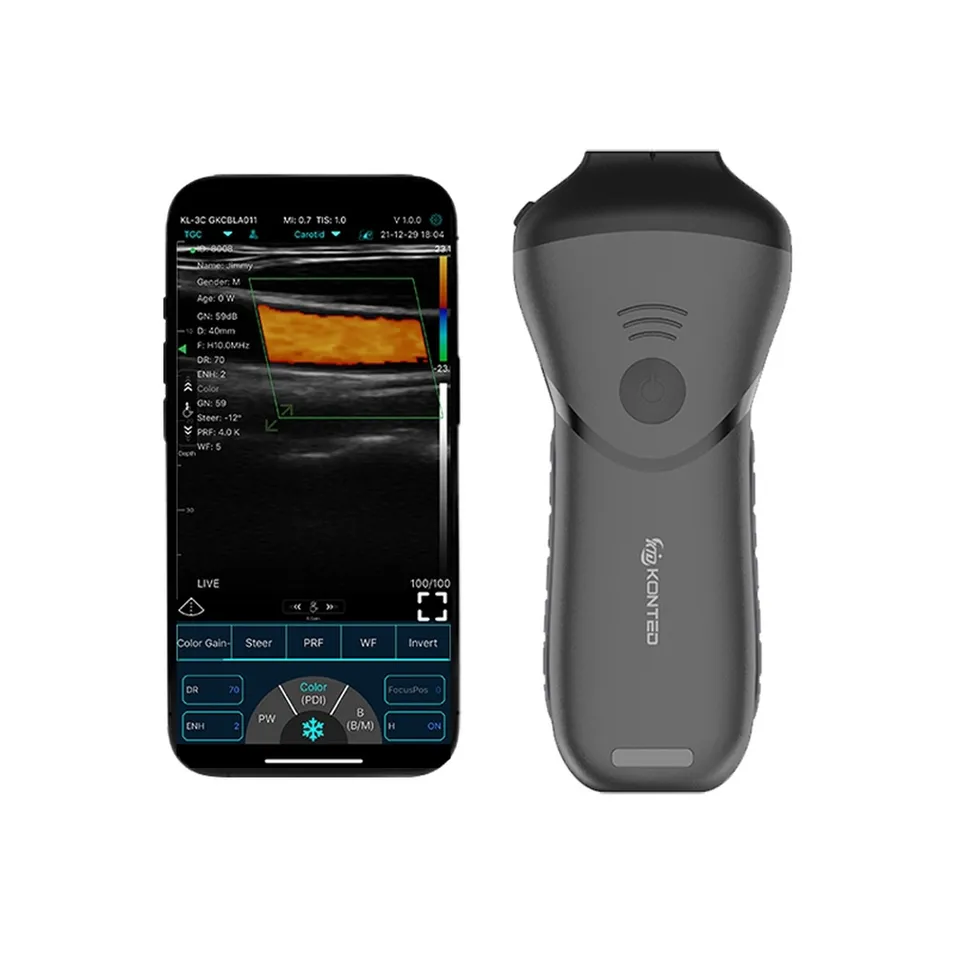

Features a simplified, touch-based mobile app interface that reduces learning curves significantly for all practitioners.

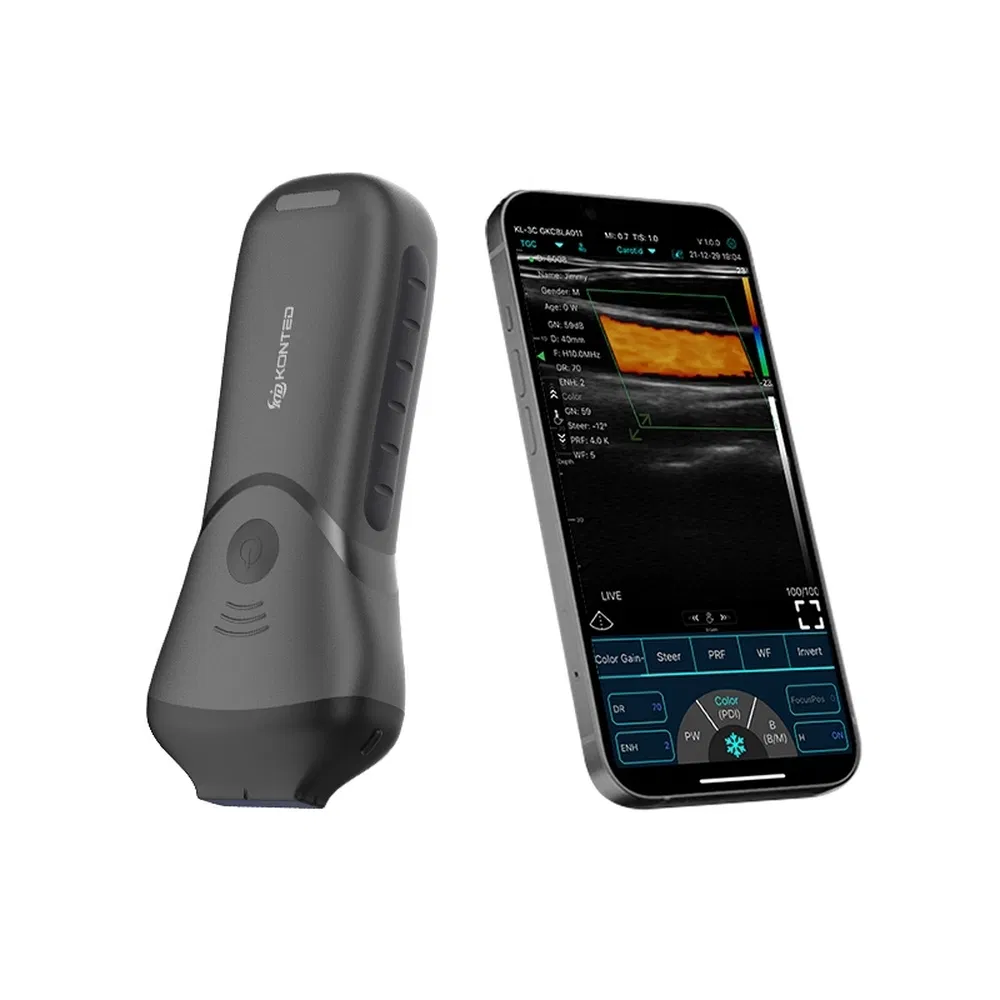

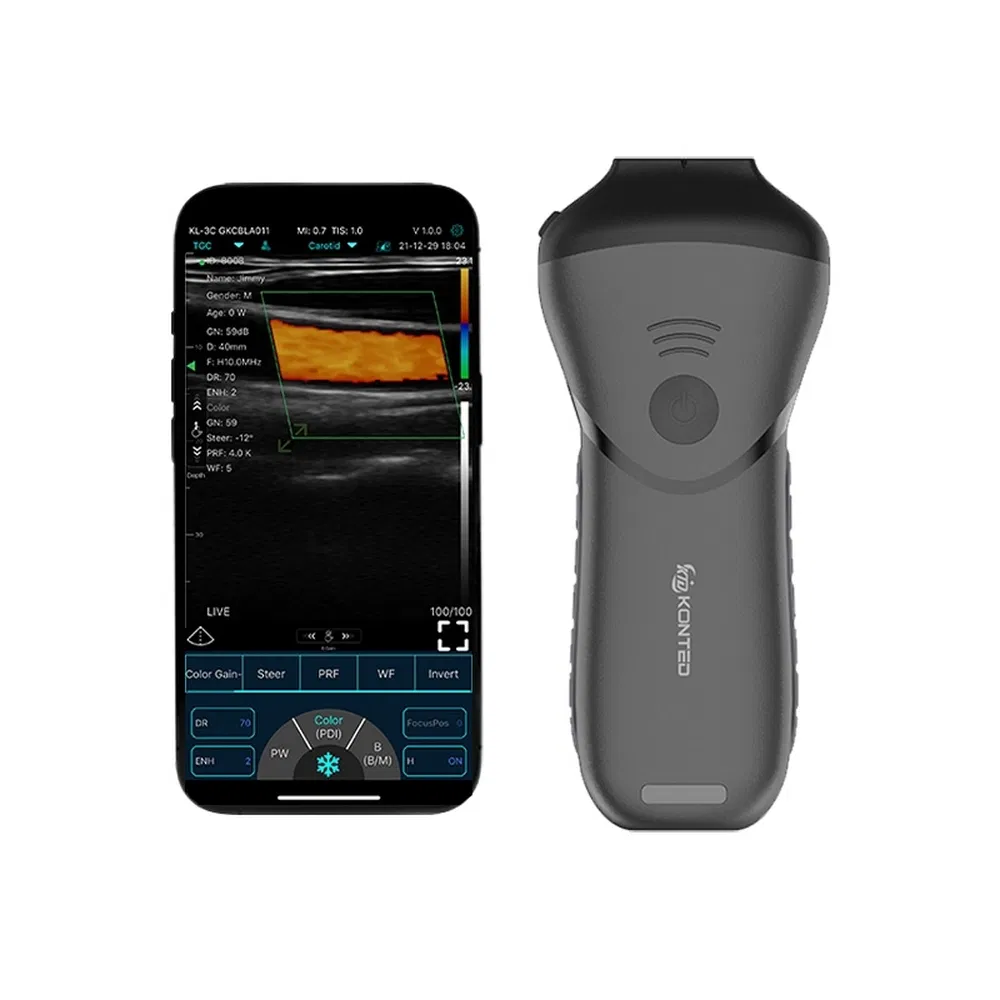

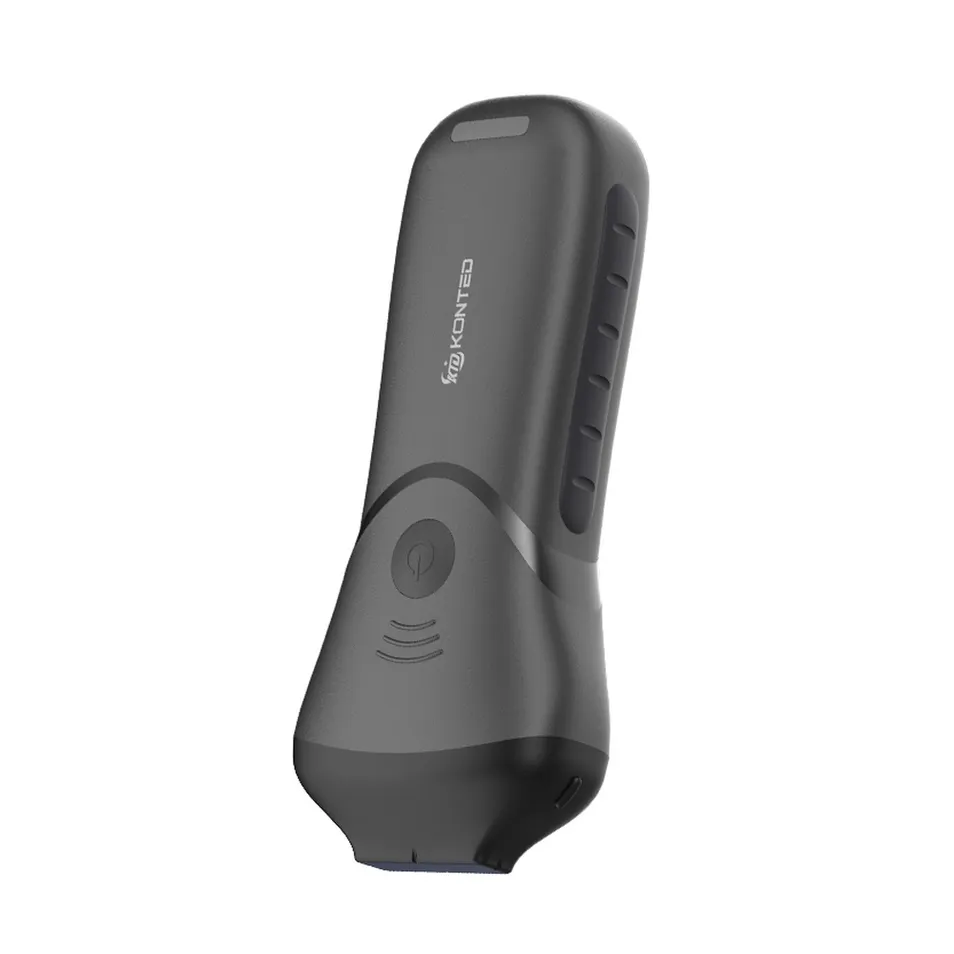

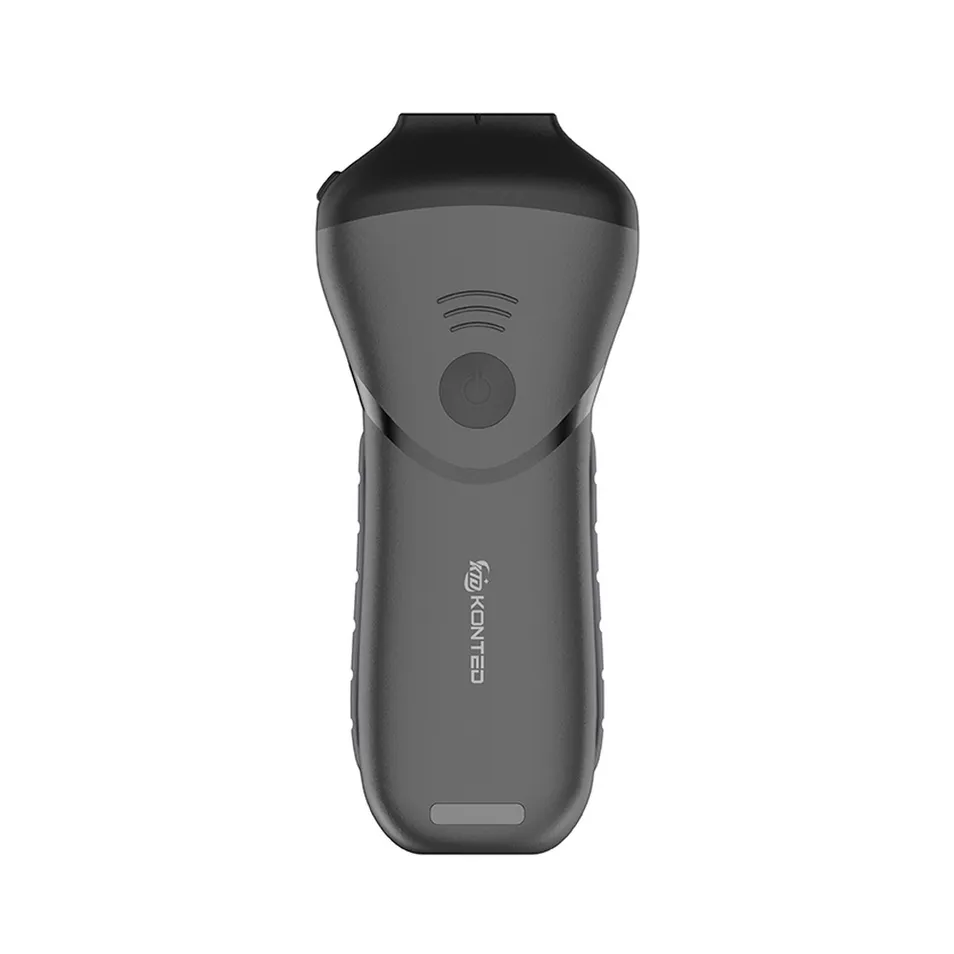

| Probe Type | Wireless Linear Probe (128 Elements) |
| Frequency Range | 10-14Mhz |
| Scanning Depth | 20-30-40-60mm |
| Presets | Thyroid, Small Parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve, VesselFlow |
| Display Mode | B, B/M, Color, PW, PDI, B+B |
| Software Parameters | Gain, Depth, Enhancement, Dynamic Range, Frequency, FocusPos, PRF, WF |
| Measurements | Length, Area, Circumference, Angle, Trace, Distance, Heart Rate, Velocity |
| Battery | Built-in 4200mAh (3h working, 12h standby) |
| WiFi Type | 802.11G / 5G / 450Mbps |
| Supported Systems | iOS, Android, Windows (Tablet, Smart Phone, PC) |
Extended rechargeable battery life supports hours of continuous scanning without interruption for busy clinical shifts.
Engineered to withstand demanding clinical use, frequent handling, and strict cleaning protocols.
Solid-state construction with no moving parts eliminates costly service contracts and reduces downtime.
