Safe Durable Multidirectional Scaffold with CE SGS Approved

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Product Specifications

Model NO.model A

Structural StyleMulti-Pole Scaffolding

FrameworkCombined Scaffolding

Supporting ModeProjecting Scaffolding

Lapping FormFull Scaffolding

Erection PositionExternal Scaffolding

Move MethodAttached Lifting Scaffolding

Scaffolding Part TypeScaffolding Planks

Construction PropertiesInstallation Scaffold

Transport PackageSteel Frame

HS Code73084000

Production Capacity100 Tons Per Day

🏗️

Product Description

Professional Scaffolding Manufacturer

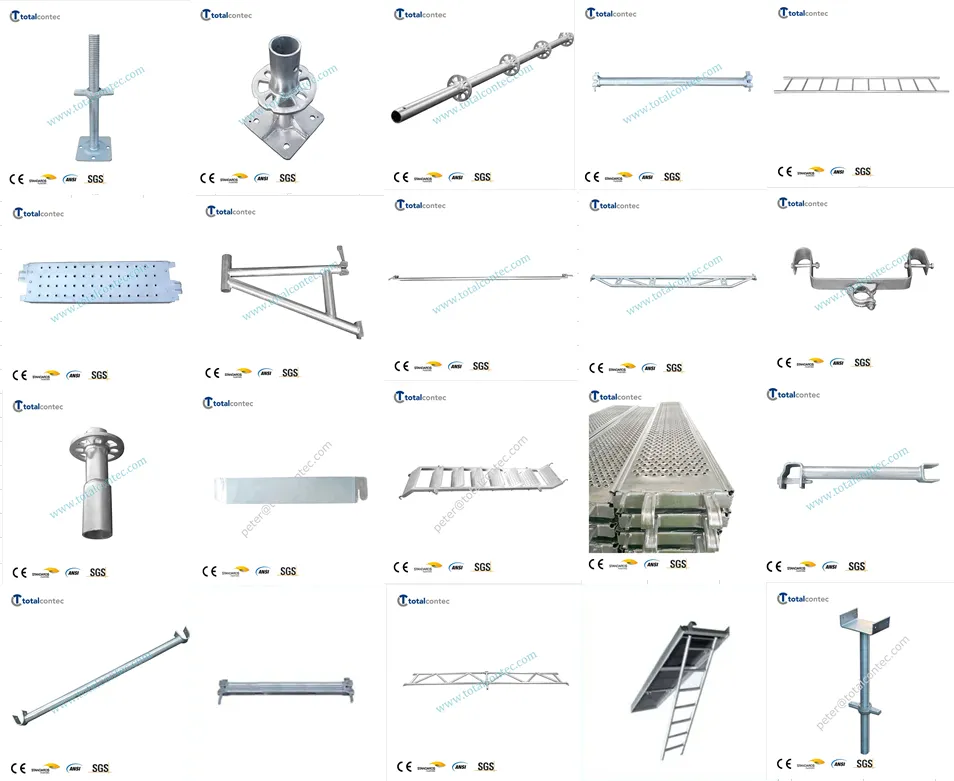

Main products range: Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, and Couplers.

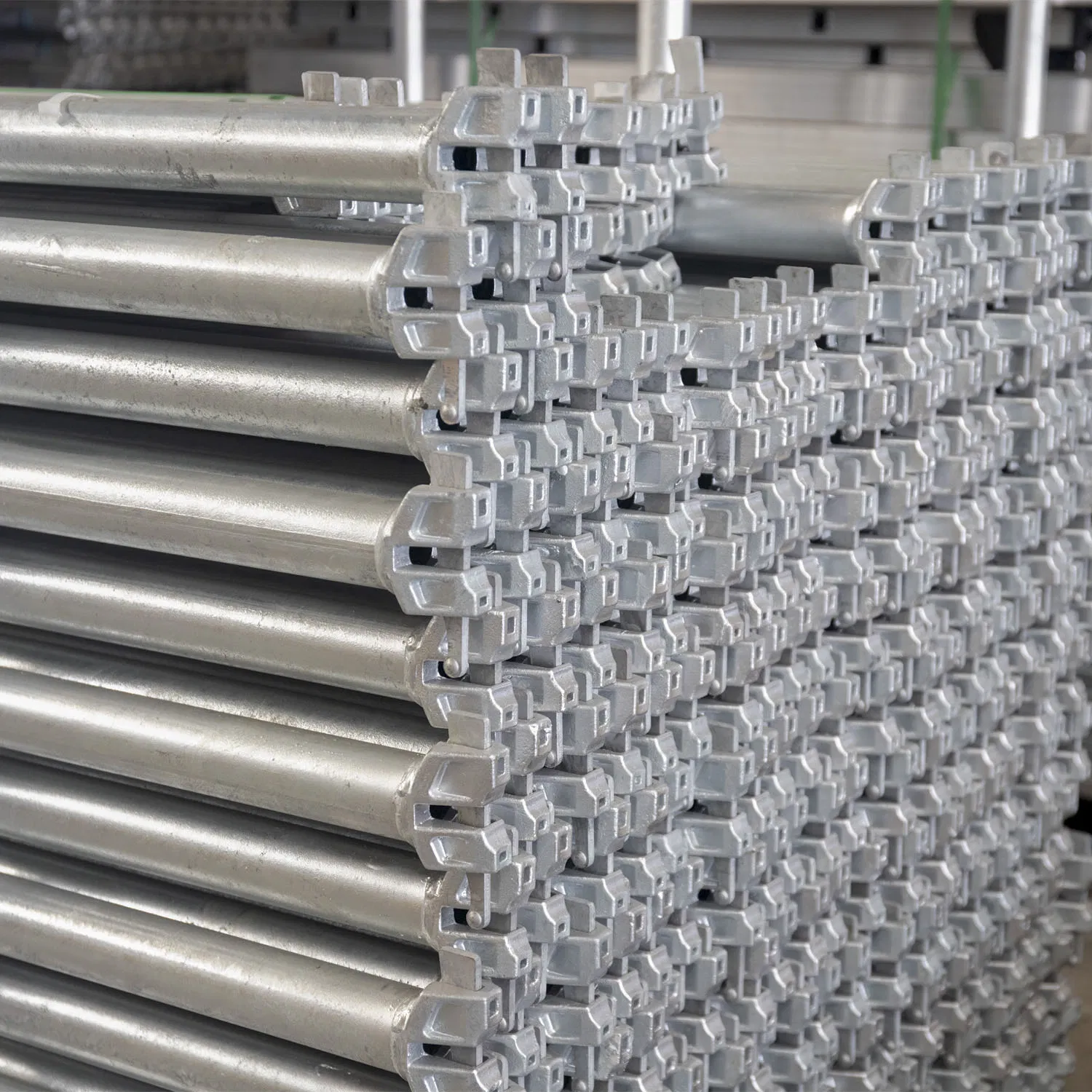

Ringlock Scaffolding System Overview

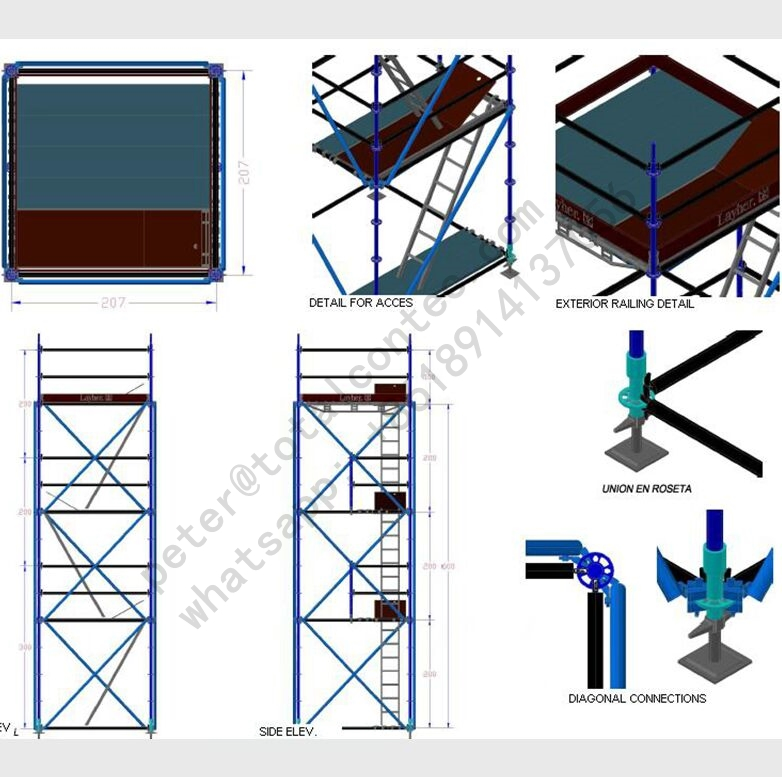

Ringlock scaffolding is a mature system. It mainly composes of standard, ledger, brace, plank and so on. The Ringlock node is revolutionary, making it faster and easier to erect than any other scaffolding system.

Utilizes wedges, ledger ends, and rosettes to lock vertical and horizontal components.
Rosette features eight holes (four for ledgers and four for braces) for superior connectivity.
Each ledger and brace is independent, allowing for quick locking and fastening.

Item Name	Materials	Weight	Surface Treatment

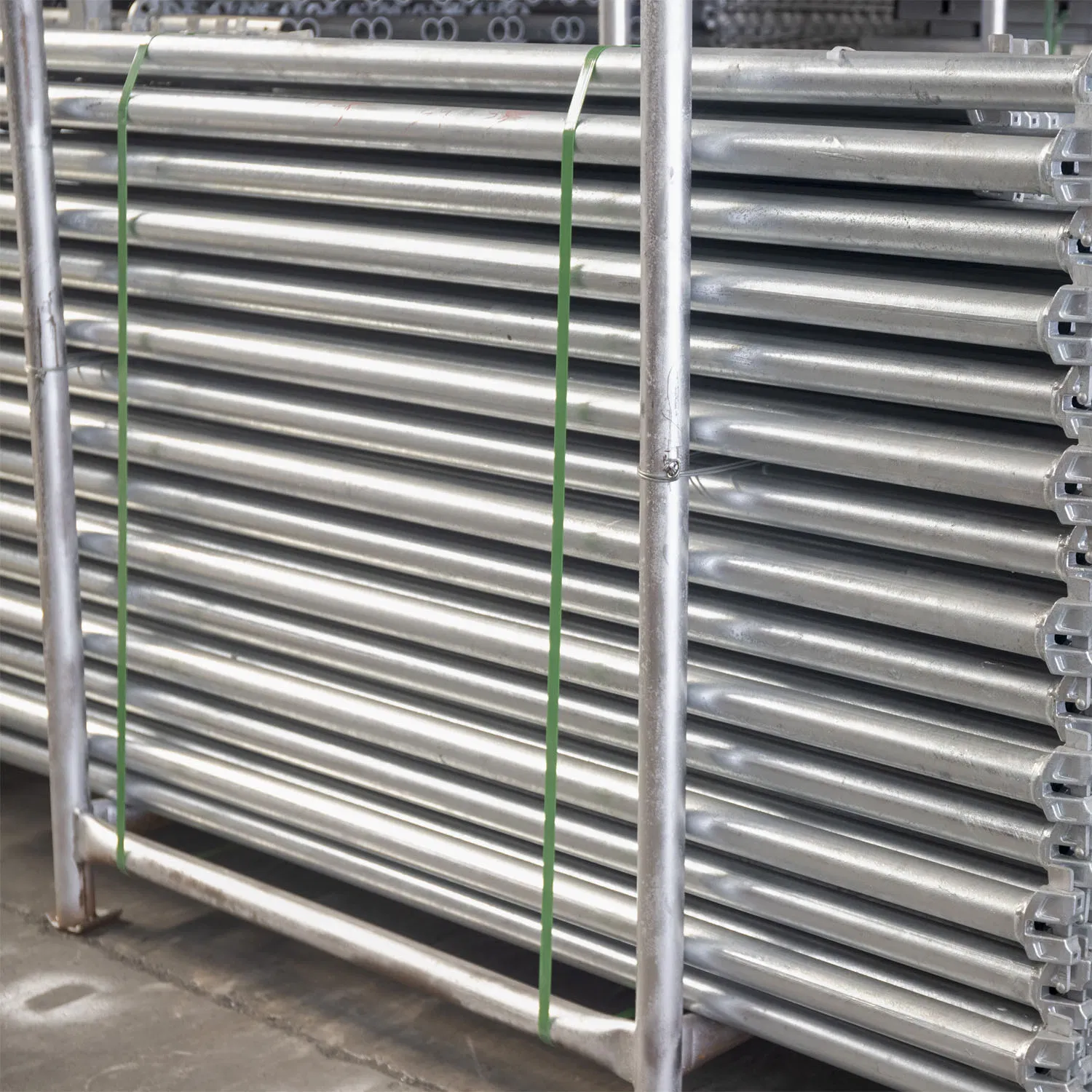

Standard/verticals 050	Q235, Q355 48.3*2.75mm - 3.2mm	2.96kg	Hot dip galvanized Powder coated Painted
Standard/verticals 150		7.69kg
Standard/verticals 300		14.78kg
Ledger/Horizontal 073	Q235, Q355 48.3*2.75mm - 3.2mm	3.34kg	Hot dip galvanized Powder coated Painted
Ledger/Horizontal 2070		7.73kg
Ledger/Horizontal 3070		11.01kg
Diagonal/brace 073*200	Q235 48.3*2.5mm	5.34kg	Hot dip galvanized Pre-galvanized
Diagonal/brace 307*200	Q235 48.3*2.5mm	9.22kg	Hot dip galvanized Pre-galvanized
Steel plank/deck 1090	Q235 1.2mm - 1.8mm	8.58kg	Hot dip galvanized Pre-galvanized
Steel plank/deck 3070	Q235 1.2mm - 1.8mm	22.15kg	Hot dip galvanized Pre-galvanized

📜

Scaffolding Certificate

❓

Frequently Asked Questions

What makes Ringlock scaffolding faster to install?

The revolutionary Ringlock node uses a wedge-locking mechanism that allows vertical and horizontal components to be secured quickly with a hammer, significantly reducing assembly time compared to traditional systems.

What materials are used for the scaffolding standards?

Our standards and verticals are manufactured from high-grade Q235 or Q355 steel with wall thicknesses ranging from 2.75mm to 3.2mm for maximum durability.

Are different surface treatments available for harsh environments?

Yes, we offer multiple surface treatments including Hot Dip Galvanized (HDG) for maximum corrosion resistance, as well as powder-coated and painted finishes to meet different project requirements.

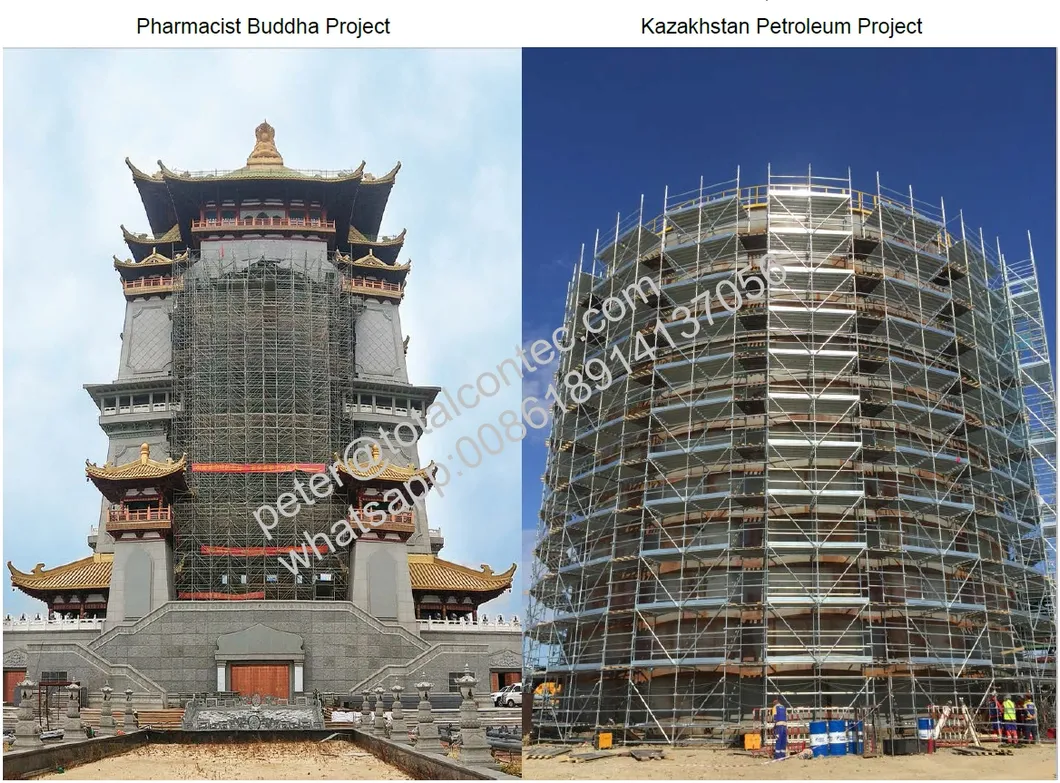

Can the Ringlock system handle complex structural shapes?

Absolutely. The rosette node features eight connection points, allowing ledgers and braces to be connected at various angles, making it ideal for circular or complex geometric structures.

What is the production capacity for these scaffolding systems?

We maintain a high production capacity of approximately 100 tons per day, ensuring reliable supply for large-scale construction projects.

Is the equipment certified for international safety standards?

Yes, our scaffolding systems are CE and SGS approved, ensuring they meet rigorous international safety and quality standards for construction use.
