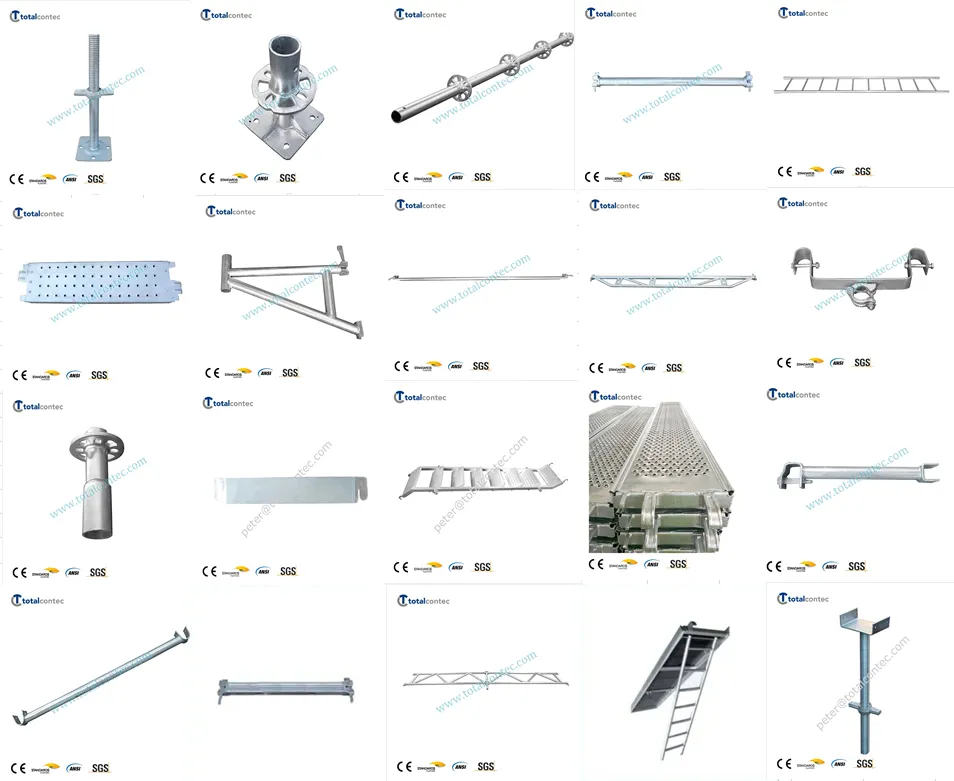

Main Products: Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, Couplers.
Ringlock scaffolding is a mature system. It mainly composes of standard, ledger, brace, plank and so on. The Ringlock node is revolutionary, making it faster and easier to erect than any other scaffolding system.
When it comes to connection, it uses wedges, ledger ends, and rosettes to lock the vertical and horizontal components together by hitting the wedges. The rosette features eight holes (four for fixed ledgers and four for fixed braces), offering superior stability. Each ledger and brace is independent, allowing for quick locking and secure fastening.
| Item Name | Materials | Weight | Surface Treatment |
|---|---|---|---|
| Standard/verticals 050 | Q235, Q355 48.3*2.75mm-3.2mm | 2.96kg | Hot dip galvanized Powder coated Painted |
| Standard/verticals 100 | 5.33kg | ||
| Standard/verticals 150 | 7.69kg | ||
| Standard/verticals 200 | 10.06kg | ||
| Standard/verticals 250 | 11.86kg | ||
| Standard/verticals 300 | 14.78kg | ||
| Ledger/Horizontal 073 | Q235, Q355 48.3*2.75mm-3.2mm | 3.34kg | Hot dip galvanized Powder coated Painted |
| Ledger/Horizontal 1400 | 5.53kg | ||
| Ledger/Horizontal 2070 | 7.73kg | ||
| Ledger/Horizontal 3070 | 11.01kg | ||
| Diagonal/brace 073*200 | Q235 48.3*2.5mm | 5.34kg | Hot dip galvanized Pre-galvanized |
| Diagonal/brace 207*200 | 7.56kg | ||
| Diagonal/brace 307*200 | 9.22kg | ||

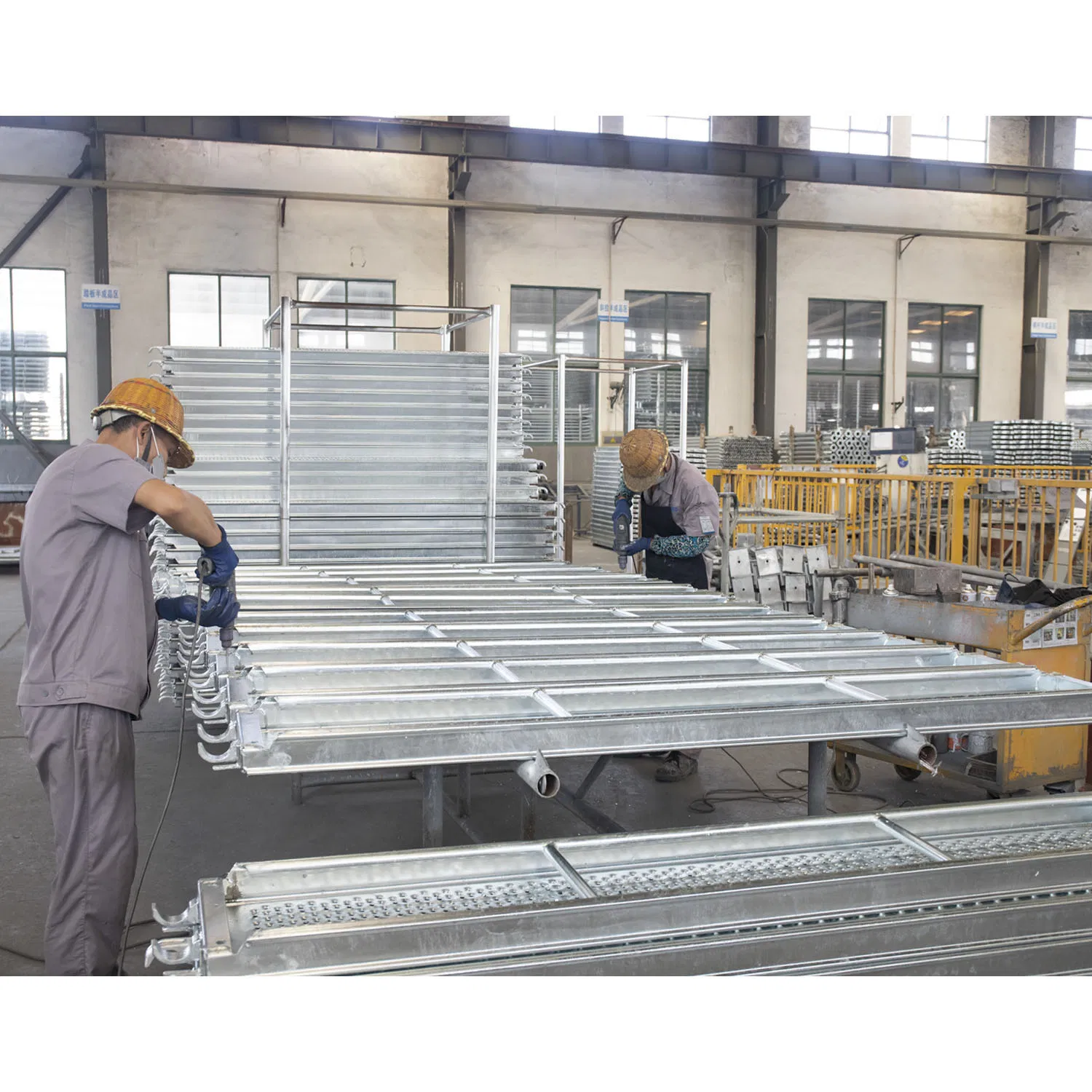

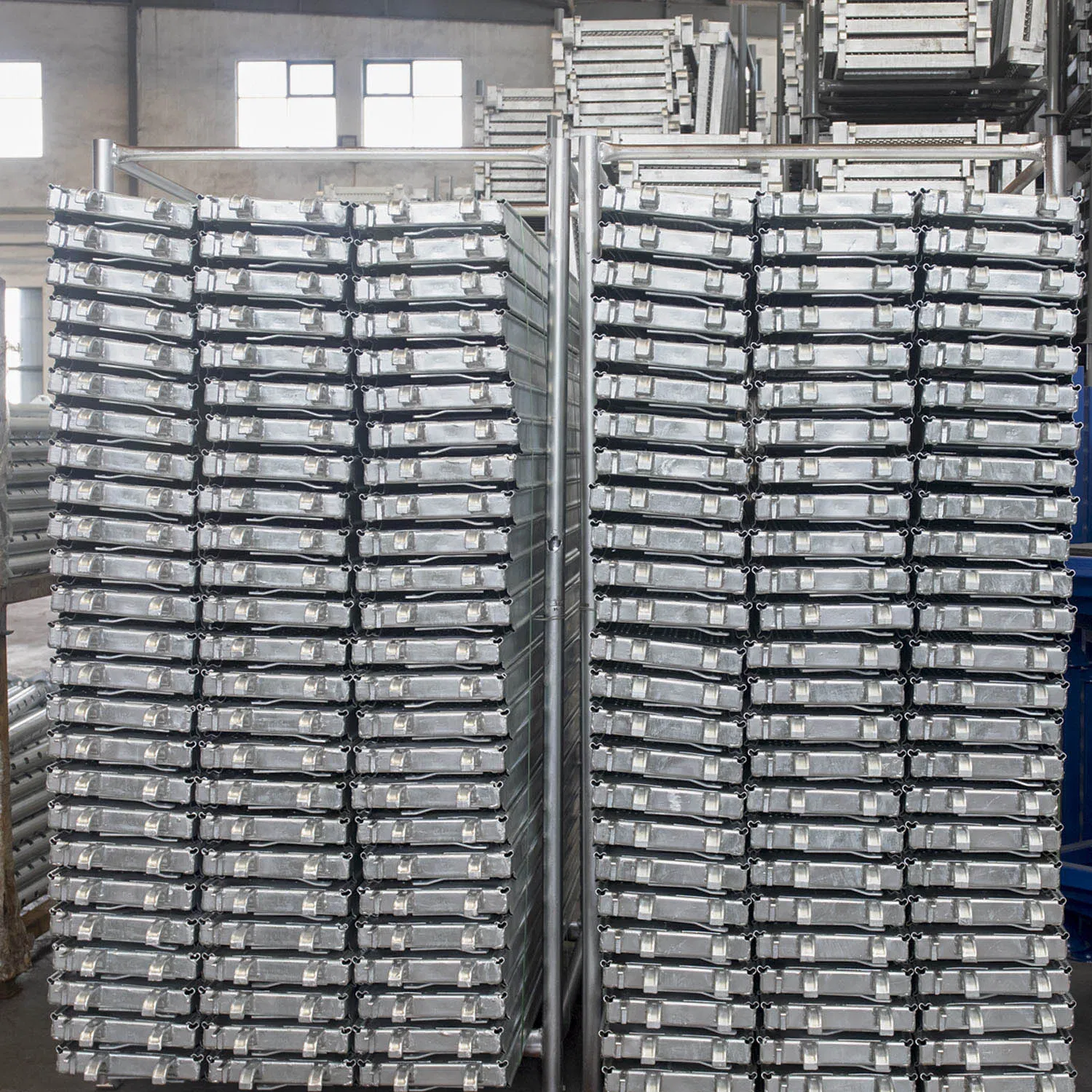

| Steel plank/deck 1090 | Q235 1.2mm-1.8mm | 8.58kg | Hot dip galvanized Pre-galvanized |
| Steel plank/deck 2070 | 15.65kg | ||
| Steel plank/deck 3070 | 22.15kg |
