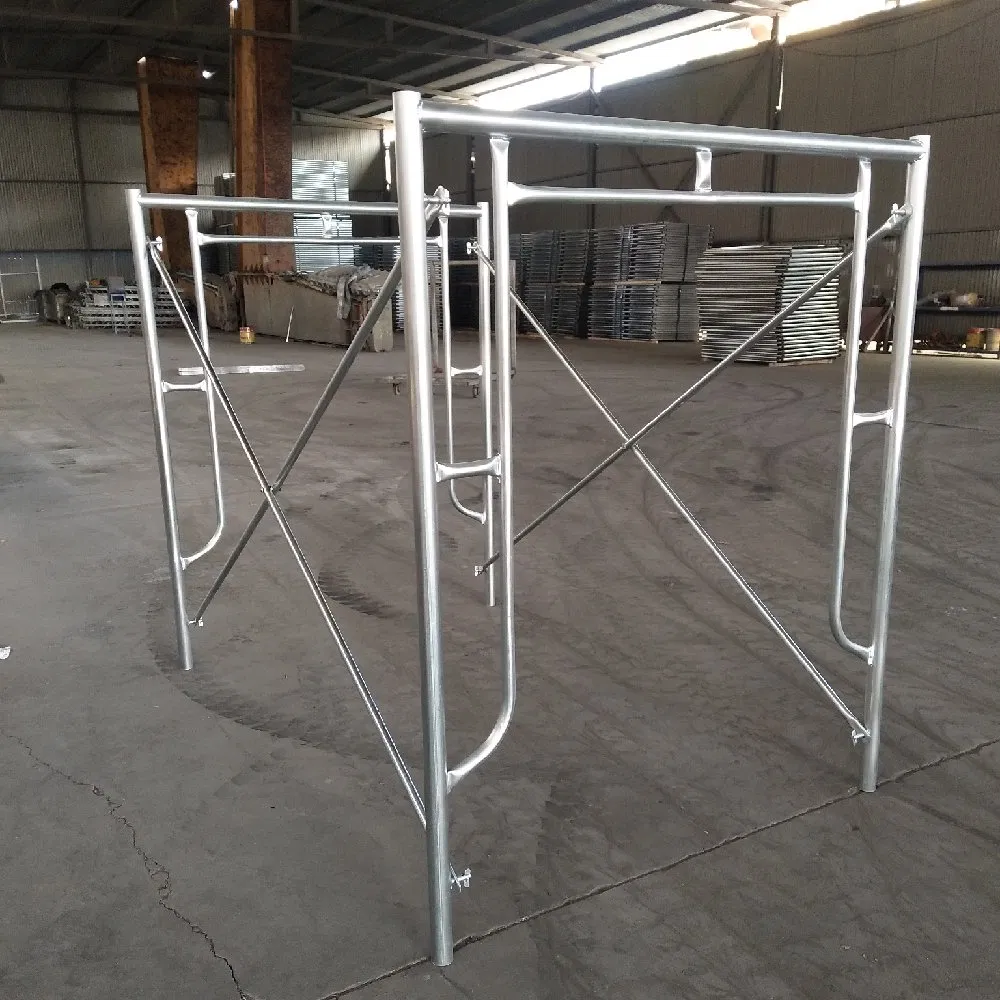

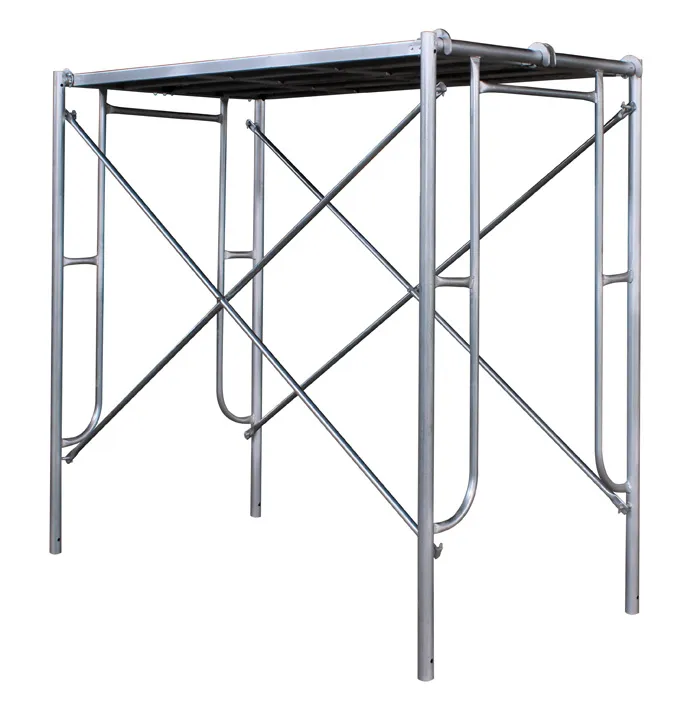

Frame scaffolding systems are one of the most widely utilized scaffold solutions in the global construction industry. These systems consist of precision-welded steel frames securely connected by cross braces to create a robust framework, engineered to support scaffold planks and various platform systems with high stability.
The scaffold components are manufactured in a diverse range of sizes and configurations to meet specific project requirements, ensuring safety and efficiency on site.
| Frame Type | Dimensions & Specification | Weight |
|---|---|---|
| Mason Frame | 1219*1930mm (42*2.2mm,25*1.5mm) | 16.44kg |
| Mason Frame | 1219*1930mm (42*2.0mm,25*1.5mm) | 15.28kg |
| Mason Frame | 1219*1700mm (42*2.2mm, 42*2.0mm) | 16.83kg |
| Mason Frame | 1219*1700mm (42*2.2mm,25*1.5mm) | 14.65kg |
| Mason Frame | 1219*1700mm (42*2.0mm,25*1.5mm) | 13.57kg |
| Mason Frame | 914*1700mm (42*2.2mm,25*1.5mm) | 13.09kg |
| Feature | Details |
|---|---|
| Material | Q235, Q255, Q345 High-Strength Steel |

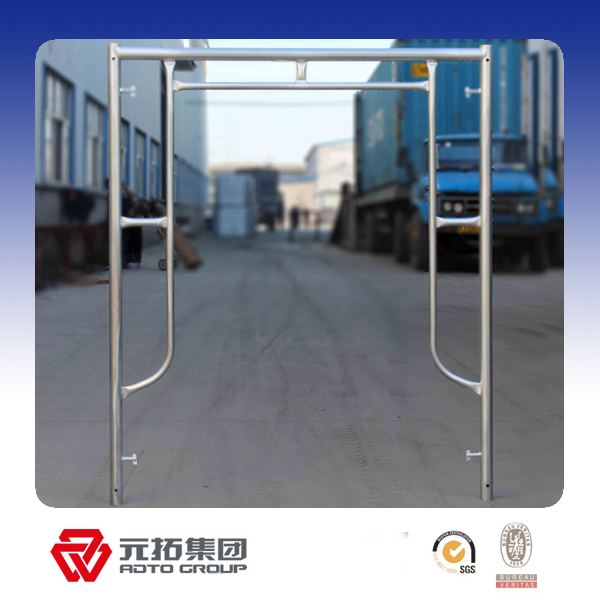

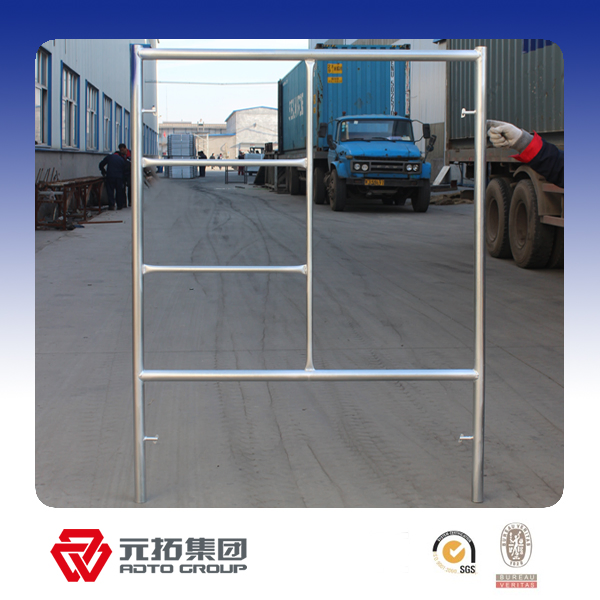

| Variety | Walk-through type & Ladder type |

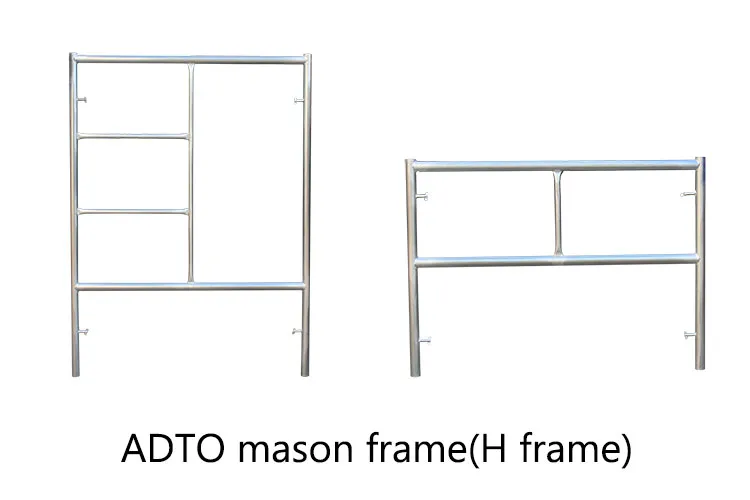

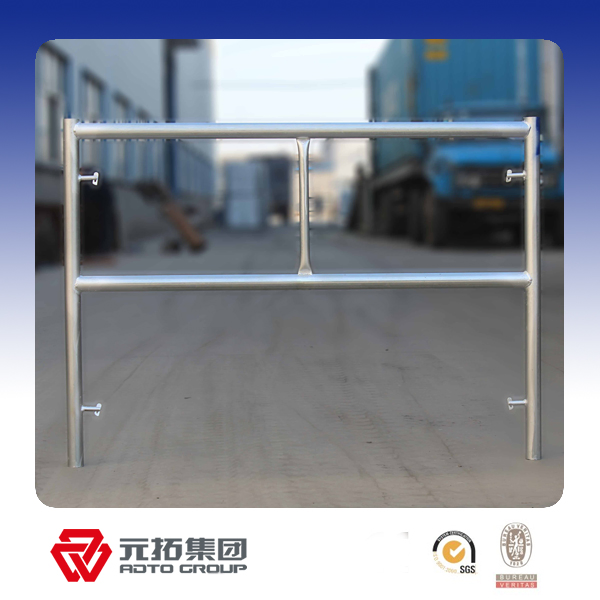

| Type | H-frame & A-frame scaffolding systems |
| Tube Thickness | 3mm, 3.2mm, 3.25mm, 3.5mm, 4mm (Customizable) |
| Surface Treatment | HDG (Hot Dipped Galvanized), Galvanized, or Painted |
| Standard Compliance | EN74, BS1139, AS1576 |

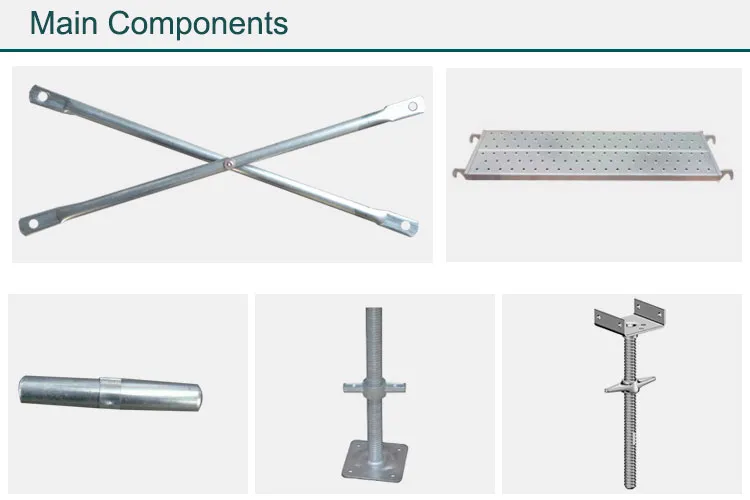

| Main Components | Frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster |
| Applications | Bridges, tunnels, shipbuilding, railway, airports, and civil building construction |
Our building materials solutions integrate R&D, production, and logistics to provide comprehensive scaffolding and formwork systems. With multiple advanced manufacturing bases equipped with top-tier machinery, we ensure high supply capacity and consistent quality.
Guided by the belief that quality and safety build the future, our products are backed by over 50 national patents, reflecting our position as a leading brand in the scaffolding and aluminum formwork sector.
