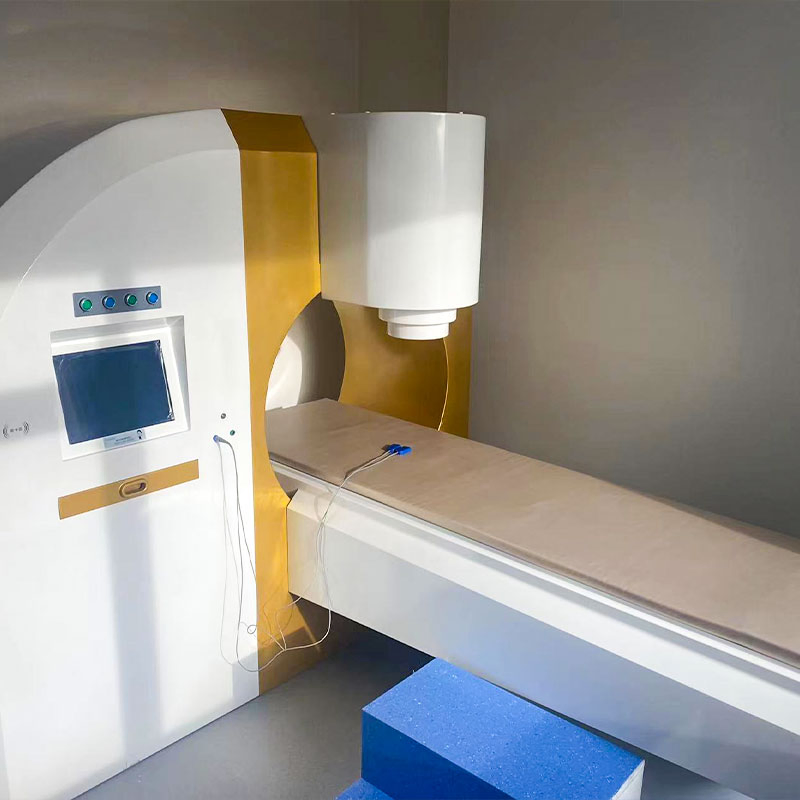

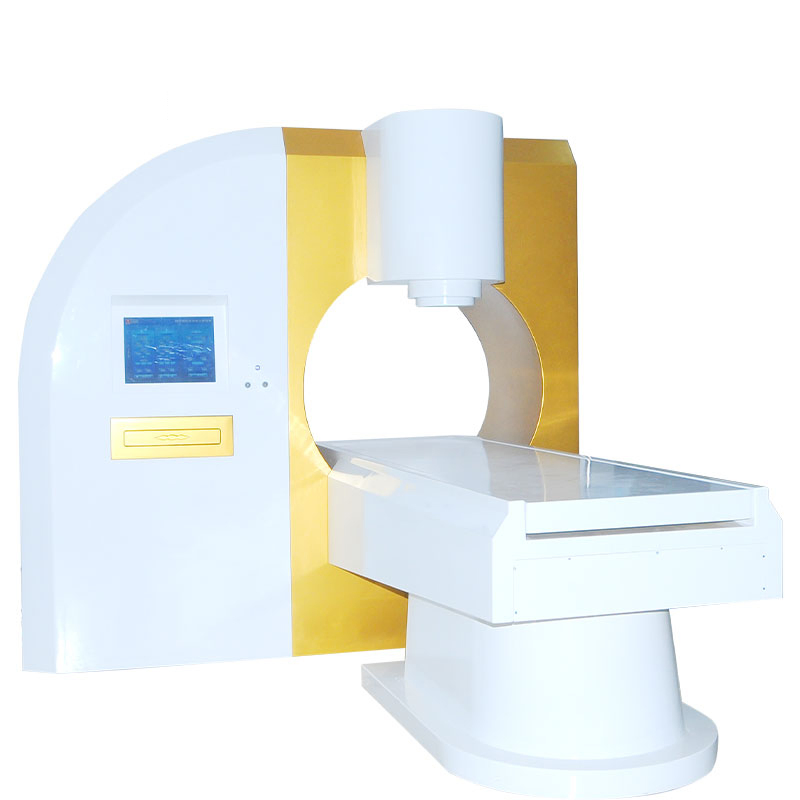

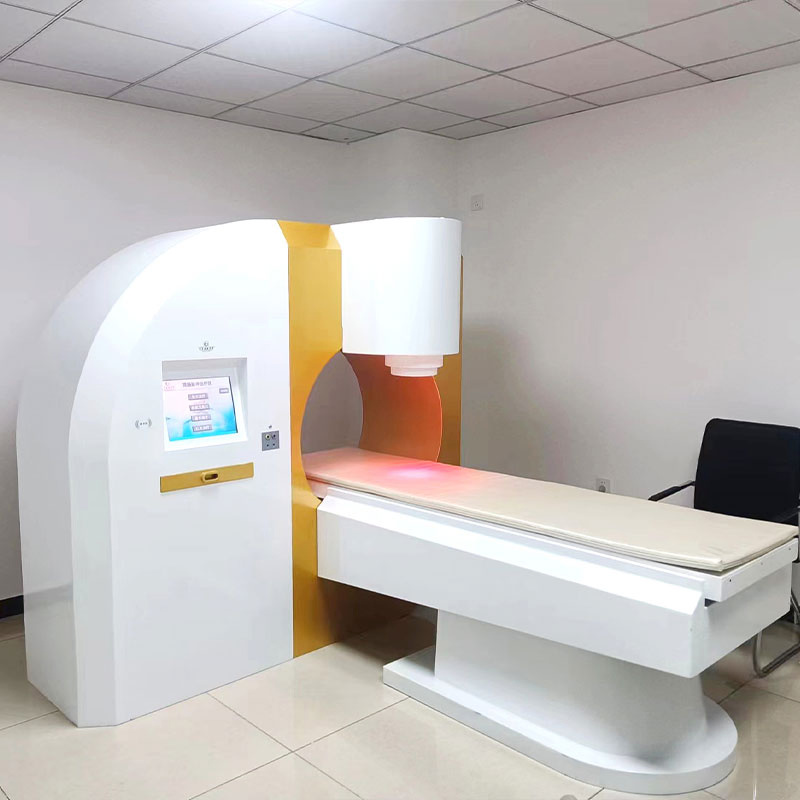

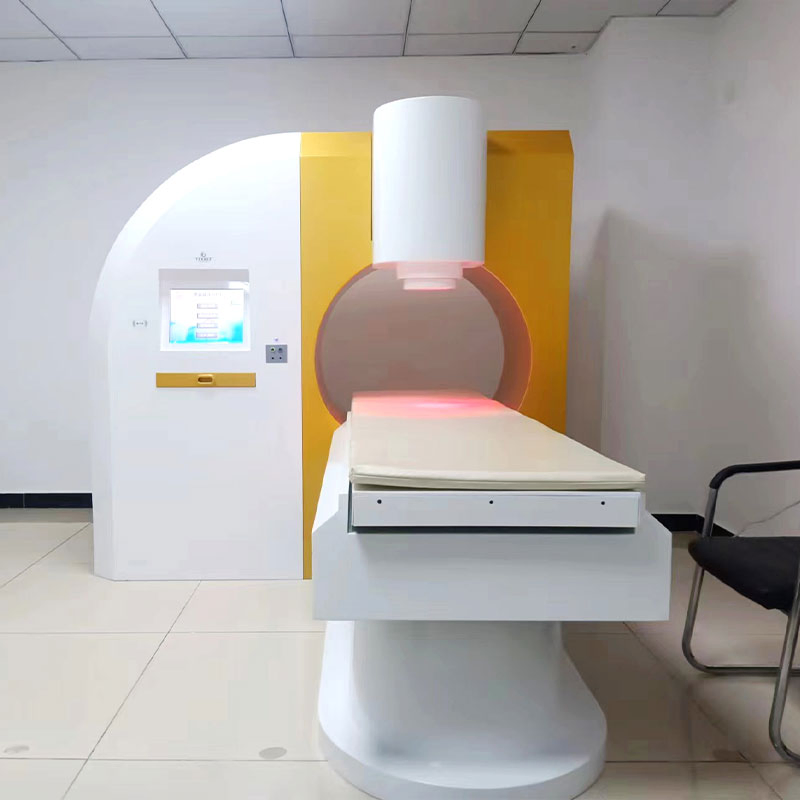

Tens + Thermal Stomach Therapy Device for Chronic Gastritis

Customization:	Available
Type:	Medium Frequency Magnetic Therapy
Group:	Middle-aged and Old

📋

Basic Information

Model:Zcjk-180

Display:15-Inch Display

Power Supply:220V 50Hz

Middle Frequency:1.14kHz, 1kHz, 3kHz, 4kHz

Waveform:Square, Sine, Triangle, Spike

Timing Function:0min~99min Adjustable

Music Mode:Optional

Weight:120kg

Specification:2*2.2*1.85M

🔍

Product Overview

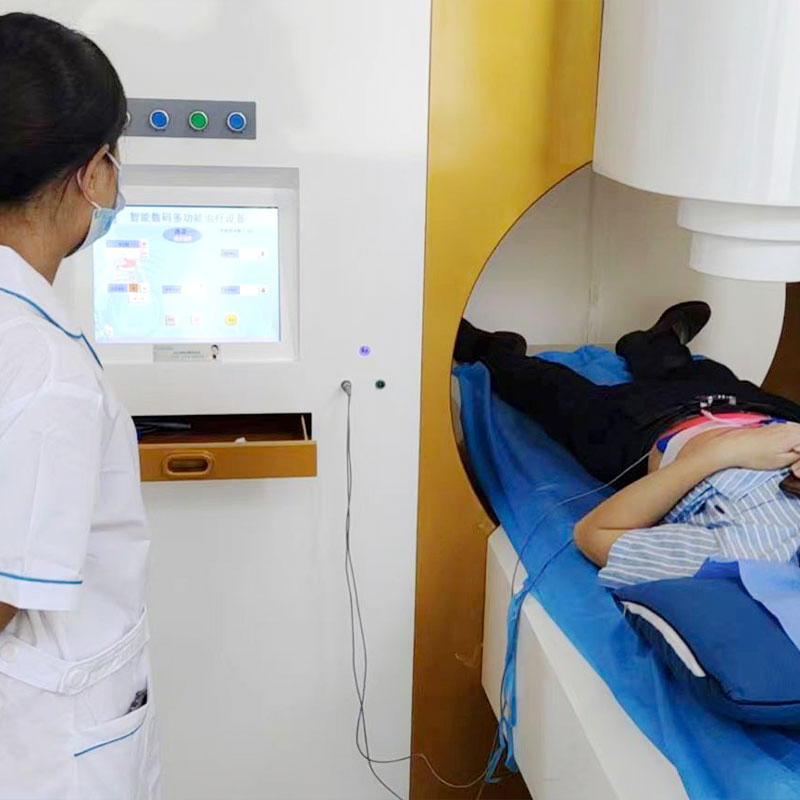

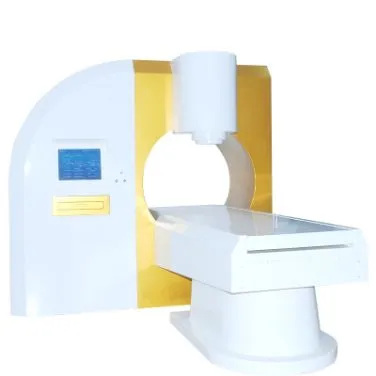

Gastrointestinal Middle Frequency Therapy Device:

This advanced equipment utilizes alternating current with a frequency range of 1.14kHz to 4kHz. By acting on specific parts of the human body through dedicated electrodes, the medium-frequency current provides strong penetrating power. It sends modulated waves deep into the tissue to achieve effective rehabilitation treatment for various gastrointestinal conditions.

🏥

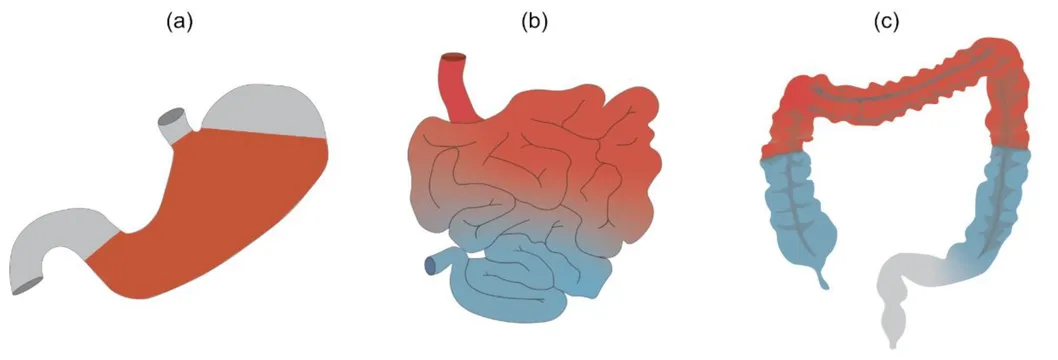

Main Indications

Gastritis & Ulcers

Effective for superficial erosive gastritis, gastric ulcer, atrophic gastritis, and both acute and chronic gastroenteritis. The medium frequency current excites thick nerve fibers to provide analgesic effects.

Digestive Symptoms

Treats abdominal pain, bloating, diarrhea, and constipation. Modulated waves cause muscle contractions that promote blood and lymphatic circulation.

Tissue Recovery

Addresses chronic discomfort by expanding gaps between cells and tissues, helping to loosen adhesions in connective tissue, muscle, and nerve fibers.

⚙️

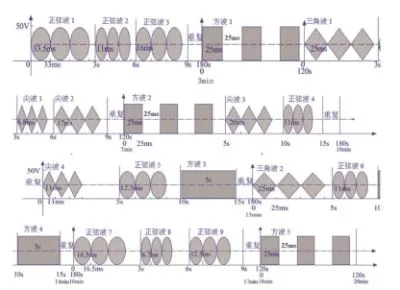

Technical Parameters & Usage

No.	Carrier Frequency	Modulation Waveform	Pulse Width	Modulation Freq.	Time (min)
1-3	1.14kHz	Sine wave	439μs	0-150Hz	20
4	1kHz	Sine, Square, Spike	500μs	0-150Hz	20
5	3kHz	Sine, Square, Spike, Triangle	167μs	0-150Hz	20
6	4kHz	Sine, Square, Spike, Triangle	125μs	0-150Hz	20

❓

Frequently Asked Questions

What should I check if there is no display after powering on?

Please check if the fuse is blown (Model: F4AL250V), ensure the power supply is properly connected, and verify that the voltage is stable between 220V ± 22V.

What causes "No Current Output" during treatment?

This is often due to a broken output line. Check the connection between the pins and clamps using a multimeter; resistance should be less than 1Ω. Repair or replace the line if abnormal.

How does middle frequency therapy relieve pain?

The 1.14kHz-4kHz current penetrates deep into the tissue to excite peripheral nerve fibers, which effectively blocks pain signals and provides relief.

Can this device help with chronic constipation?

Yes, the modulation waves induce muscle contractions in the abdominal area, promoting intestinal peristalsis and improving blood/lymph circulation to relieve constipation.

Is the treatment time for the device adjustable?

Yes, the device features a timing function that is adjustable from 0 to 99 minutes to suit different therapeutic needs.

Which waveforms are available for gastrointestinal treatment?

The device offers multiple waveforms including Square Wave, Sine Wave, Triangle Wave, and Spike Wave, depending on the selected program mode.
