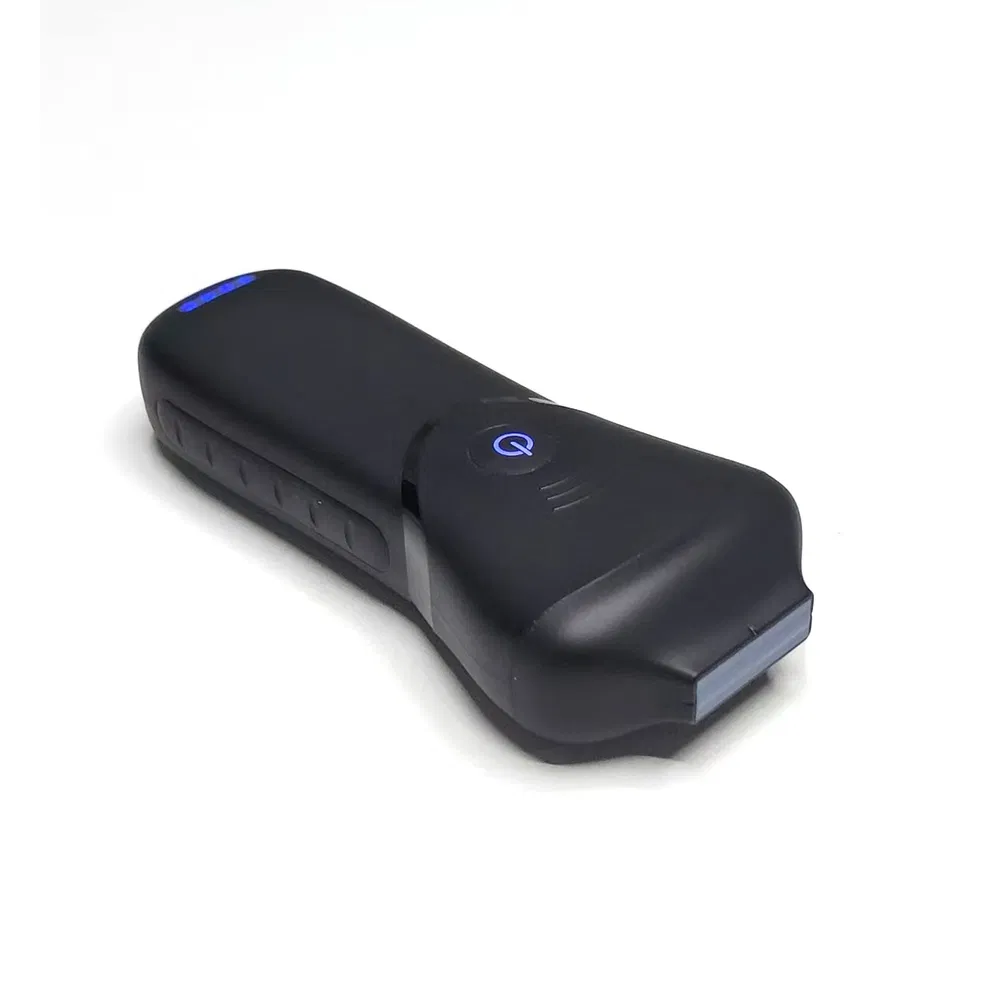

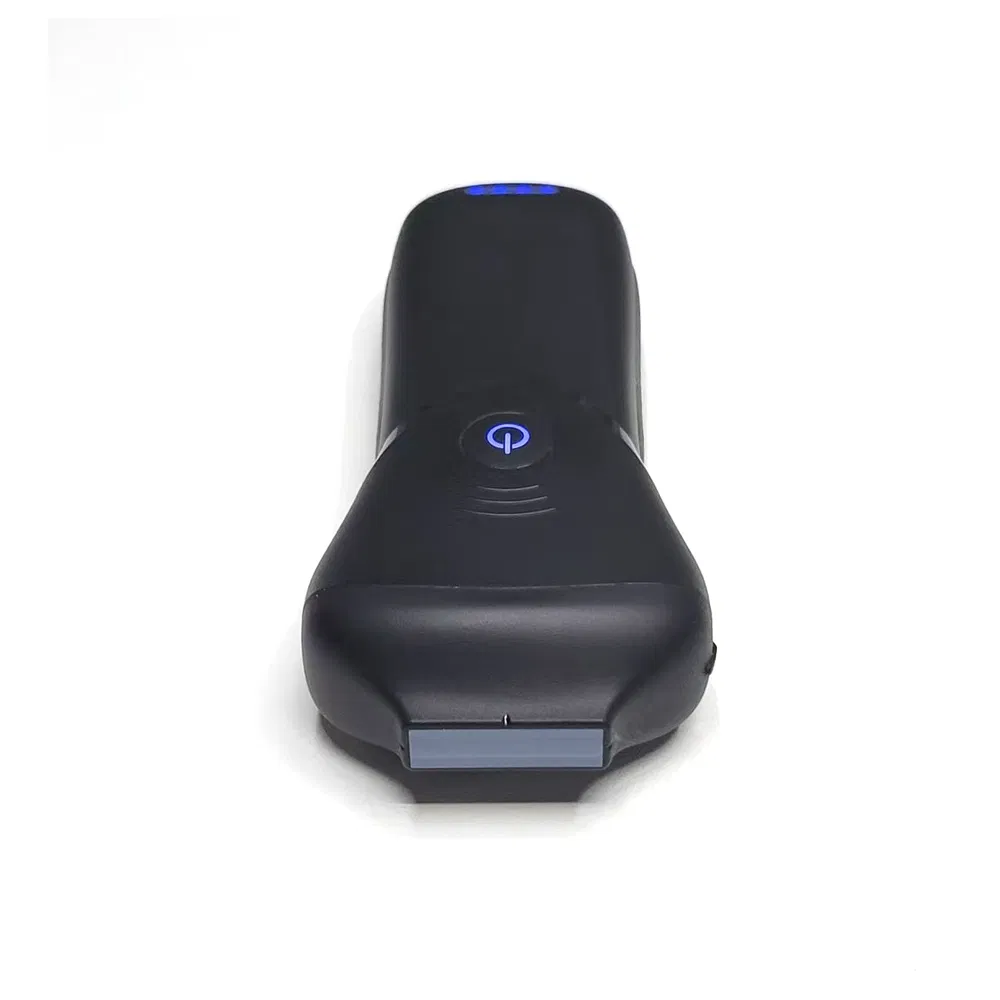

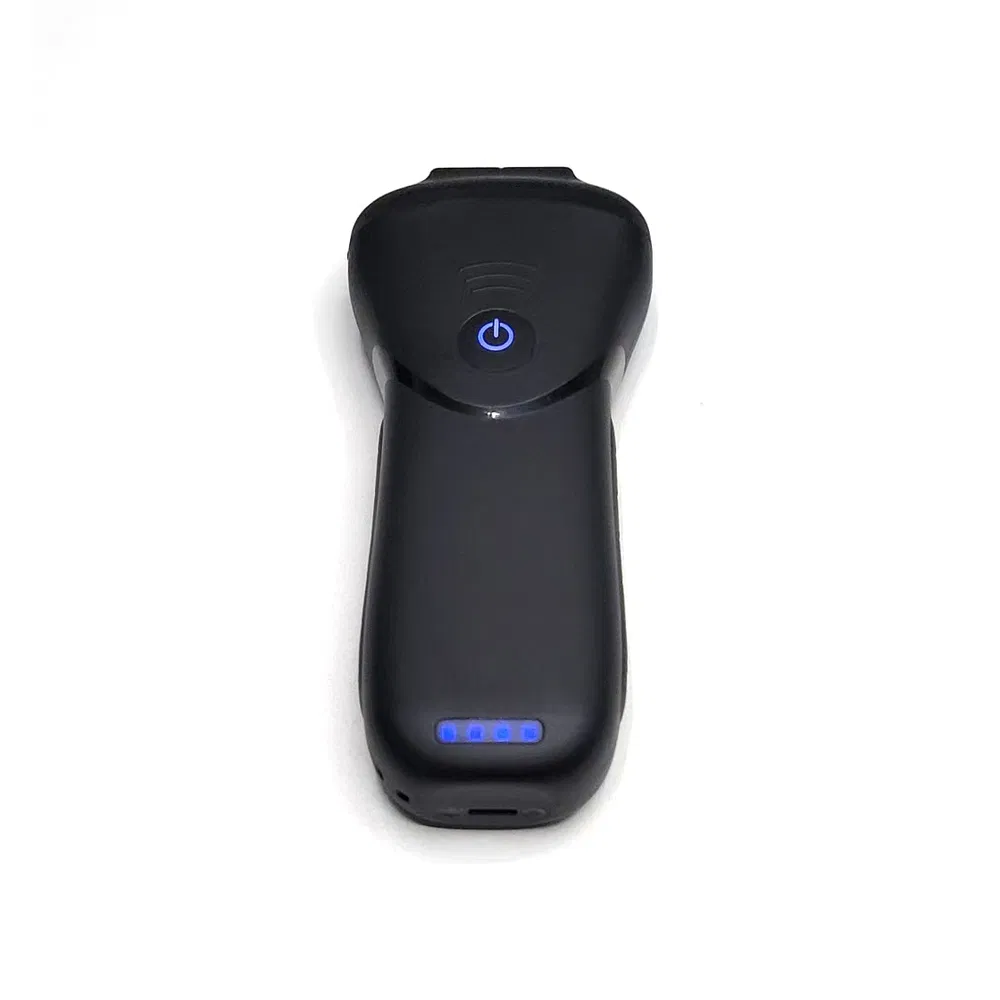

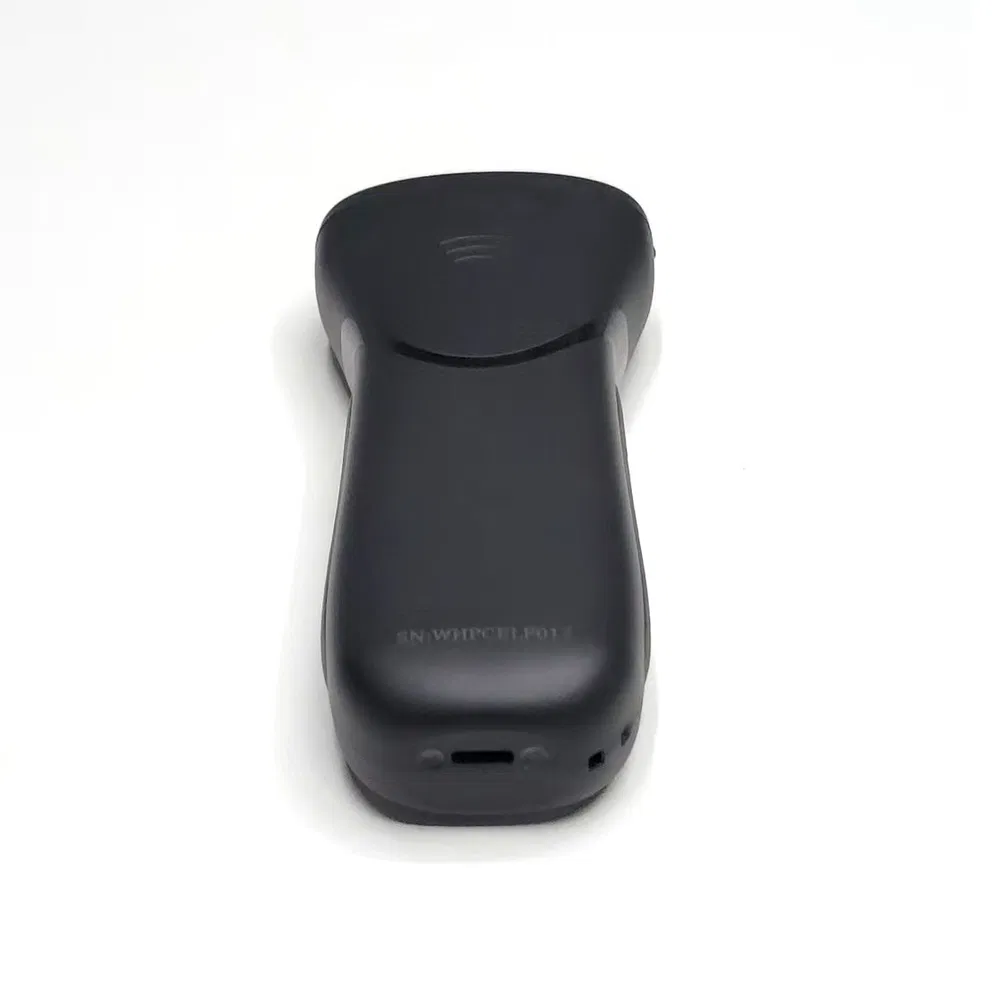

| Model NO. | C10MS Pro |
| Product Name | Handheld Ultrasound |
| Keywords | Medical Diagnostic Equipment |

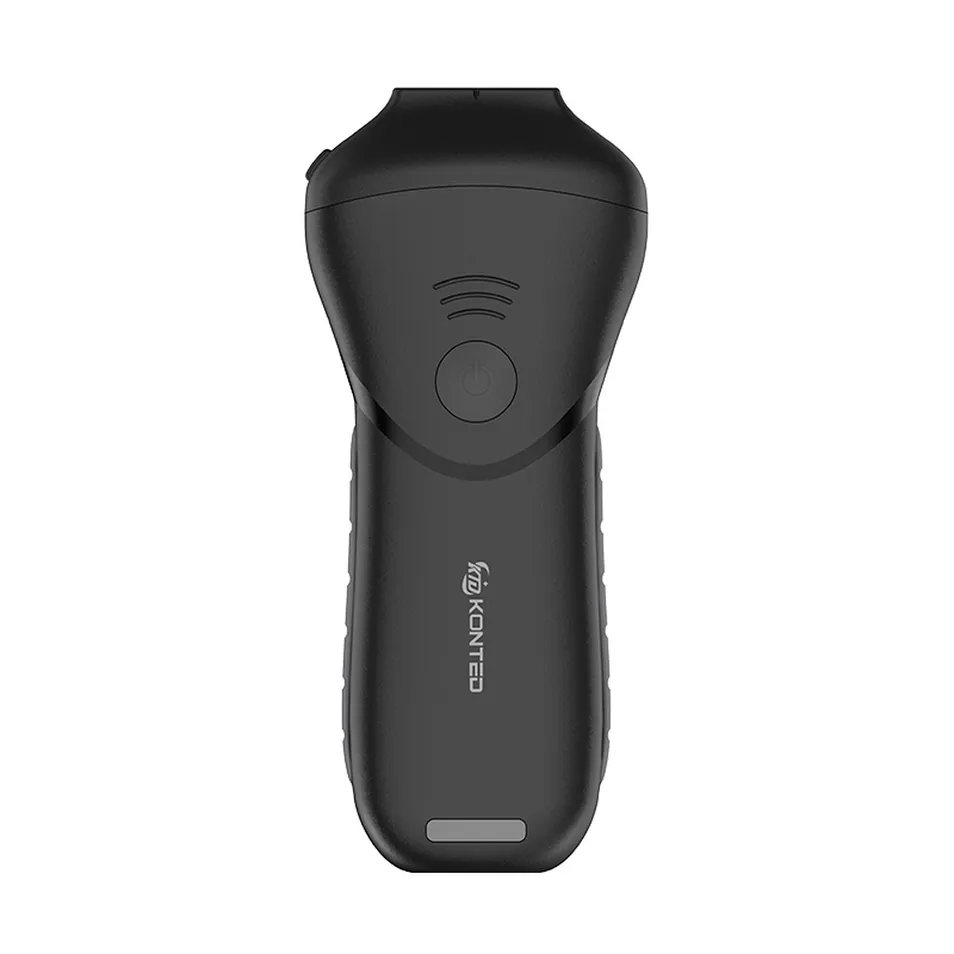

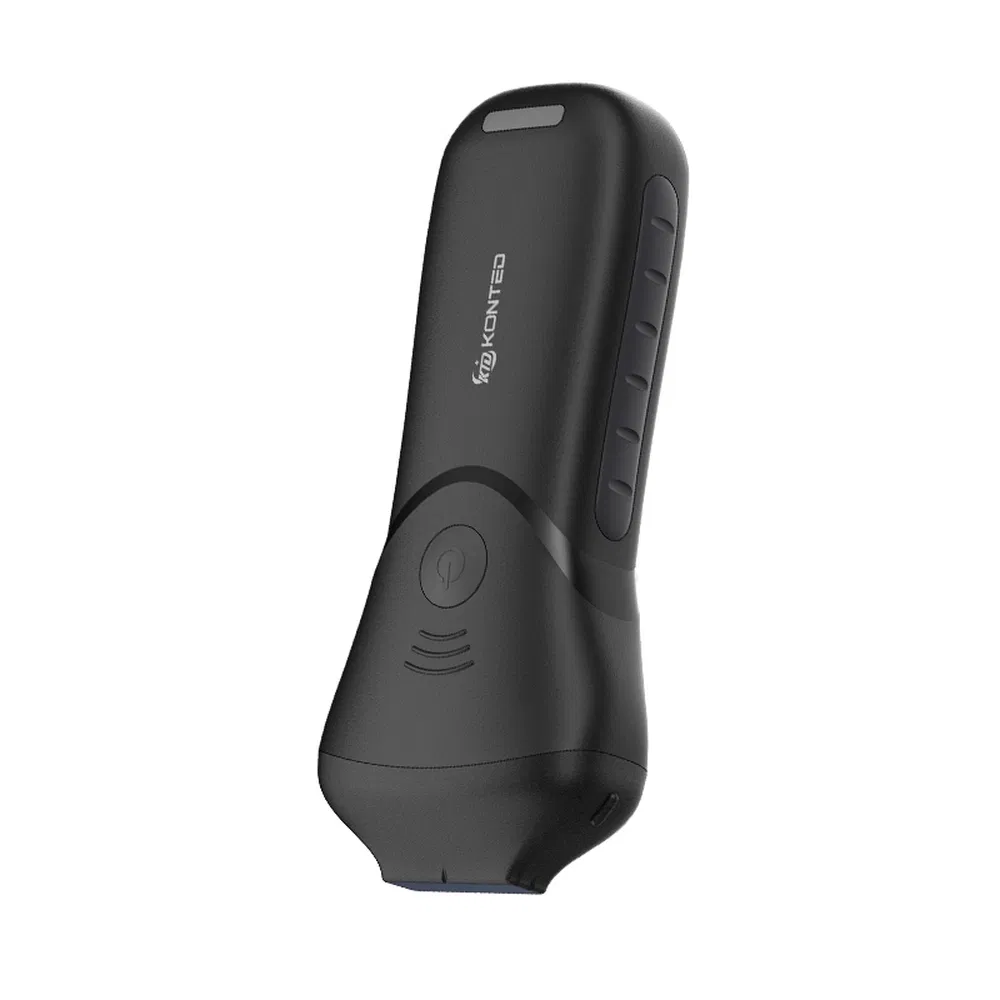

| Probe | Wireless Linear Probe |
| Elements | 192 |
| Frequency | 10-14Mhz |
| Depth | 20-30-40-60Mm |
| Host Support | IOS/Android/Windows, Tablet, Smart Phone, PC |
| Connection | WiFi |
| Battery Life | 3 Hours (Working), 12 Hours (Standby) |
| Production Capacity | 50,000 pieces/Year |
Experience the future of medical diagnostics with our state-of-the-art handheld ultrasound system. This ultra-portable, pocket-sized ultrasound device empowers healthcare professionals to make faster, more accurate clinical decisions right at the point-of-care.

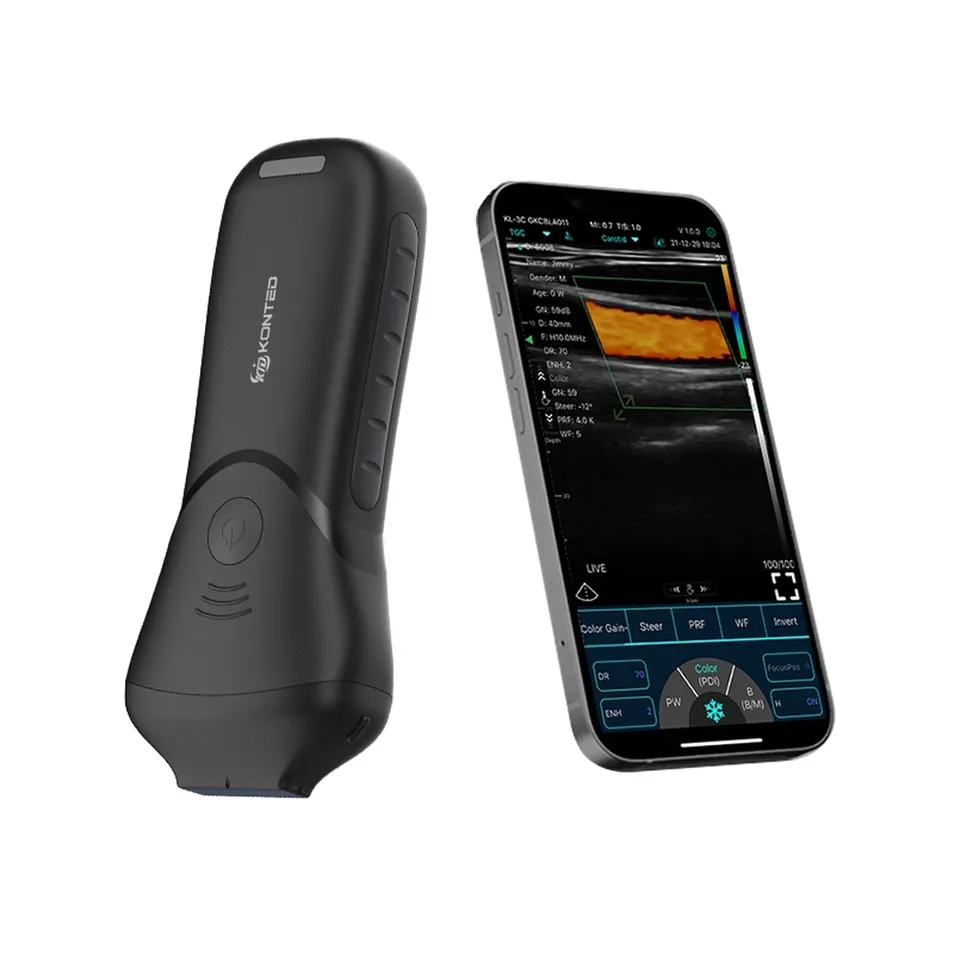

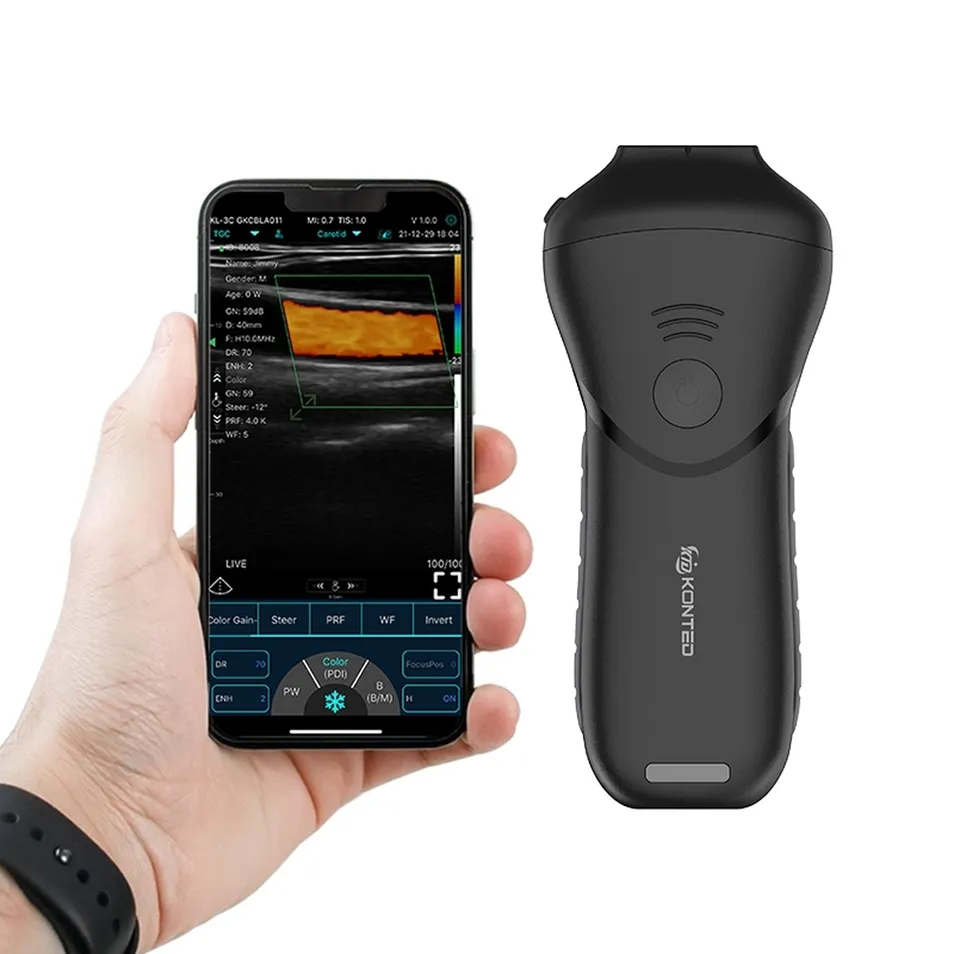

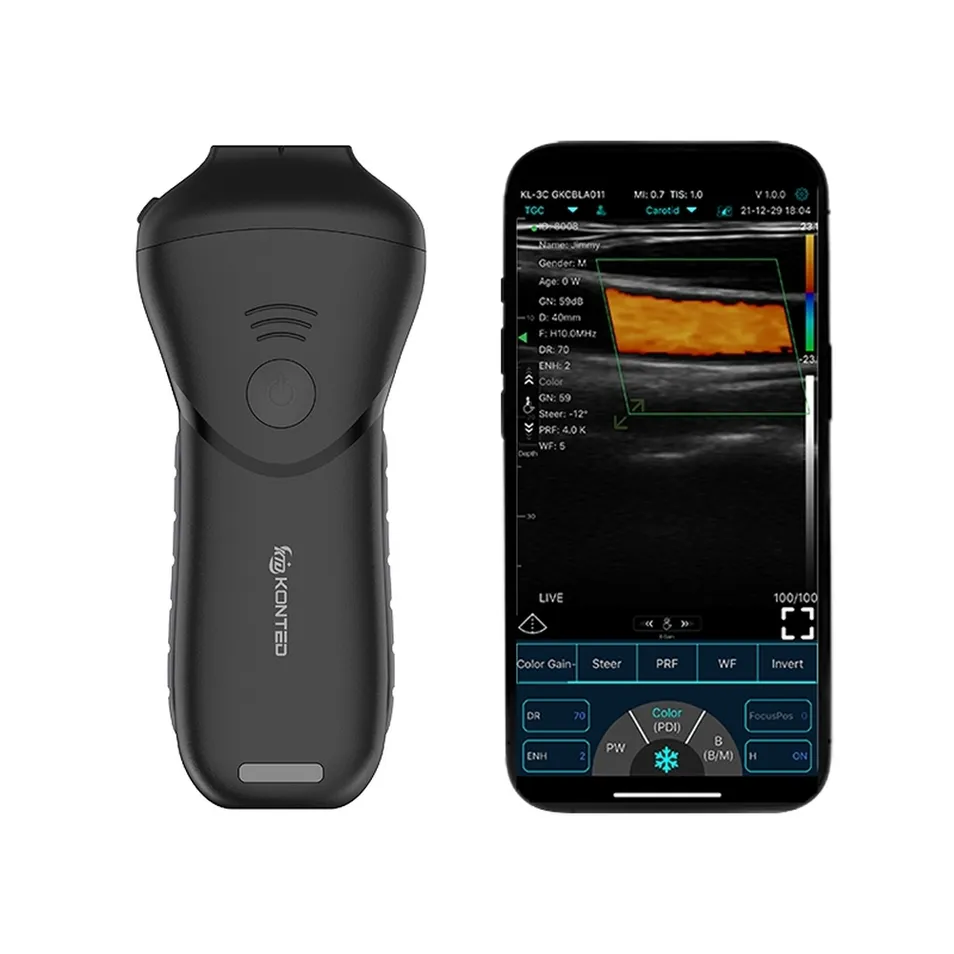

By connecting wirelessly to your smartphone or tablet, it delivers crystal-clear, real-time imaging without the need for bulky, traditional equipment, transforming patient assessment in any setting—from the clinic to the field.
Weighs only a few ounces and fits easily into a lab coat pocket, enabling healthcare providers to carry diagnostic imaging capability anywhere. Perfect for bedside examinations and emergency response.
Enables immediate imaging and diagnosis at the patient's bedside or in ambulances. Reduces wait times and accelerates clinical decision-making efficiency.
Features a simplified, touch-based mobile app interface that reduces learning curves. Healthcare providers can master operation with minimal technical expertise.
| Presets | Thyroid, Small Parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve, Aesthetics |
| Adjustable Parameters | GN(Gain), D(Depth), ENH(Enhancement), DR(Dynamic Range), F(Frequency), FocusPos, PRF, WF, 8TGC |
| Measurement Tools | Length, Area, Circumference, Angle, Trace, Distance, Heart Rate, Velocity, S/D |
| Playback Frames | 100, 200, 500, 1000 Optional |
| Display Mode | B, B/M, Color, PW, PDI, B+B |
| WiFi Type | Built-In WiFi, 802.11G/20MHz/5G/450Mbps |
| Language | English, Chinese, German, Russian, French, Italian, Spanish, Portuguese, Ukrainian |
| Power Source | Built-In 4200MAh Battery (Replaceable) |
| Charging | Wireless Charger, USB Cable |
Extended rechargeable battery life supports hours of continuous scanning. Reliable power management ensures consistent performance throughout busy clinical shifts.
Engineered to withstand demanding clinical environments, including frequent handling and strict cleaning protocols.
