Vascular Access Device Hemodialysis Catheter for Dialysis

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

dialysis catheter medical

Group

All

Logo Printing

With Logo Printing

Length

13cm/15cm/16cm/20cm/30cm

Kit Contents

Dialysis Catheter Clamp Guide Wire Scalpel, Dilato

Tip Shape

Curved, Straight (2-Lumen)

Use for

Aneshesiology & Critical Care

Package

Plastic Blister

Specification

8F/11.5F/12F

Production Capacity

1,000,000 Pieces Per Month

Product Description

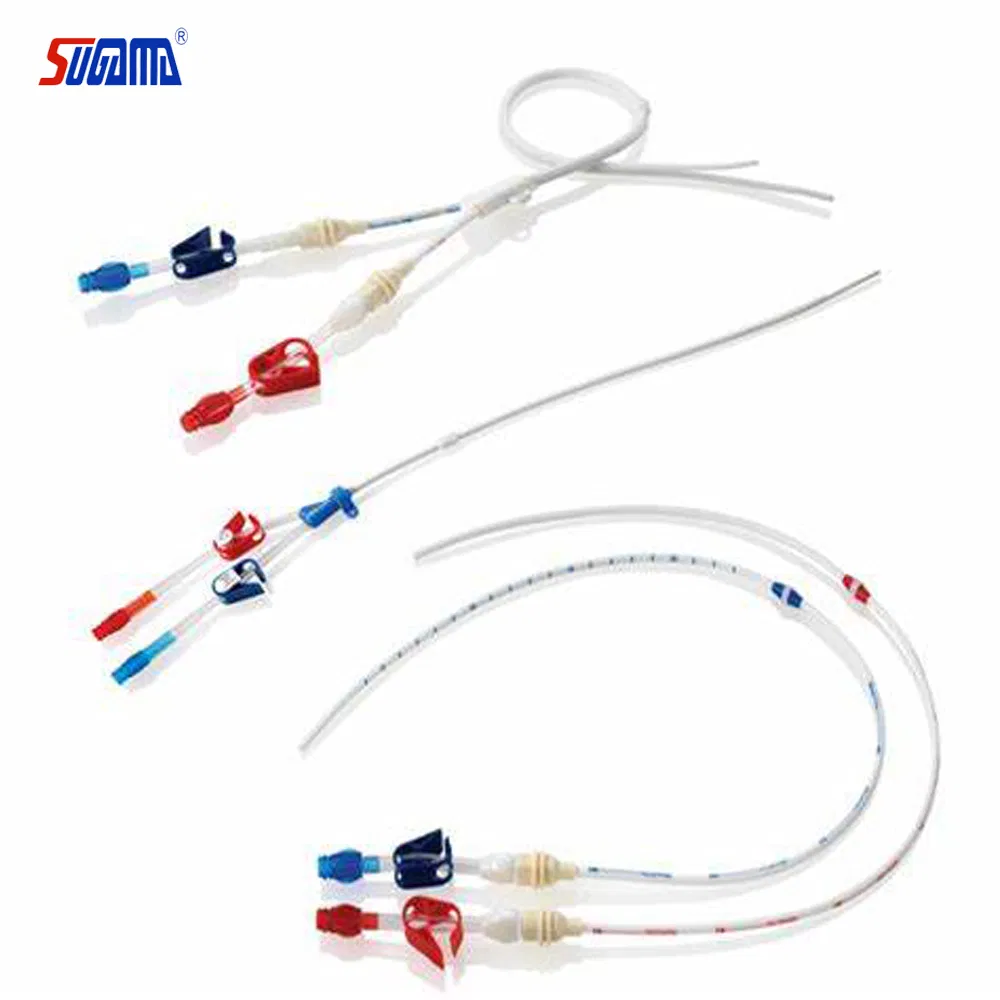

Hemodialysis catheters are single-lumen or multiple-lumen catheters that provide temporary vascular access for hemodialysis until a permanent access is available or until another type of dialysis is substituted.

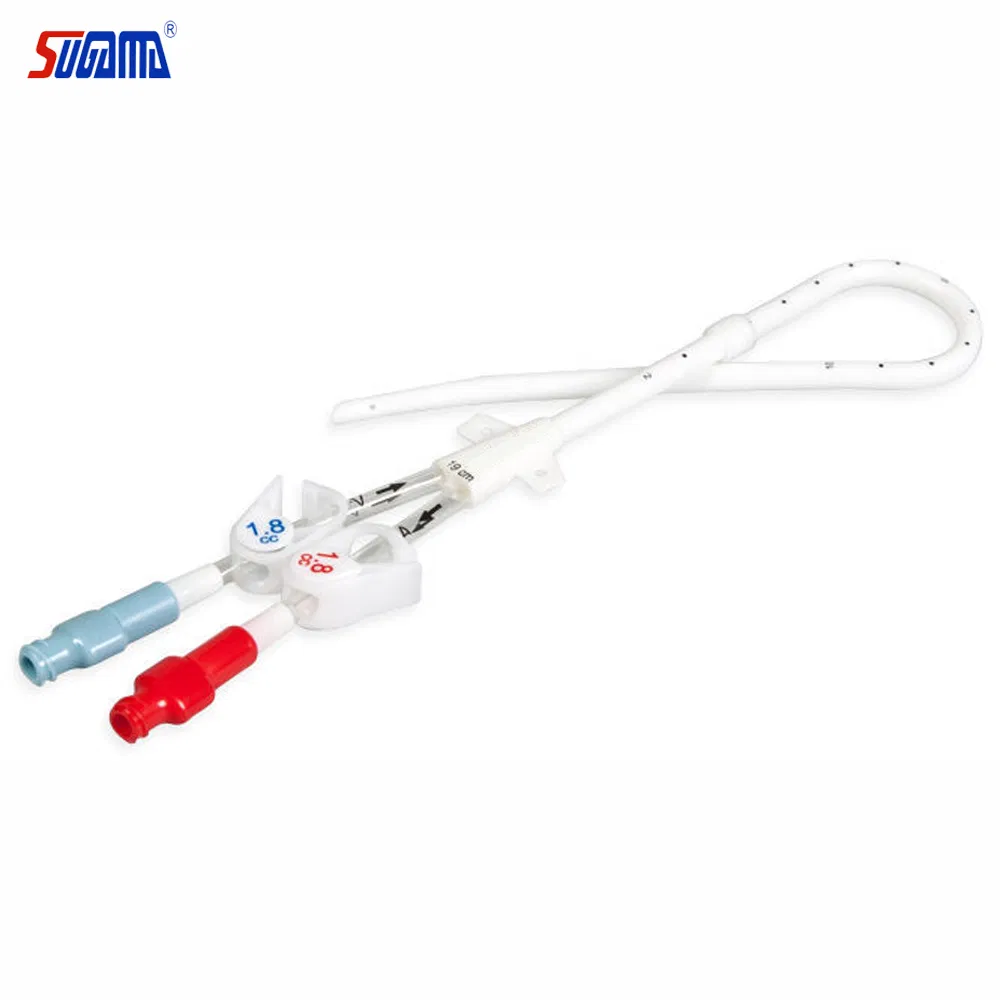

The multiple lumen catheters contain two large bore lumens that are connected to the dialysis machine to form a complete circuit for the removal and return of the patient's blood during treatment.

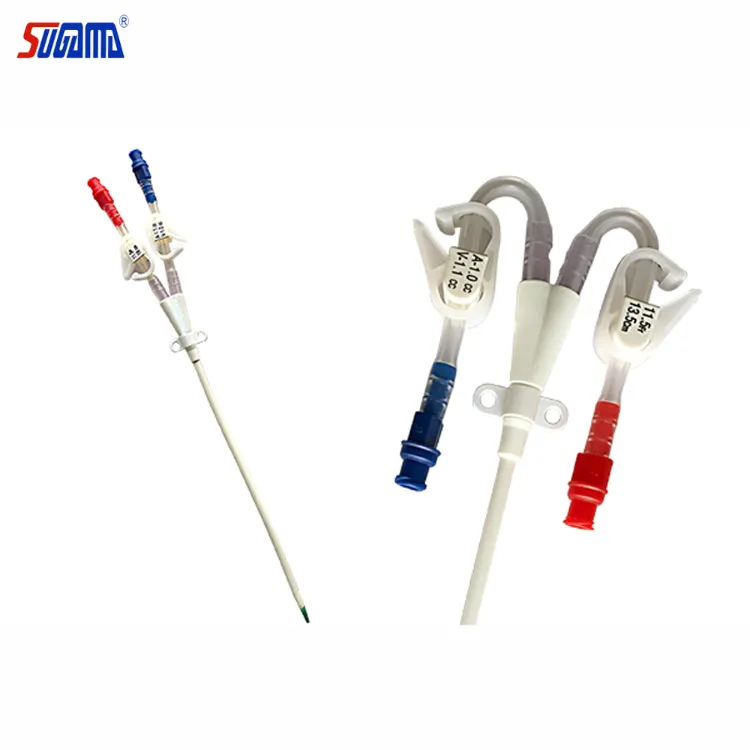

✅ Advanced Soft-Tip: Excellent blue soft-tip design to significantly reduce the risk of vascular trauma.

🌡️ Thermosensitive Material: Medical grade material catheter automatically softens under body temperature (37ºC).

🔍 Radiopacity: Built with radiopaque materials to ensure correct and precise placement of the catheter tip.

Technical Specifications

REF Number	Size (Fr)	Extension Line	Length (cm)
610101	8	Straight	10
610102	8	Curved	10
610103	8	Straight	13
610104	8	Curved	13
610105	8	Straight	16
610106	8	Curved	16
610107	8	Straight	20
610108	8	Curved	20

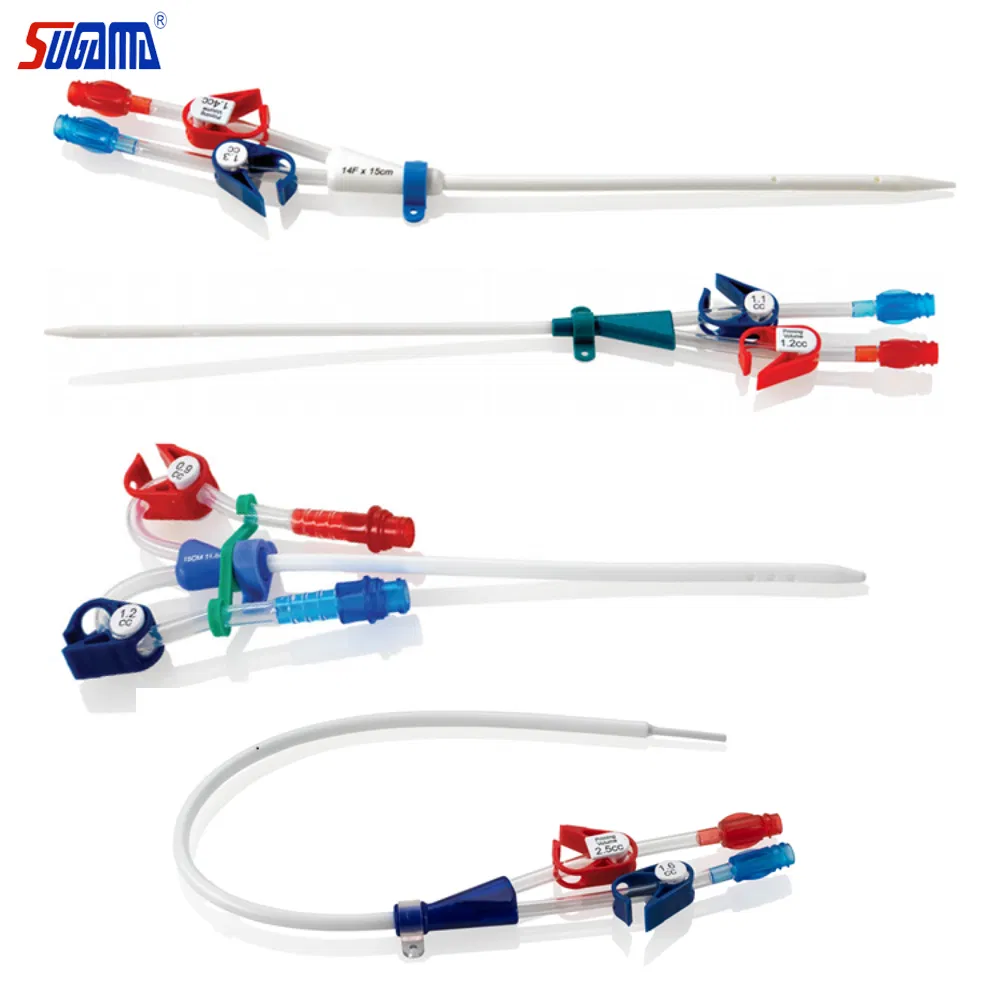

Product Visuals

Frequently Asked Questions (FAQ)

1. What is the primary purpose of this hemodialysis catheter? It provides temporary vascular access for hemodialysis until permanent access is established or an alternative dialysis method is utilized.

2. How does the "blue soft-tip" benefit the patient? The specially designed blue soft-tip is engineered to significantly minimize the risk of vascular trauma during insertion and placement.

3. Does the catheter material change once inside the body? Yes, the medical-grade material is thermosensitive and automatically softens when it reaches body temperature (37ºC) for better biocompatibility.

4. How is correct placement of the catheter tip verified? The catheter is made with radiopaque materials, allowing medical professionals to confirm precise placement using imaging technology.

5. What sizes and lumen configurations are available? We offer single, double, and triple lumen configurations in sizes ranging from 8F to 12F, with various lengths from 10cm to 30cm.

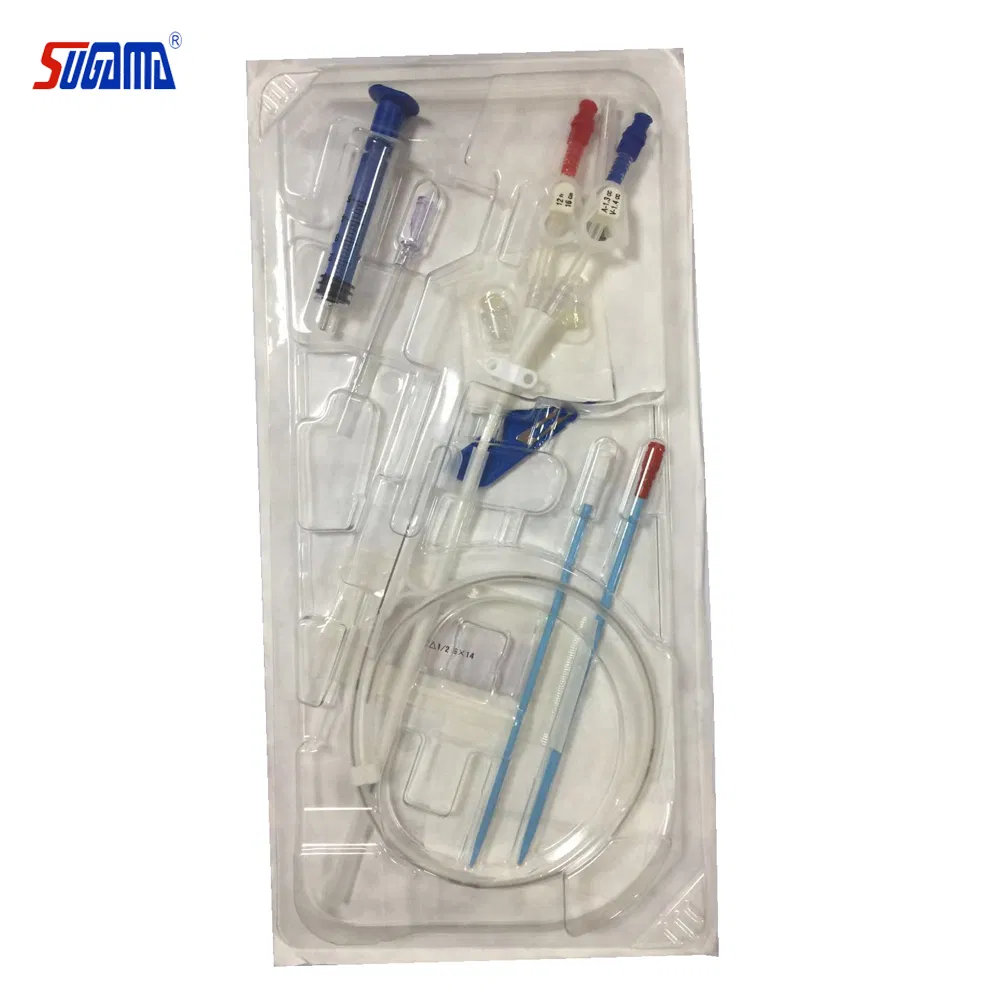

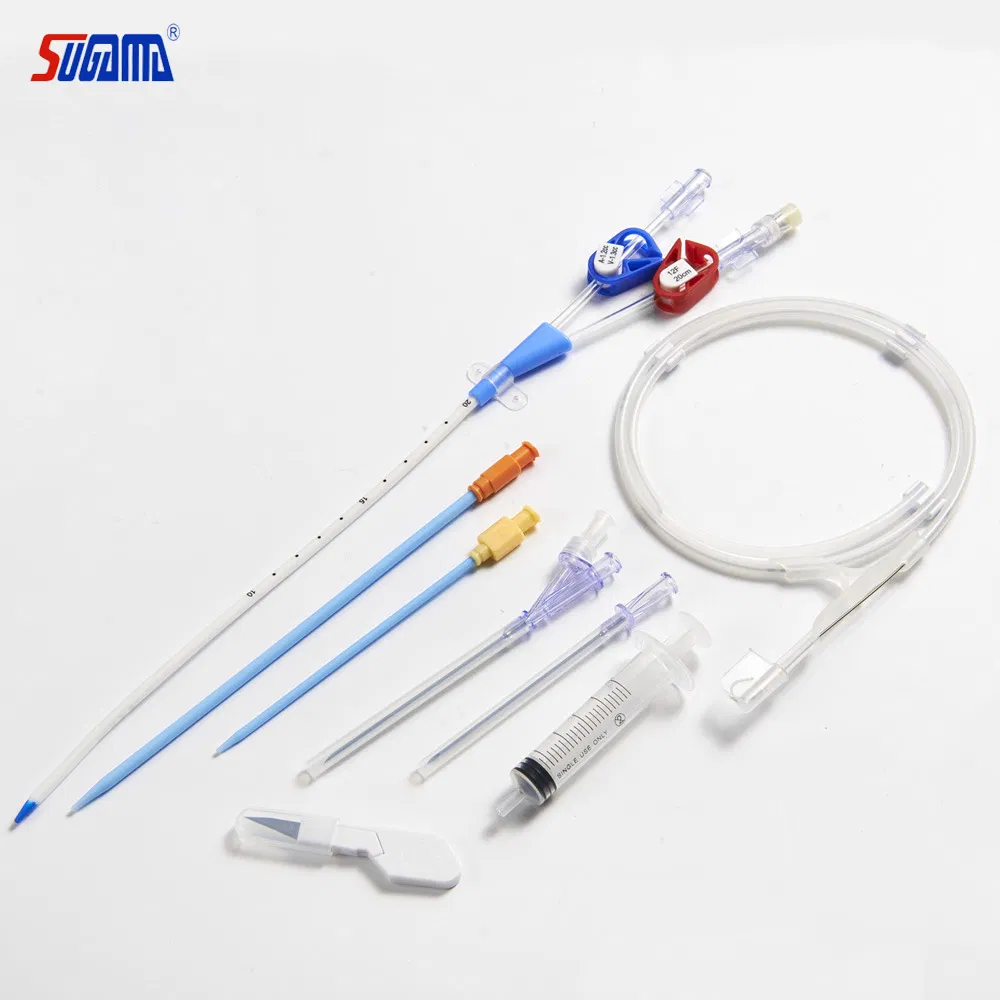

6. What is included in the standard dialysis catheter kit? The kit typically includes the dialysis catheter, a clamp, a guide wire, a scalpel, and a dilator, all packaged in a sterile plastic blister.
