Product Description

📋

Basic Information

Sterilization:

Ethylene Oxide Sterilization

Group:

Adult

Logo Printing:

With Logo Printing

Key Words:

Introducer Sheath

Package:

Sterile

Transport Package:

Paper Bag + Inner Box + Outer Box

Specification:

4/4.5/5/6/7/8Fr * 9-16cm

Origin:

China

🔬

Product Description

Vascular Access Introducer Sheath Header

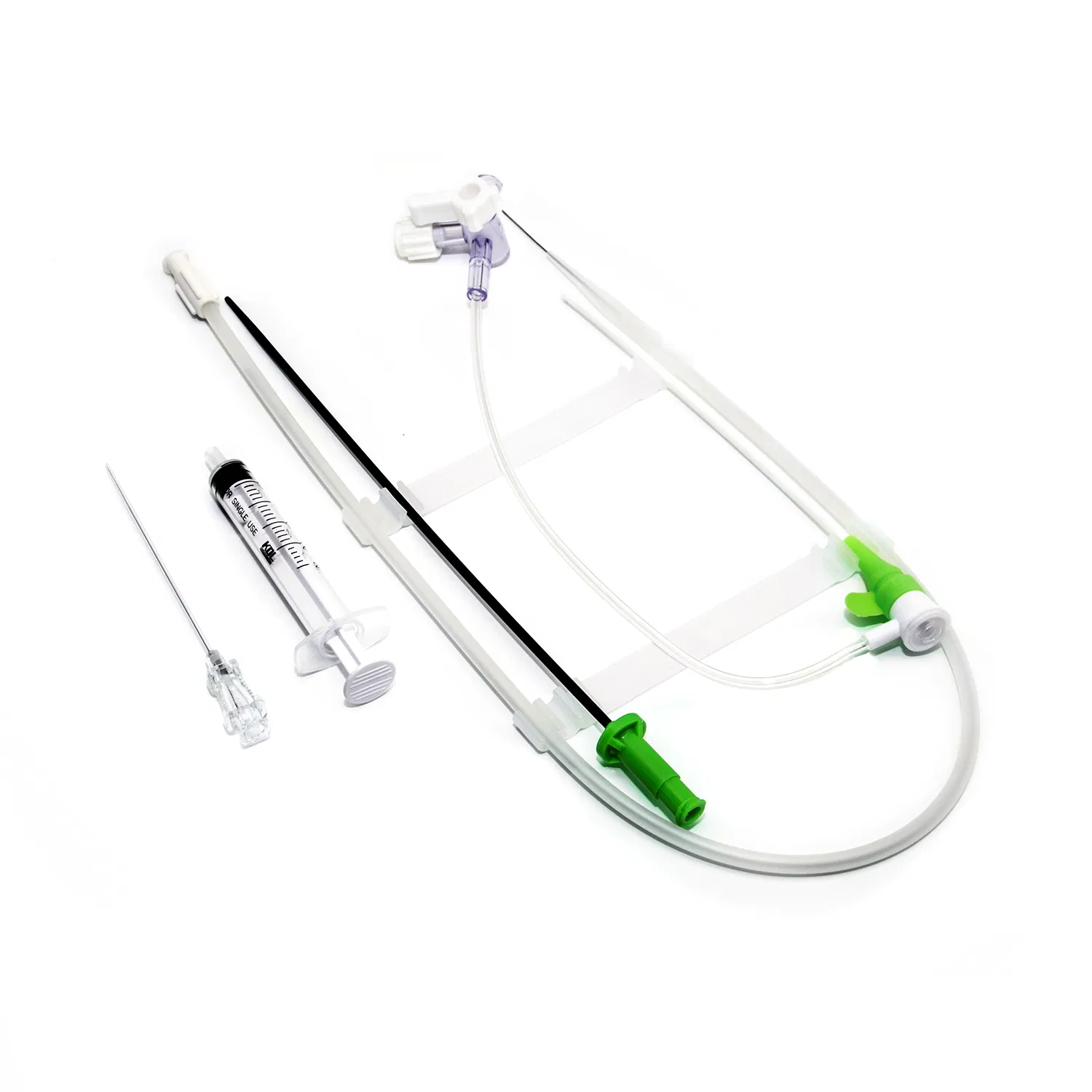

The device is intended for use in patients requiring the percutaneous retrieval of indwelling catheters, cardiac leads, fragments of catheter tubing or guidewire, and other foreign objects. It consists of a sheath, a dilator, a guide wire, an introducer, and a syringe. This product is used to insert blood vessels to establish percutaneous access to another device.

Note: All components that enter blood vessels are radiopaque.

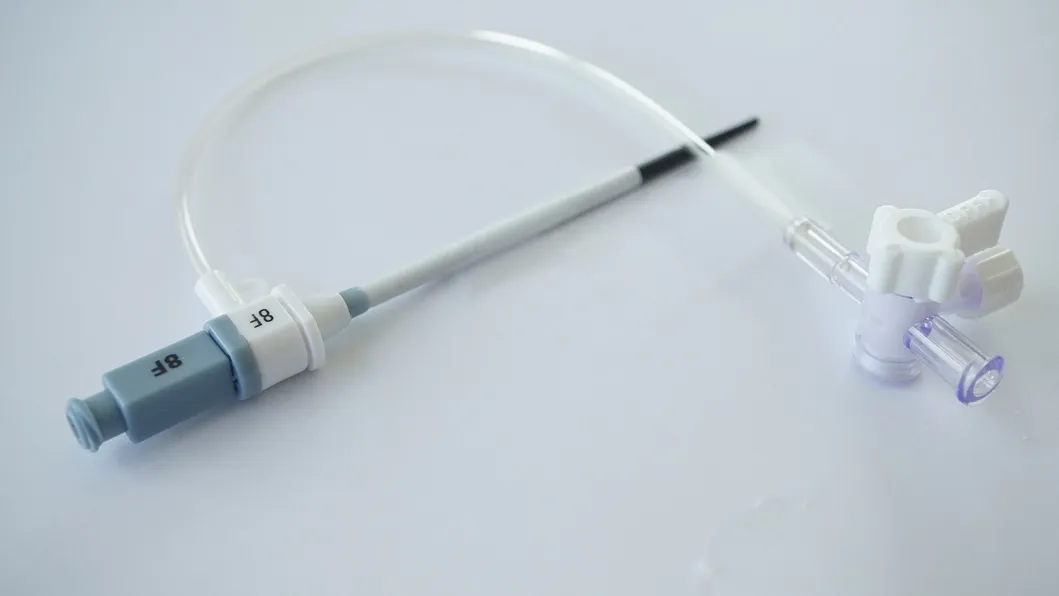

Main Components

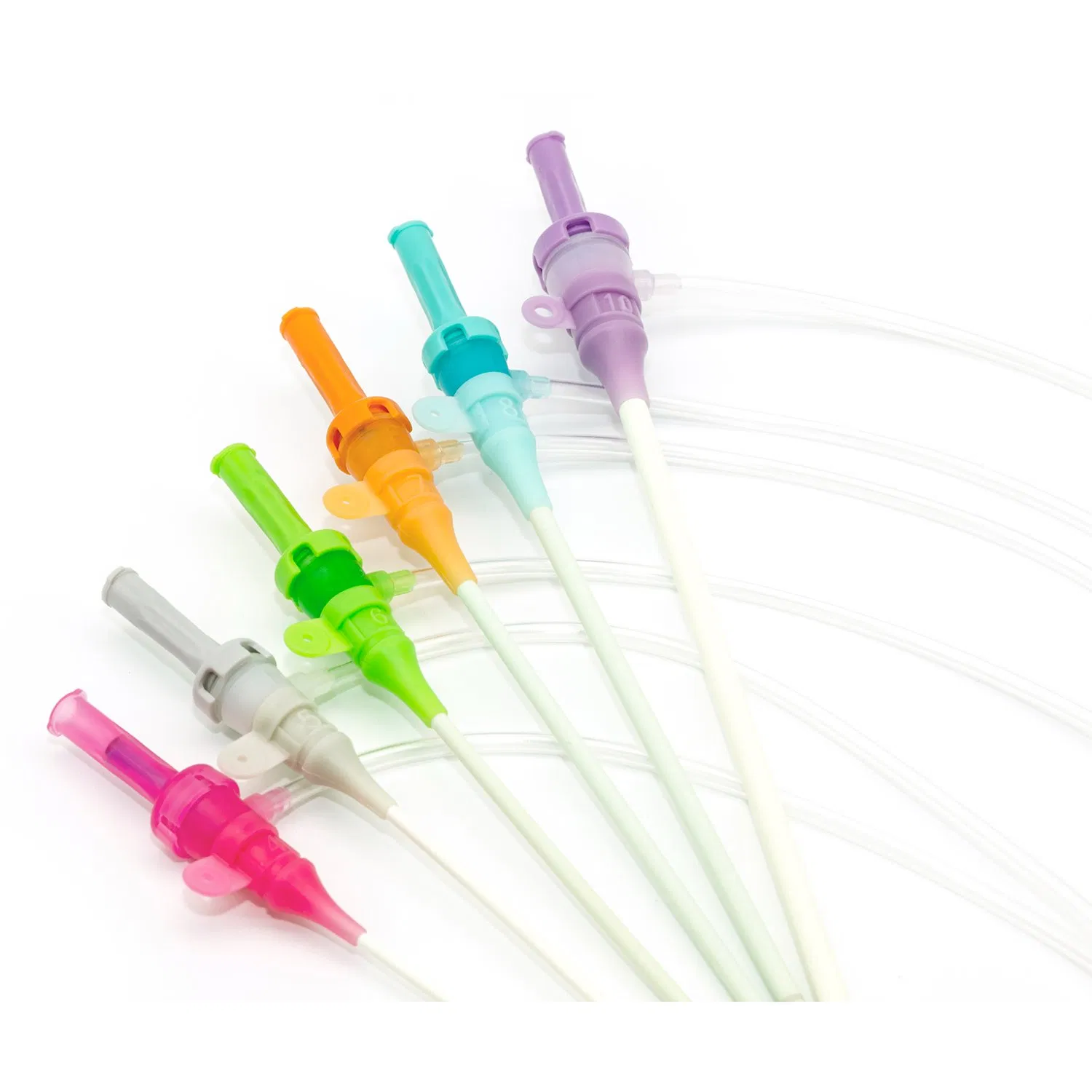

Sheath: Incorporates a 1-way valve and a 3-way stopcock connected by a side tube. Designed to be highly flexible and resist kinking. It can be used with catheters of the same size or up to two Fr sizes smaller without leakage.
Dilator: Features a precise fit within the sheath, allowing for simultaneous motion of both components.
Guide Wire: Features a super-elastic core wire with a smooth, hemorepellant surface coating to prevent kinking.
Syringe: 2.5ml standard syringe included.
Introducer: Comprises an inner metallic needle and a plastic cannula.

⭐

Key Advantages

Works perfectly with most guidewires and catheters currently available on the market.
Specialized materials provide excellent biocompatibility, ensuring smooth operation while minimizing patient trauma.
Proven trackability and superior kink resistance for an enhanced clinical user experience.

📊

Technical Specifications

Model	Size (Fr)	Sheath OD (mm)	Sheath ID (mm)	Effective Length (mm)	Dilator OD (mm)	Dilator Length (mm)	Guide Wire (mm)	Puncture Needle (mm)	Syringe
CS-0409	4Fr	2.0	1.55	90	1.47	140	0.53×450	0.91×78	2.5mL
CS-0415	4Fr	2.0	1.55	150	1.47	210	0.53×450	0.91×78	2.5mL
CS-0511	5Fr	2.6	1.95	110	1.87	170	0.89×450	0.91×78	2.5mL
CS-0516	5Fr	2.6	1.95	160	1.87	220	0.89×450	0.91×78	2.5mL
CS-0611	6Fr	2.8	2.25	110	2.20	170	0.89×450	0.91×78	2.5mL
CS-0616	6Fr	2.8	2.25	160	2.20	220	0.89×450	0.91×78	2.5mL
CS-0711	7Fr	3.2	2.53	110	2.47	170	0.89×450	0.91×78	2.5mL
CS-0811	8Fr	3.5	2.85	110	2.78	170	0.89×450	0.91×78	2.5mL

🖼️

Product Gallery

❓

Frequently Asked Questions

What is the primary use of this Introducer Sheath?

It is designed to establish percutaneous access to blood vessels, primarily for the retrieval of indwelling catheters, cardiac leads, and other foreign objects.

Are the components visible under X-ray?

Yes, all components of the kit that enter the blood vessels are radiopaque for clear visibility during procedures.

Does the sheath prevent blood leakage during catheter exchange?

Yes, the sheath incorporates a 1-way valve that allows for the use of catheters of the same size or up to two Fr sizes smaller without leakage.

What measures are taken to prevent kinking?

The sheath is made of highly flexible materials designed to resist kinking, and the guide wire features a super-elastic core to maintain structural integrity.

How is the product sterilized?

The product is sterilized using Ethylene Oxide (EO) and comes in a sterile package to ensure safety and hygiene.

Is the guide wire coated for smooth insertion?

Yes, the guide wire is treated with a smooth, hemorepellant surface coating to facilitate smooth movement and minimize friction.
