Home > Vascular Access Sheaths > with Hemostasis Valve Hydrophilic Medical Sheath Introducer
with Hemostasis Valve Hydrophilic Medical Sheath Introducer
with Hemostasis Valve Hydrophilic Medical Sheath Introducer
with Hemostasis Valve Hydrophilic Medical Sheath Introducer
with Hemostasis Valve Hydrophilic Medical Sheath Introducer
with Hemostasis Valve Hydrophilic Medical Sheath Introducer
1 / 5
with Hemostasis Valve Hydrophilic Medical Sheath Introducer
with Hemostasis Valve Hydrophilic Medical Sheath Introducer
with Hemostasis Valve Hydrophilic Medical Sheath Introducer
with Hemostasis Valve Hydrophilic Medical Sheath Introducer
with Hemostasis Valve Hydrophilic Medical Sheath Introducer

with Hemostasis Valve Hydrophilic Medical Sheath Introducer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
CS-0611
Sterilization
Ethylene Oxide Sterilization
Guarantee Period
Two Years
Group
Adult
Logo Printing
Accept Customized Item
OEM/ODM
Accept
Deliver Time
2-3 Weeks
Package
Sterile
Specification
4/4.5/5/6/7/8Fr * 9-16cm
Production Capacity
2000PCS/Day
🔍

Product Description

Medical Sheath Introducer

The Sheath Introducer consists of a sheath, a dilator, a guide wire, an introducer, and a syringe. This product is used to insert blood vessels to establish percutaneous access for other medical devices.

Hydrophilic Medical Sheath
🛠️

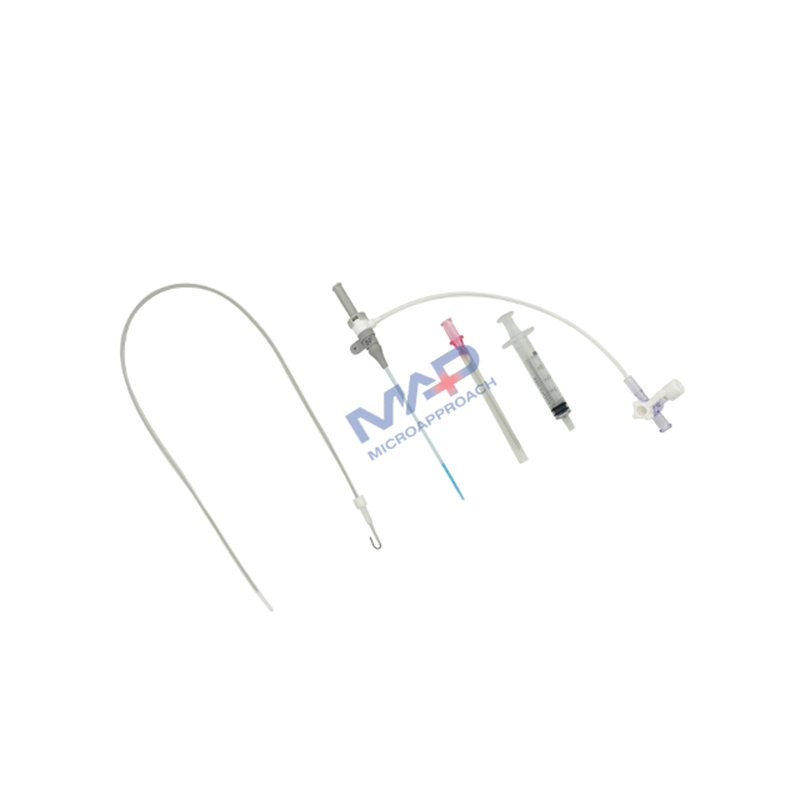

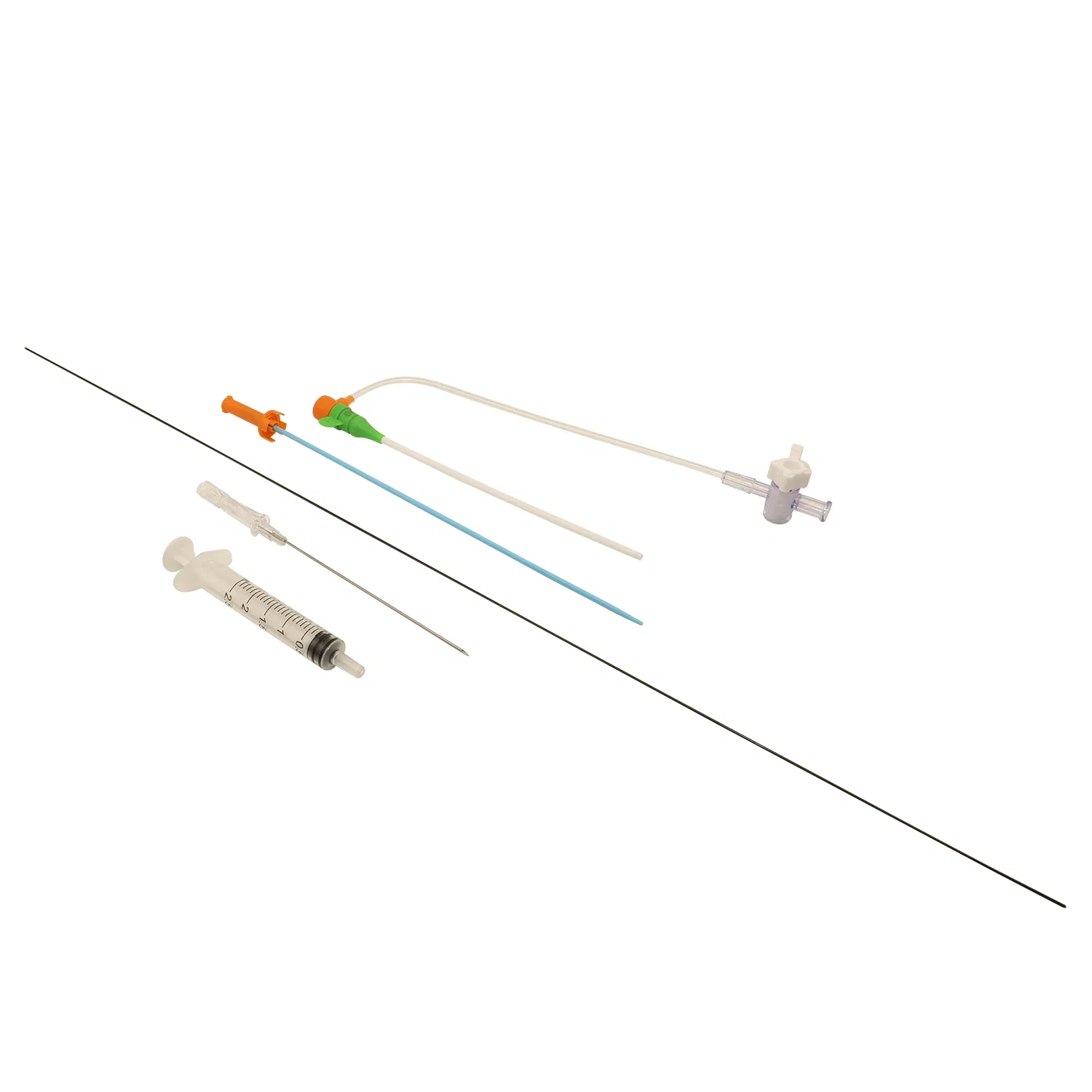

Included Components

  • Sheath: Incorporates a 1-way valve and a 3-way stopcock connected by a side tube. Designed to resist kinking and maintain hemostasis even with smaller catheters.
  • Dilator: Precise fit within the sheath allows for smooth, simultaneous motion.
  • Guide Wire: Features a super-elastic core wire with a smooth, hemorepellant surface coating to prevent kinking.
  • Syringe: Standard 2.5ml syringe included.
  • Introducer: Consists of an inner metallic needle and a plastic cannula.
🌟

Key Advantages

  • Robust hemostatic valves to minimize backbleeding and air aspiration.
  • Smooth transitions and gradual tapers designed for seamless insertion with reduced force.
  • Flexible strain relief for superior kink resistance.
  • Atraumatic tip design for patient safety.
  • Reliable seal balancing pass-through friction and hemostasis.
✅

Ease of Use

  • Snap-lock feature secures dilator in sheath during insertion.
  • Innovative flexible rotating suture ring for easy manipulation and convenient placement.
  • Multiple wire and needle configurations to meet diverse radial access needs.
Sheath Detail
📊

Technical Specifications

Model Sheath (ID) Length of Dilator (cm) Guide Wire Needle Syringe
CS-04094Fr90.021" x 45cm20G2.5mL
CS-04154Fr150.021" x 45cm20G
CS-05115Fr110.035" x 45cm18G
CS-05165Fr160.035" x 45cm20G
CS-06116Fr110.035" x 45cm18G
CS-06166Fr160.035" x 45cm18G
CS-07117Fr110.035" x 45cm18G
CS-08118Fr110.035" x 45cm18G
Product View 1 Product View 2 Product View 3

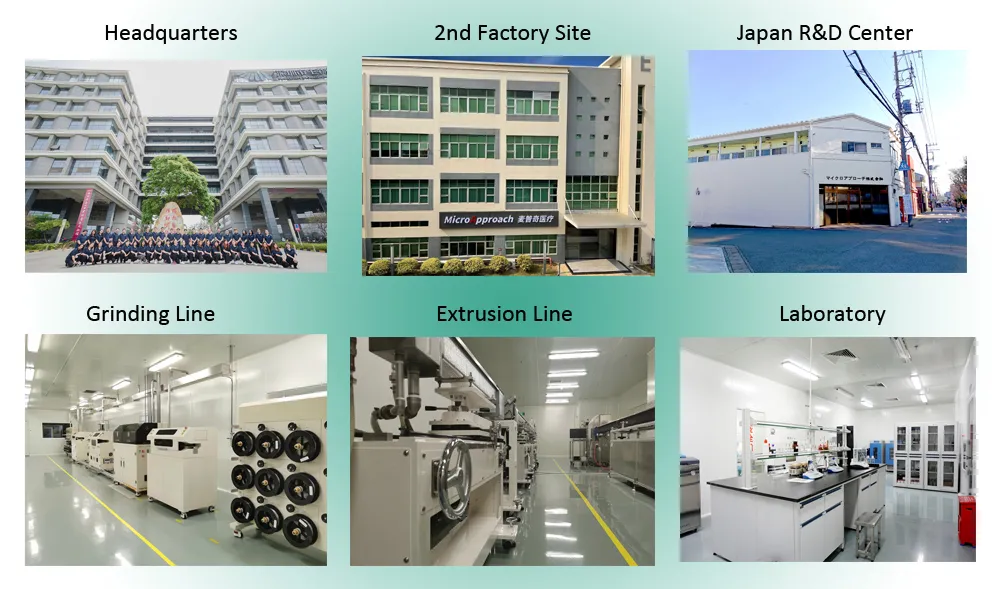

Facility Overview
❓

Frequently Asked Questions

What is the primary use of the Sheath Introducer?
The Sheath Introducer is designed to establish percutaneous access to blood vessels, allowing other medical devices to be inserted safely and efficiently.
How is the product sterilized for safety?
All kits are sterilized using Ethylene Oxide (EO) Sterilization and are provided in sterile packaging to ensure clinical safety.
Does the sheath resist kinking during procedures?
Yes, the sheath is highly flexible and specifically designed with strain relief features to resist kinking during insertion and manipulation.
What sizes are available for this device?
We offer a range of sizes including 4Fr, 5Fr, 6Fr, 7Fr, and 8Fr, with varying dilator lengths from 9cm to 16cm to suit different clinical needs.
Can I request customized branding or specifications?
Yes, we accept both OEM and ODM orders, including customized logo printing and configuration adjustments to meet global customer requirements.
What is the shelf life of the sterile kit?
The product comes with a quality guarantee period of two years from the date of manufacture, provided the packaging remains unopened and undamaged.
