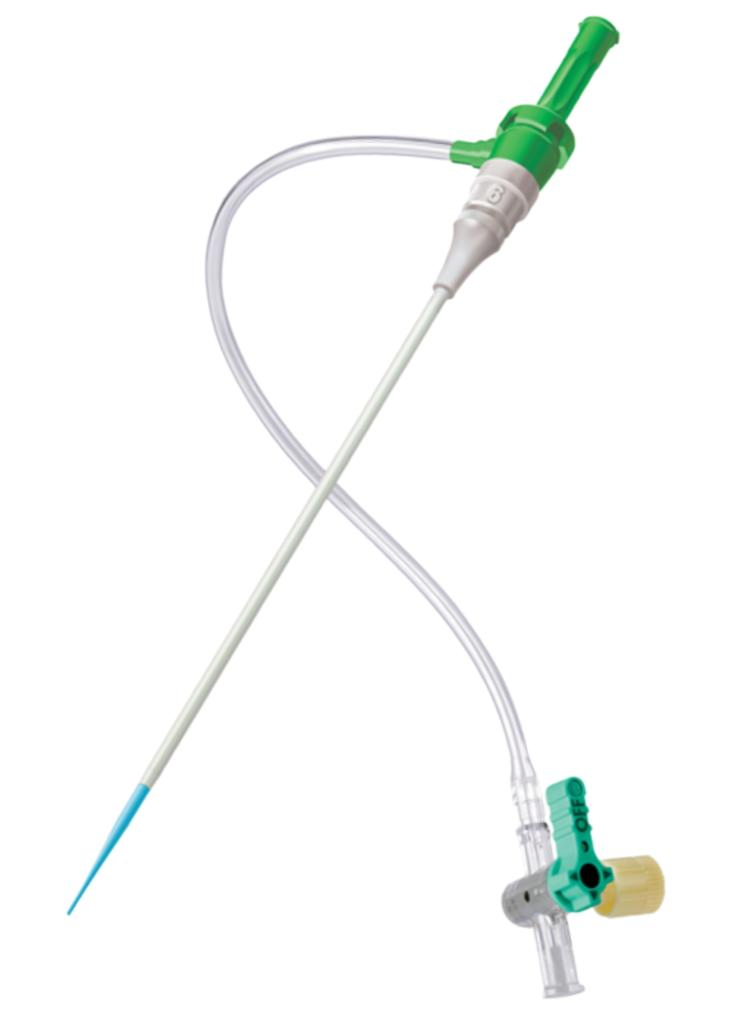

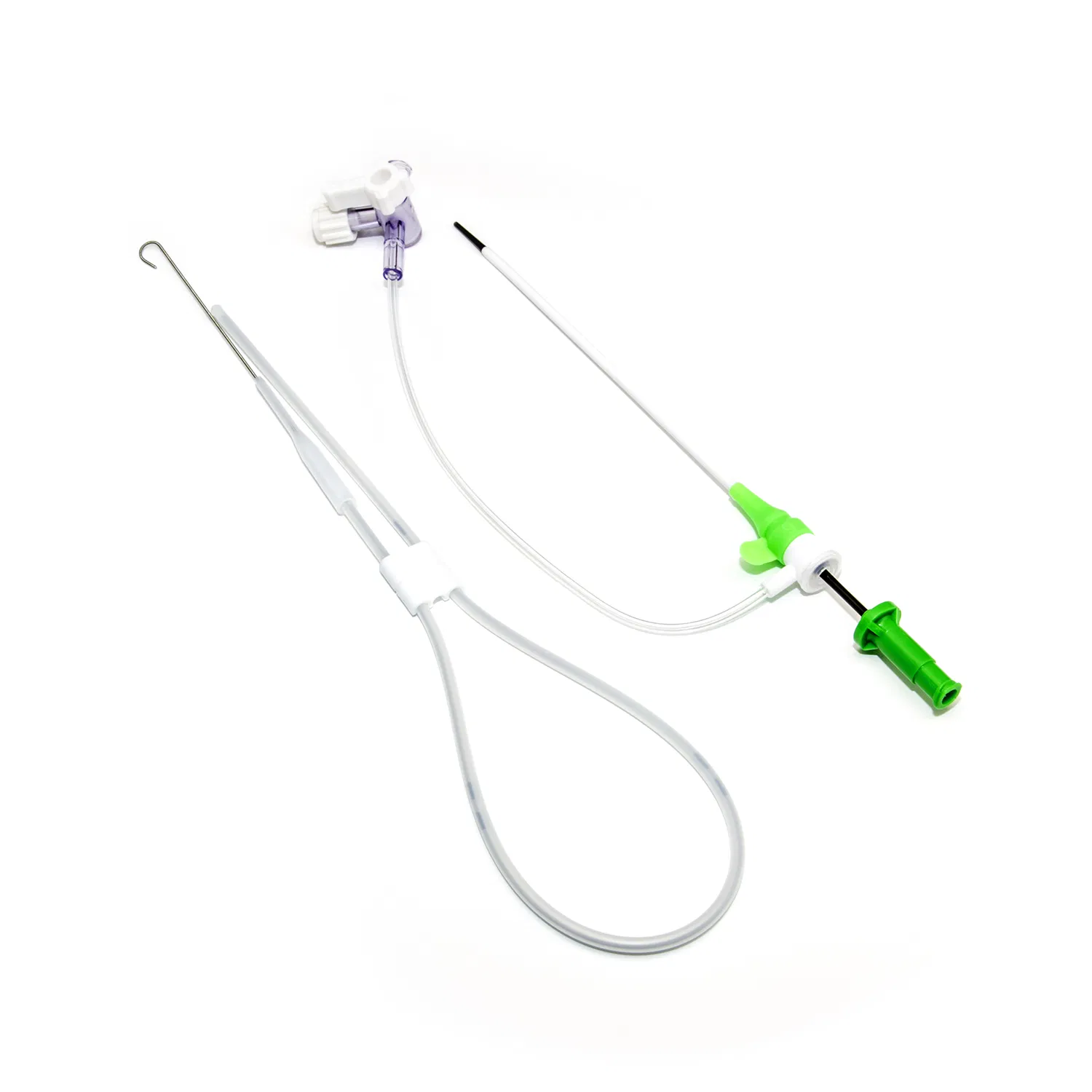

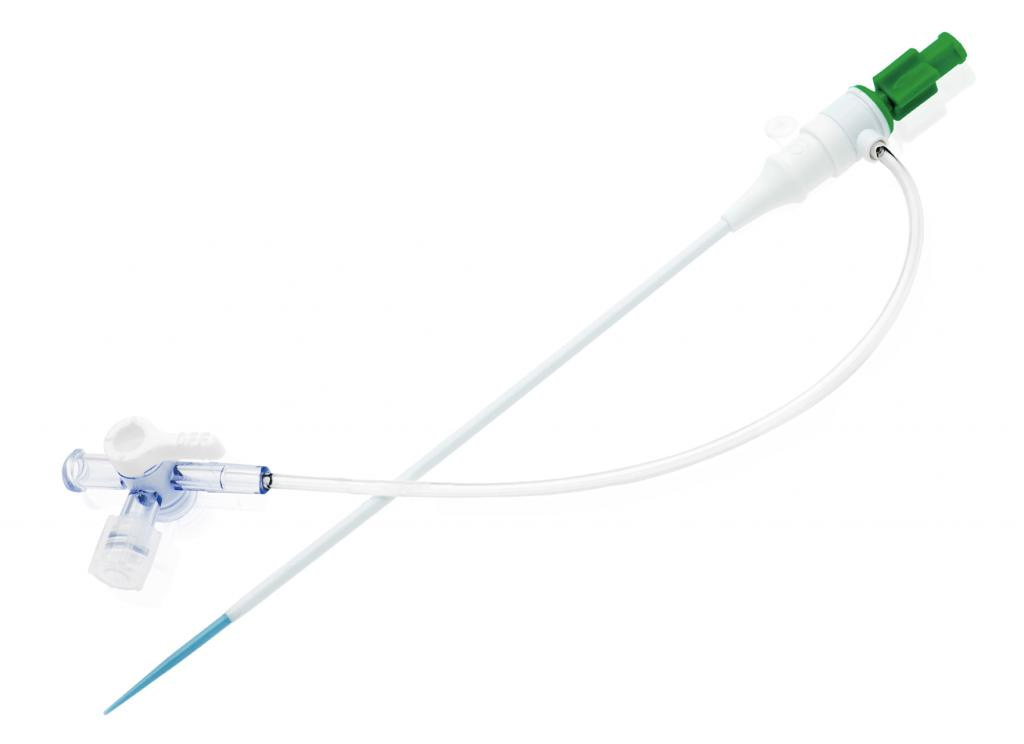

Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath
Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath
Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath
Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath
Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath
1 / 5
Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath
Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath
Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath
Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath
Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath

Microapproach Disposable Femoral or Trans Radial Vascular Access Introducer Sheath

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO. CS
Sterilization Ethylene Oxide (EO)
Guarantee Period 3 Years
Group Adult
Category Introducer Sheath
Package Sterile
Specification 4/4.5/5/6/7/8Fr * 9-16cm

Product Description

Vascular Access Introducer Sheath Header

This medical device is intended for use in patients requiring the percutaneous retrieval of indwelling catheters, cardiac leads, fragments of catheter tubing or guidewire, and other foreign objects. It is used to insert blood vessels to establish a percutaneous access to another device.

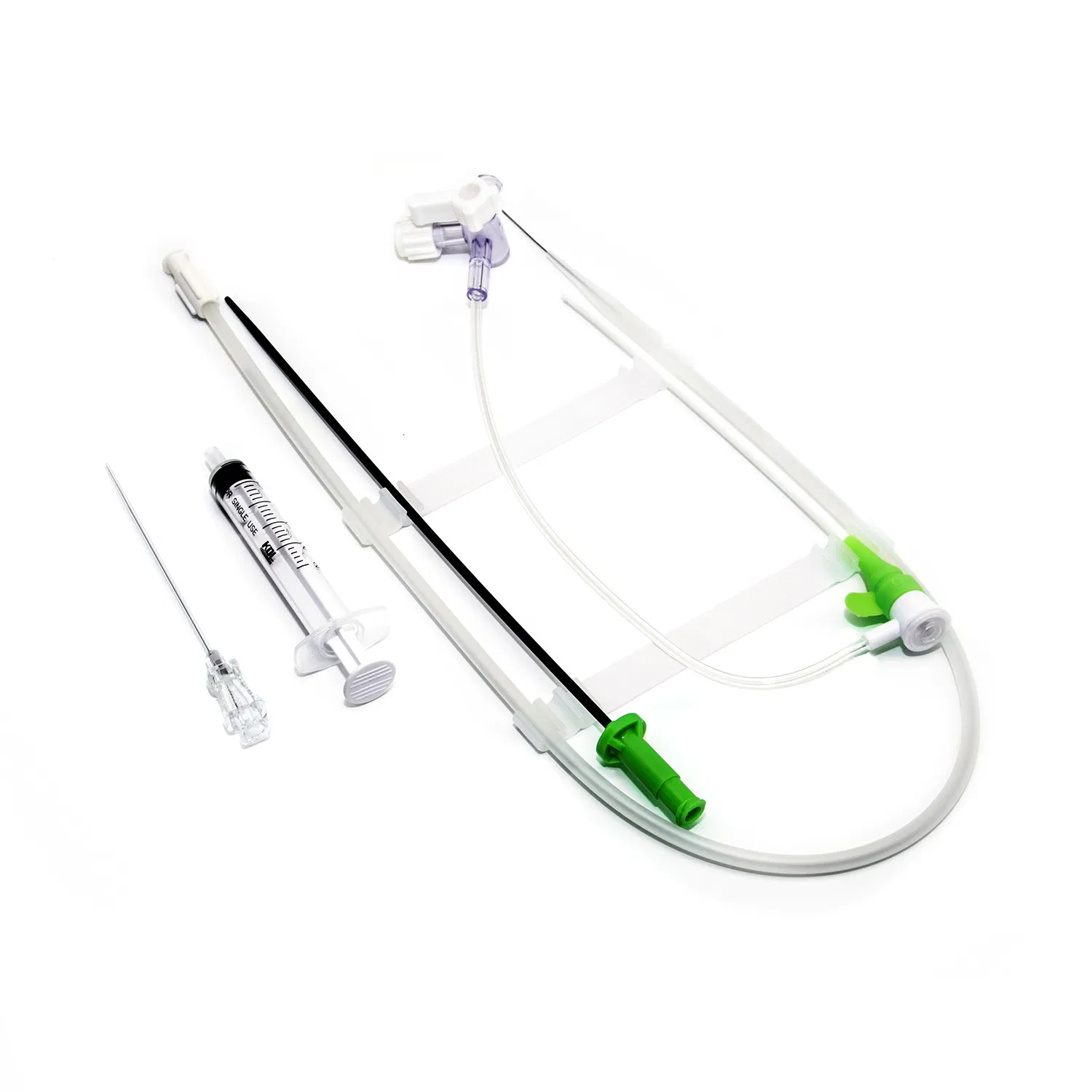

Main Components

  • Sheath: Incorporates a 1-way valve and a 3-way stopcock. Designed to resist kinking and prevent blood leakage even with catheters two Fr sizes smaller.
  • Dilator: Precise fit within the sheath allows for smooth, simultaneous motion.
  • Guide Wire: Super-elastic core wire with a smooth, hemorepellant surface coating to prevent kinking.
  • Syringe: Standard 2.5ml syringe included.
  • Introducer: Consists of an inner metallic needle and a plastic cannula.

Radiopacity: All components that enter blood vessels are radiopaque for clear visualization under medical imaging.

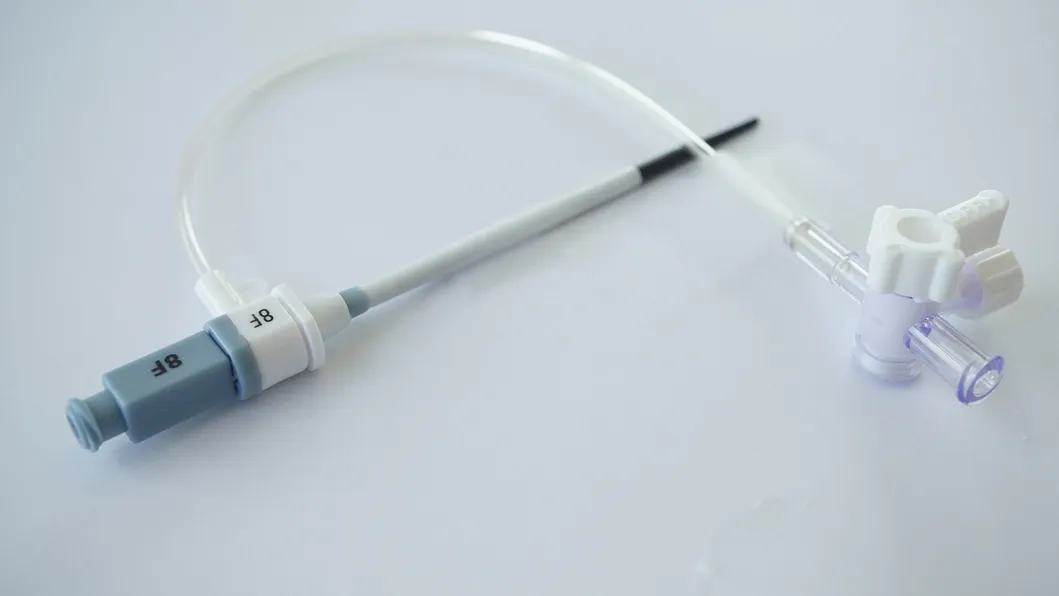

Product Components

Key Advantages

Advantages Label
  • High compatibility with most guidewires and catheters available on the market.
  • Specialized materials provide excellent biocompatibility and minimize patient trauma.
  • Proven trackability and superior kink resistance for an enhanced clinical experience.

Technical Parameters

Model Size (Fr) Sheath OD (mm) Sheath ID (mm) Sheath Length (mm) Dilator OD (mm) Dilator Length (mm) Guide Wire (mm) Syringe
CS-04094Fr2.01.55901.471400.53×4502.5mL
CS-04154Fr2.01.551501.472100.53×4502.5mL
CS-05115Fr2.61.951101.871700.89×4502.5mL
CS-05165Fr2.61.951601.872200.89×4502.5mL
CS-06116Fr2.82.251102.201700.89×4502.5mL
CS-06166Fr2.82.251602.202200.89×4502.5mL
CS-07117Fr3.22.531102.471700.89×4502.5mL
CS-08118Fr3.52.851102.781700.89×4502.5mL

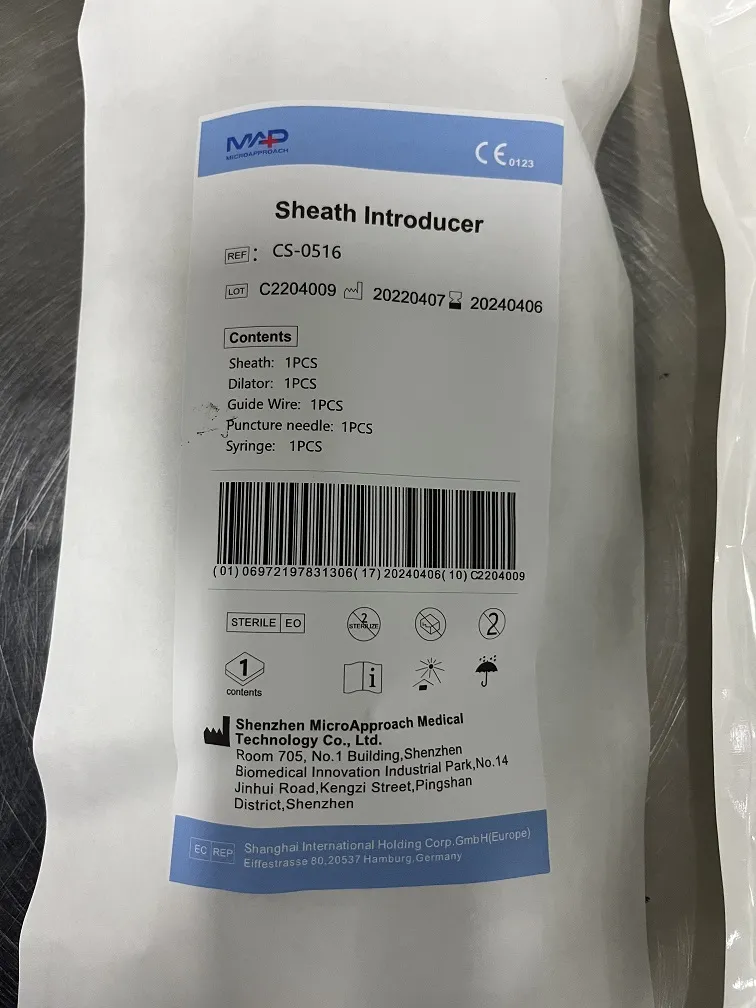

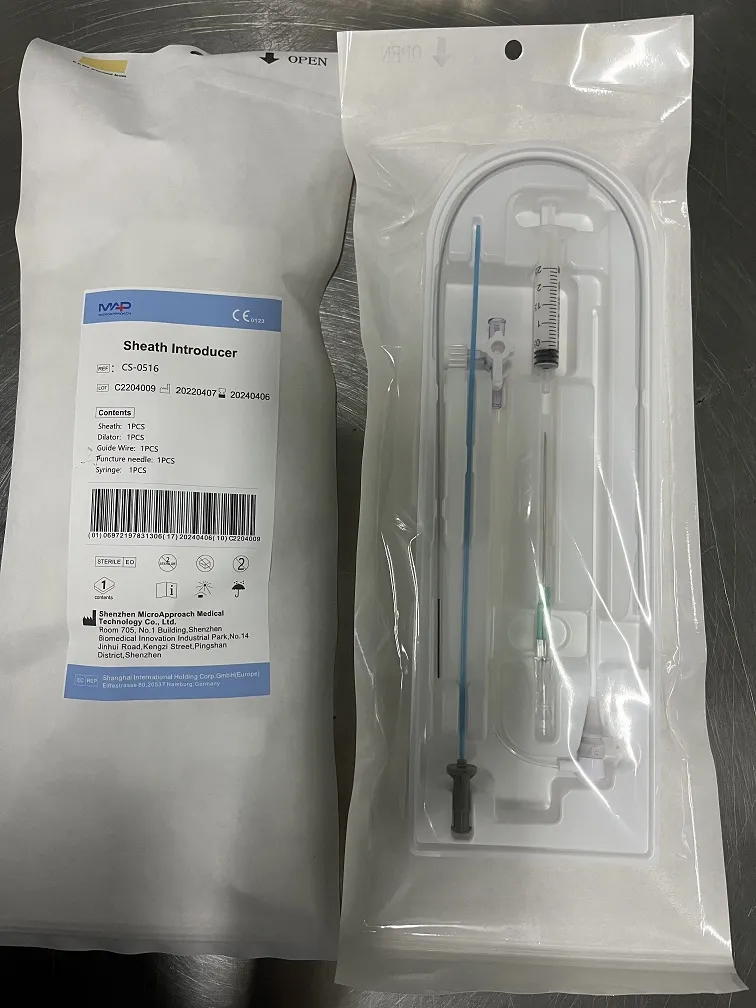

Detailed View Header Product Detail 1 Product Detail 2 Product Detail 3

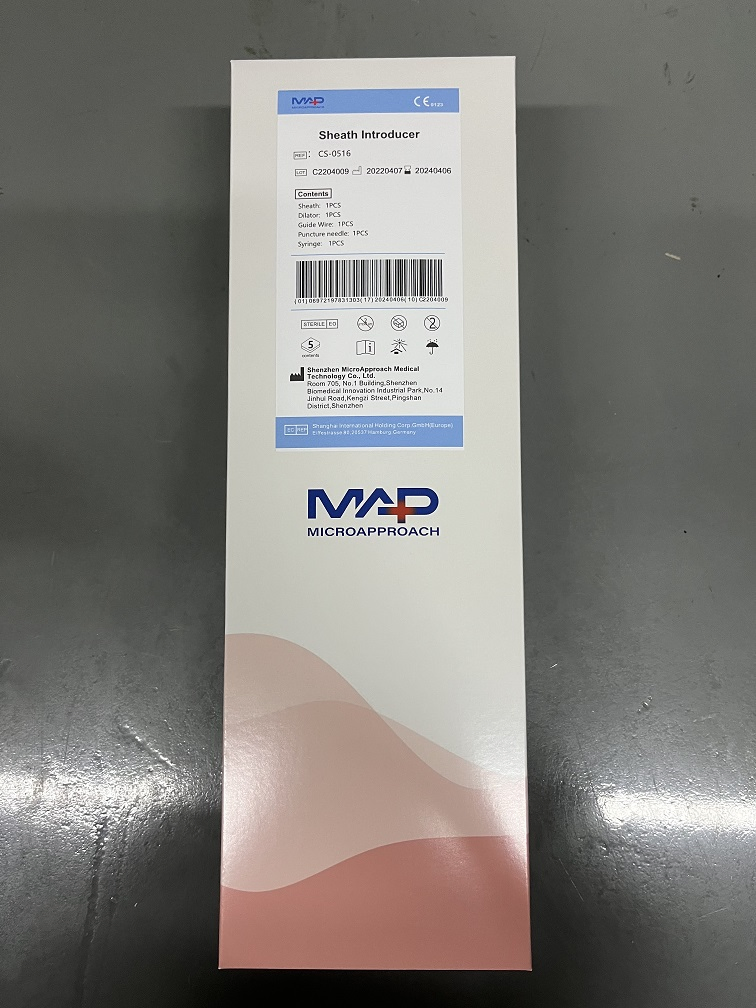

Packaging Header Sterile Package Display

Frequently Asked Questions

Q1: What is the primary use of the Introducer Sheath?
It is designed for percutaneous vascular access, allowing for the retrieval of indwelling catheters, cardiac leads, or other foreign objects.
Q2: How is the product sterilized and what is its shelf life?
The product undergoes Ethylene Oxide (EO) sterilization and comes with a quality guarantee period of 3 years.
Q3: Can the sheath prevent blood leakage during procedures?
Yes, the sheath incorporates a 1-way valve designed to prevent blood leakage even when using catheters up to two Fr sizes smaller.
Q4: Are the components visible under X-ray or Fluoroscopy?
Yes, all components that enter the blood vessels are radiopaque, ensuring high visibility during clinical procedures.
Q5: What are the available sizes for this model?
The CS model is available in sizes ranging from 4Fr to 8Fr, with effective sheath lengths between 9cm and 16cm.
Q6: Does the guide wire resist kinking?
Yes, the guide wire features a super-elastic core wire and a smooth surface coating specifically designed to prevent kinking.
