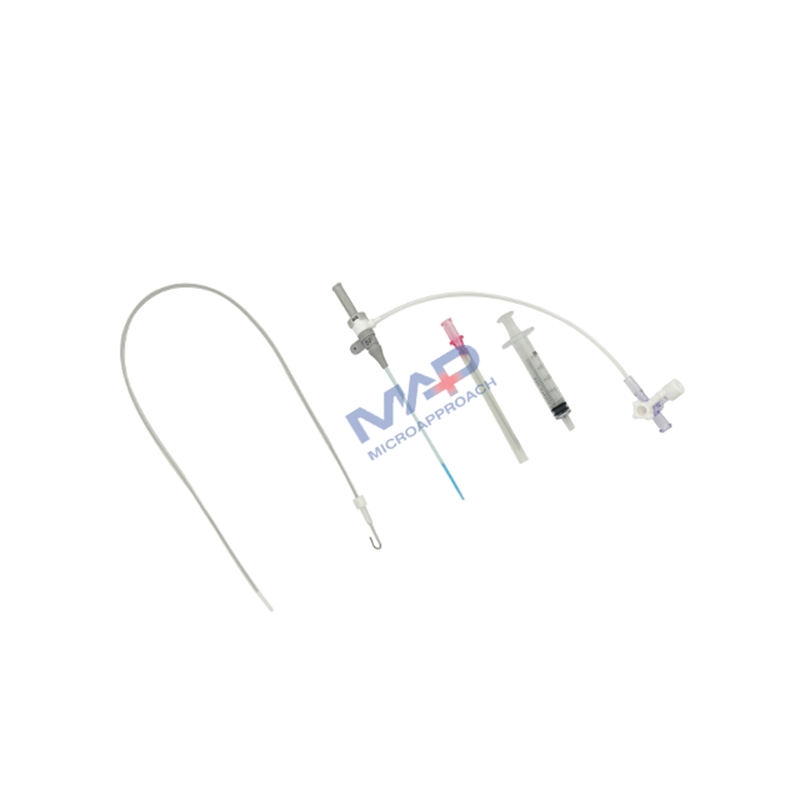

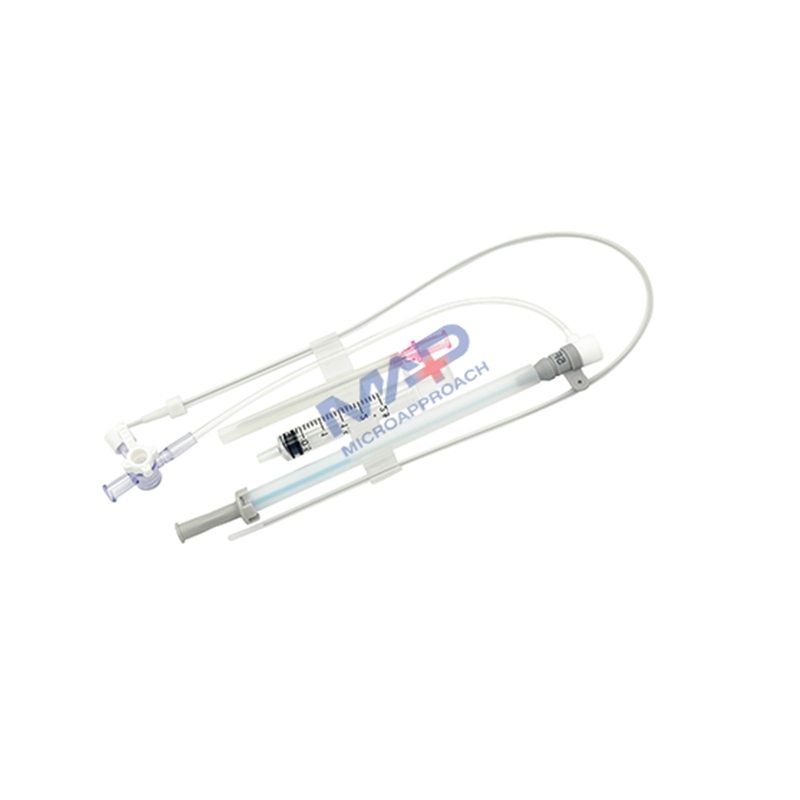

Product Description
🎯
Excellent Tip Transitions
Facilitates smooth insertion, even through tough skin or grafts.
💧
Large Bore Stopcocks
Allows for increased aspiration, flush and flow during procedures. Stopcock is removable.
⚙️
Pinch Clamp
Provides fluid control delivery through side arm tubing.
🔌
Sheath Hub
Angle of hub combined with large inner diameter side arm tubing provide superior flow.
| Model |
Size |
Sheath OD (mm) |
Sheath ID (mm) |
Effective Length (mm) |
Dilator OD (mm) |
Guide Wire (mm) |
Syringe Size |
| CS-0409 | 4Fr | 2.0 | 1.55 | 90 | 1.47 | 0.53×450 | 2.5mL |
| CS-0415 | 4Fr | 2.0 | 1.55 | 150 | 1.47 | - | - |
| CS-0511 | 5Fr | 2.6 | 1.95 | 110 | 1.87 | 0.89×450 | - |
| CS-0516 | 5Fr | 2.6 | 1.95 | 160 | 1.87 | - | - |
| CS-0611 | 6Fr | 2.8 | 2.25 | 110 | 2.20 | - | - |
| CS-0616 | 6Fr | 2.8 | 2.25 | 160 | 2.20 | - | - |
| CS-0711 | 7Fr | 3.2 | 2.53 | 110 | 2.47 | - | - |
| CS-0811 | 8Fr | 3.5 | 2.85 | 110 | 2.78 | - | - |
Application: For use in arterial and venous procedures requiring percutaneous introduction of Intravascular devices.
- Hemostasis Balance: A hexacuspid design that provides a balance between catheter maneuverability and hemostasis.
- Procedural Flexibility: A rotating suture collar that facilitates greater procedural flexibility and allows more patient movement.
- Kink-Resistance: Cannula design integrating a soft, flexible inner layer with a stiffer outer layer for improved bendability and support.
- Atraumatic Entry: Uniquely tapered and manicured tip transitions for both the sheath and the vessel dilator.
Frequently Asked Questions
What is the sterilization method used for the Sheath Introducer Set?
The set is sterilized using Ethylene Oxide (EO) sterilization and comes in a sterile package.
How long is the quality guarantee period for this medical device?
The quality guarantee period is 3 years from the date of manufacture.

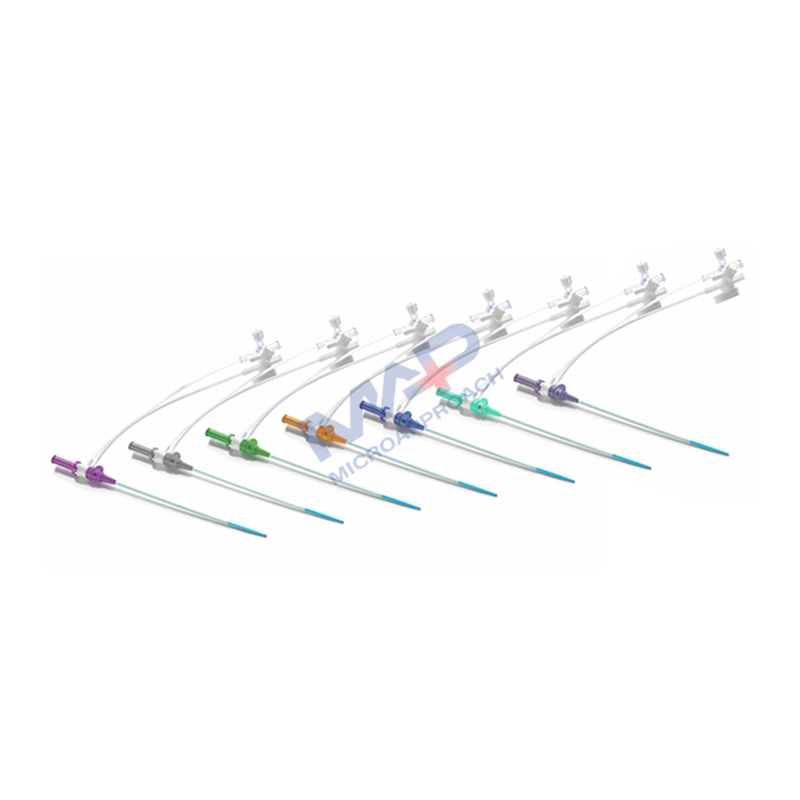

What French sizes are available for the introducer sheath?
The specifications range from 4Fr to 8Fr, with effective lengths varying from 9cm to 16cm.
Does the design prevent kinking during vascular procedures?
Yes, it features a kink-resistant cannula design that integrates a soft inner layer with a stiffer outer layer for better support.
Is the stopcock removable?
Yes, the large bore stopcock is designed to be removable to facilitate increased flow or flush during procedures.

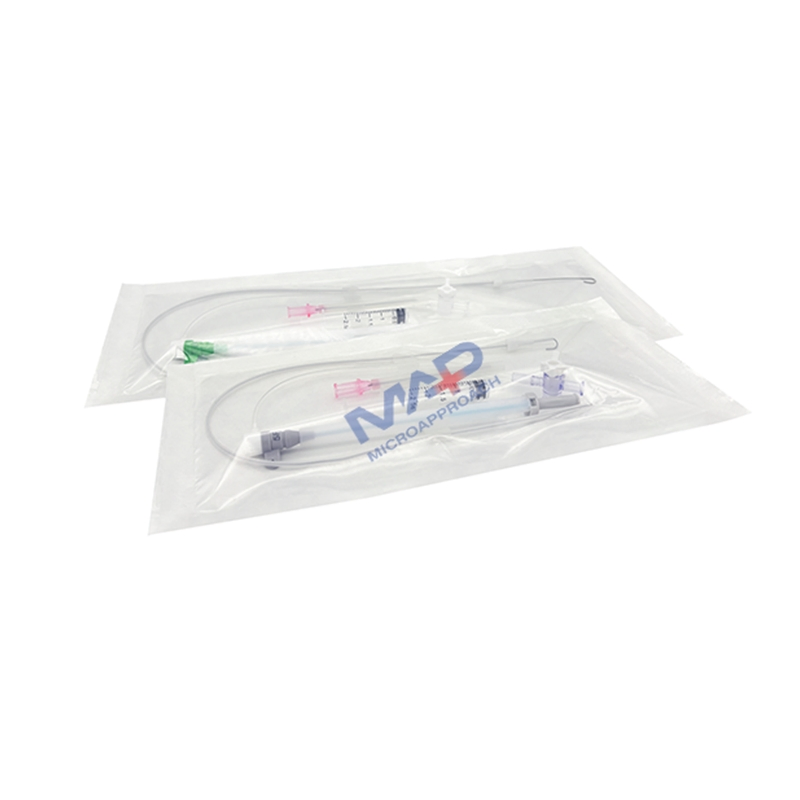

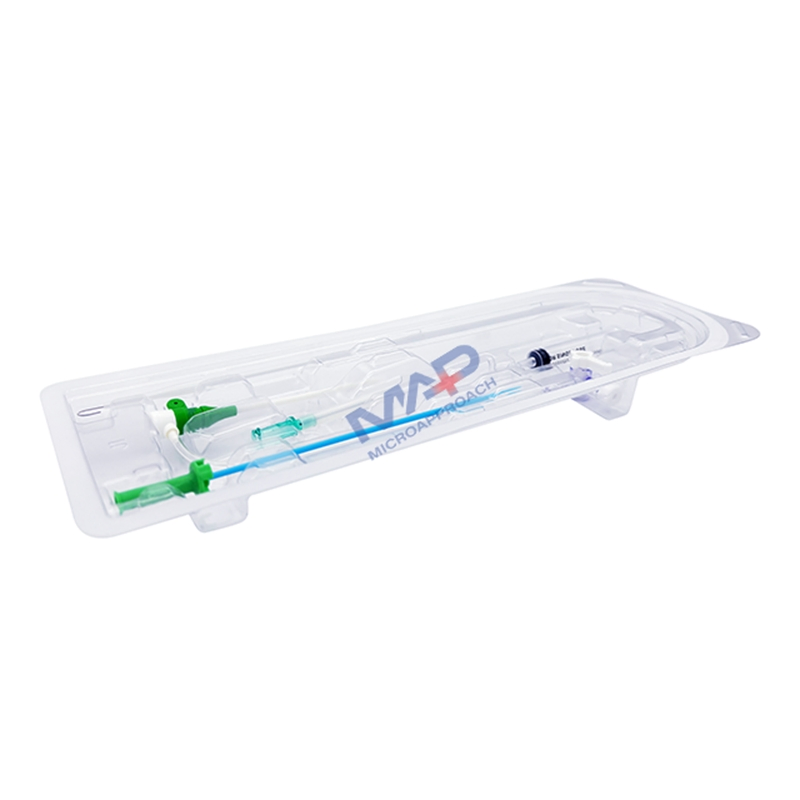

What is included in the transport packaging?
The product is packed in a Tektronix paper bag, followed by an inner box and a sturdy outer box for safe transport.
