Product Description
Excellent Tip Transitions
Facilitates smooth insertion, even through tough skin or grafts.
Large Bore Stopcocks
Allows for increased aspiration, flush and flow during procedures. Stopcock is removable.
Pinch Clamp
Provides fluid control delivery through side arm tubing.

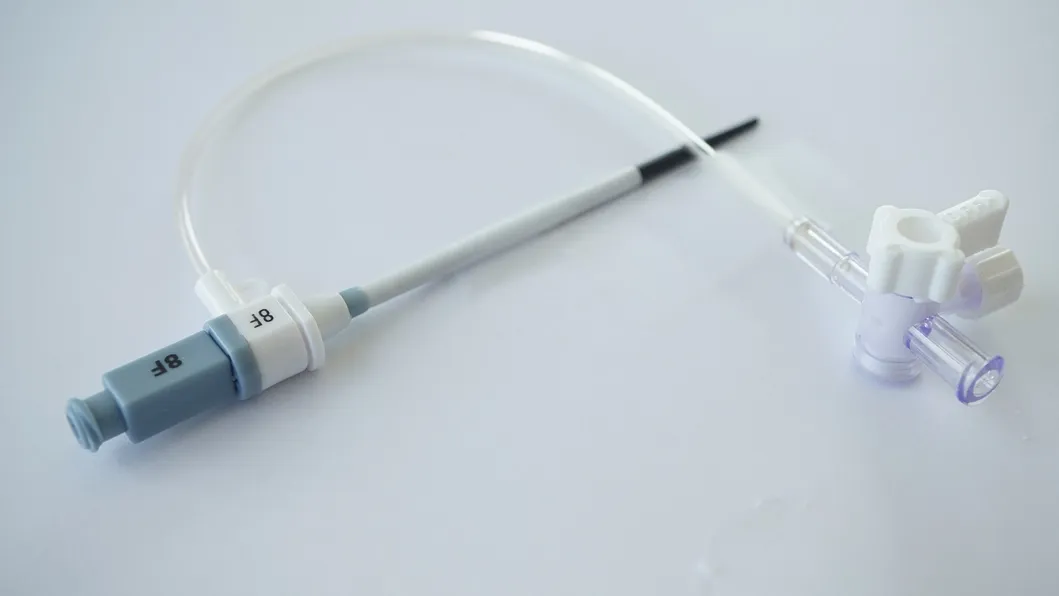

Sheath Hub
Angle of hub combined with large inner diameter side arm tubing provide superior flow.
| Component Name |
Sheath tube(mm) |
Dilator(mm) |
Guide Wire(mm) |
Puncture needle(mm) |
Syringe |
| Model |
Size |
OD (D1) |
ID (D2) |
Length (L1) |
OD (D3) |
ID (D4) |
Length (L2) |
OD x Length |
Casing Size |
Inner Needle |
Size |
| CS-0409 | 4Fr | 2.0 | 1.55 | 90 | 1.47 | 0.64 | 140 | 0.53×450 | 1.30×0.95×64 | 0.91×78 | 2.5mL |
| CS-0415 | 4Fr | 2.0 | 1.55 | 150 | 1.47 | 0.64 | 210 | - | - | - | - |
| CS-0511 | 5Fr | 2.6 | 1.95 | 110 | 1.87 | 1.06 | 170 | 0.89×450 | - | - | - |
| CS-0516 | 5Fr | 2.6 | 1.95 | 160 | 1.87 | 1.06 | 220 | - | - | - | - |
| CS-0611 | 6Fr | 2.8 | 2.25 | 110 | 2.20 | 1.06 | 170 | - | - | - | - |
| CS-0616 | 6Fr | 2.8 | 2.25 | 160 | 2.20 | 1.06 | 220 | - | - | - | - |
| CS-0711 | 7Fr | 3.2 | 2.53 | 110 | 2.47 | 1.06 | 170 | - | - | - | - |
| CS-0811 | 8Fr | 3.5 | 2.85 | 110 | 2.78 | 1.06 | 170 | - | - | - | - |

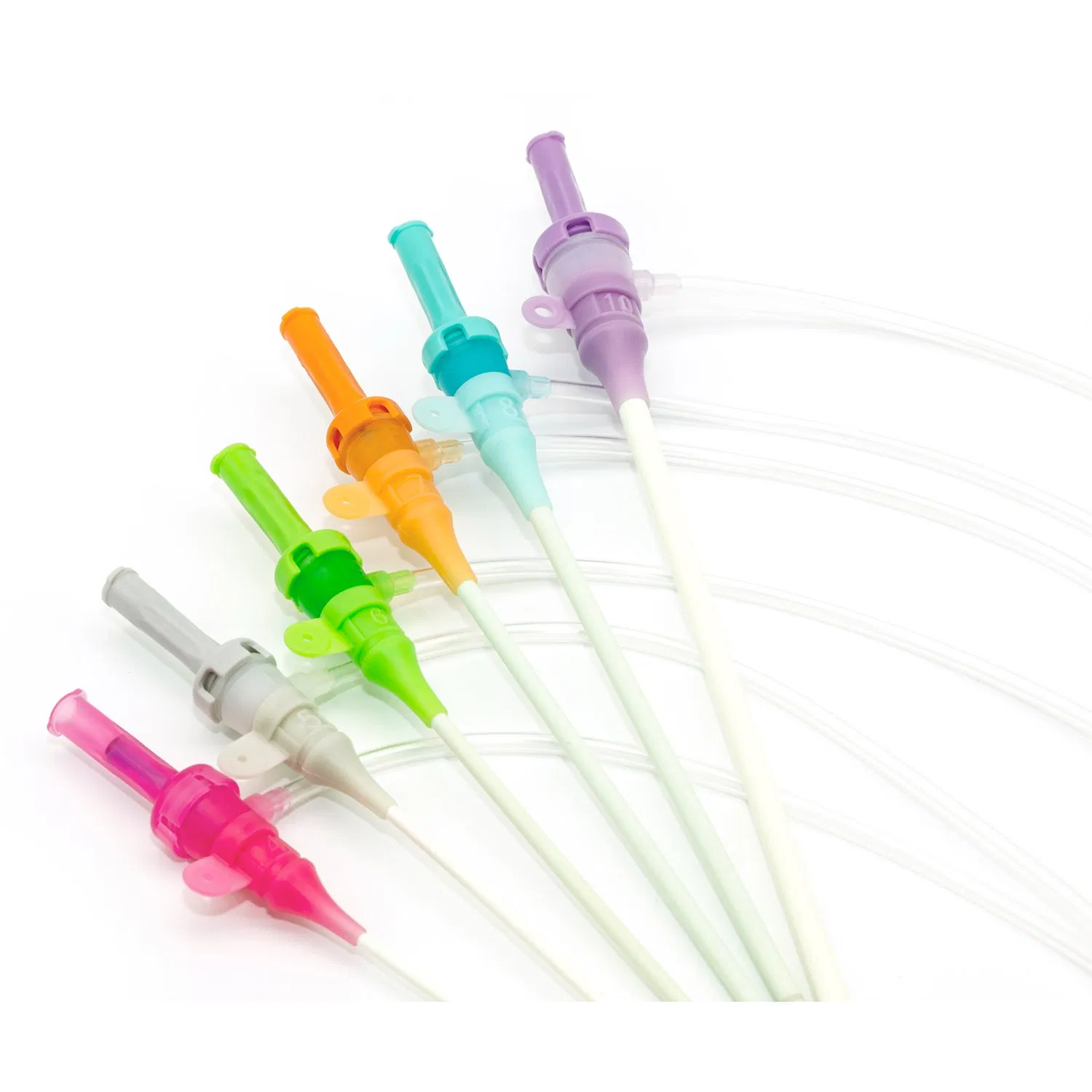

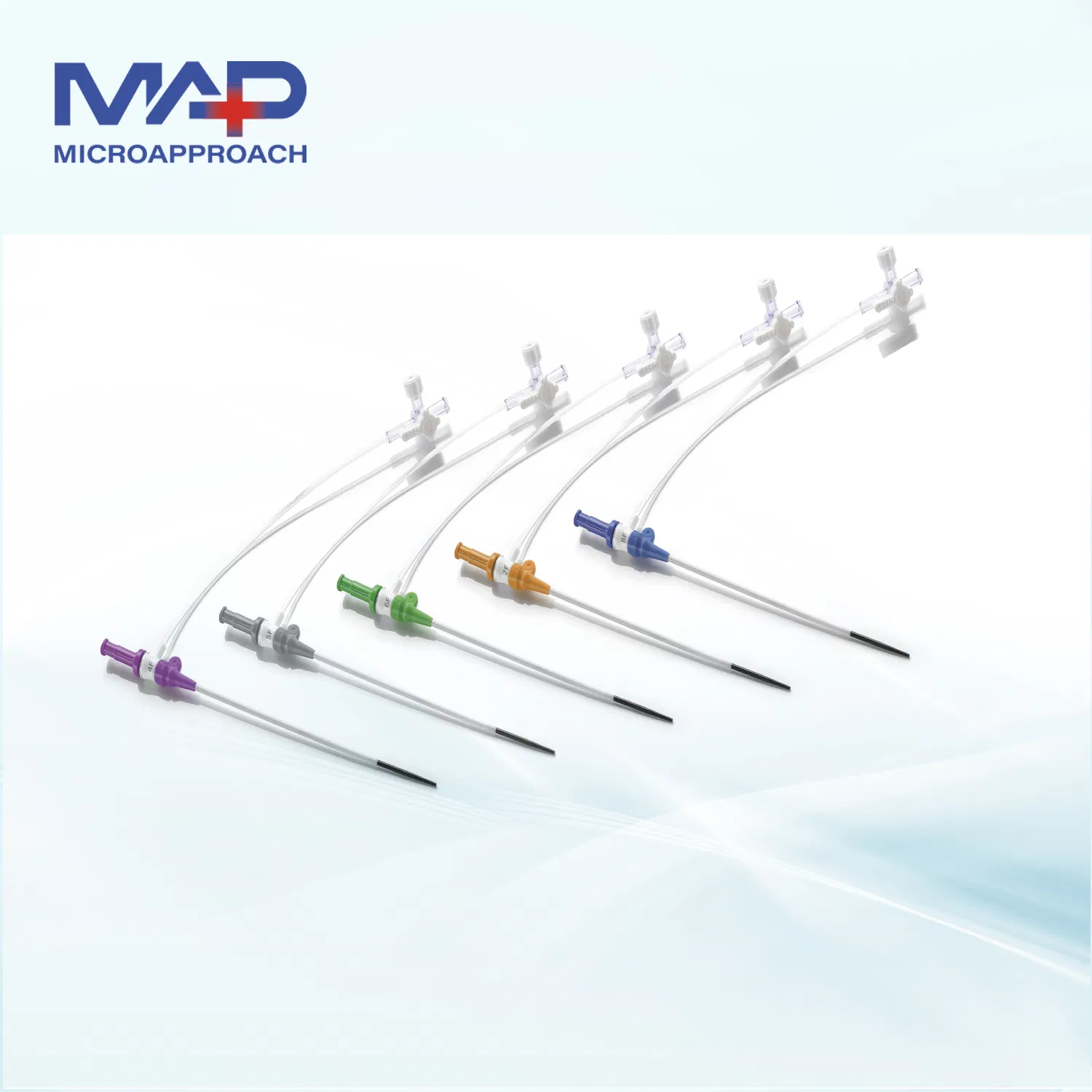

For use in arterial and venous procedures requiring percutaneous introduction of Intravascular devices.
Advanced Design Features:
• Hexacuspid design: Provides a balance between catheter maneuverability and hemostasis.
• Rotating suture collar: Facilitates greater procedural flexibility and allows more patient movement.
• Kink-resistant cannula: Integrates a soft, flexible inner layer with a stiffer outer layer for improved bendability.
• Atraumatic tip transitions: Tapered and manicured for smooth insertion and reduced vessel damage.
Frequently Asked Questions
What is the shelf life of the Introducer Sheath?
The product comes with a quality guarantee period of 3 years from the date of manufacture.
How is the device sterilized?
All introducer sheaths undergo a strict Ethylene Oxide (EO) sterilization process to ensure safety for medical use.
What sizes are available for the vascular sheaths?
We offer a range of sizes including 4Fr, 5Fr, 6Fr, 7Fr, and 8Fr, with effective lengths ranging from 9cm to 16cm.
Does the sheath prevent kinking during insertion?
Yes, the cannula design integrates a soft inner layer and a stiffer outer layer to provide superior kink resistance and support.
Is the stopcock removable?
Yes, the large bore stopcocks are designed to be removable, allowing for increased aspiration and flow control during procedures.

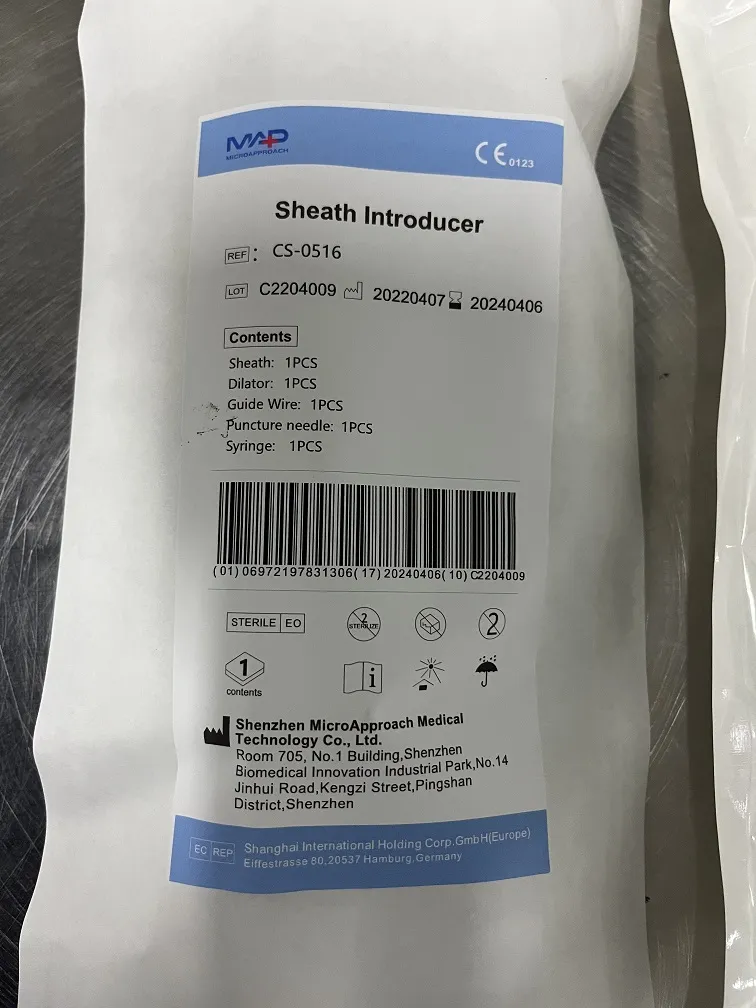

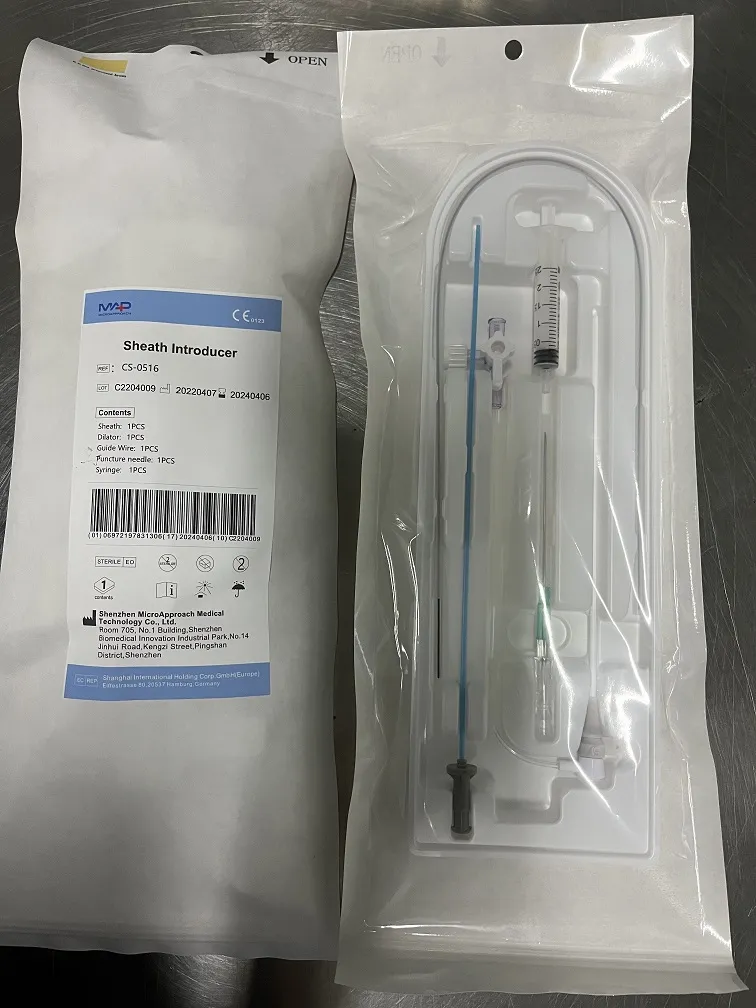

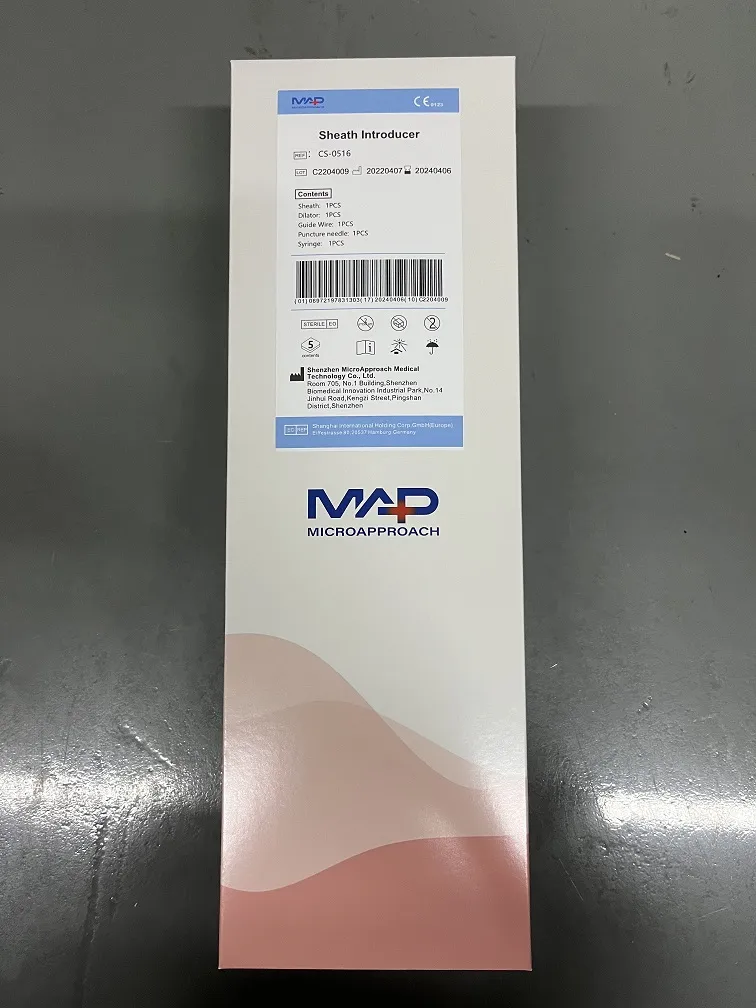

What is included in the transport packaging?
The product is securely packed in a Tektronix Paper Bag, followed by an Inner Box and a standard Outer Box for safe transport.
