Basic Specifications
●
Sterilization:
Ethylene Oxide Sterilization
●
Guarantee:
3 Years
●
Group:
Adult
●
Logo:
With Logo Printing
●
Product Type:
Introducer Sheath
●

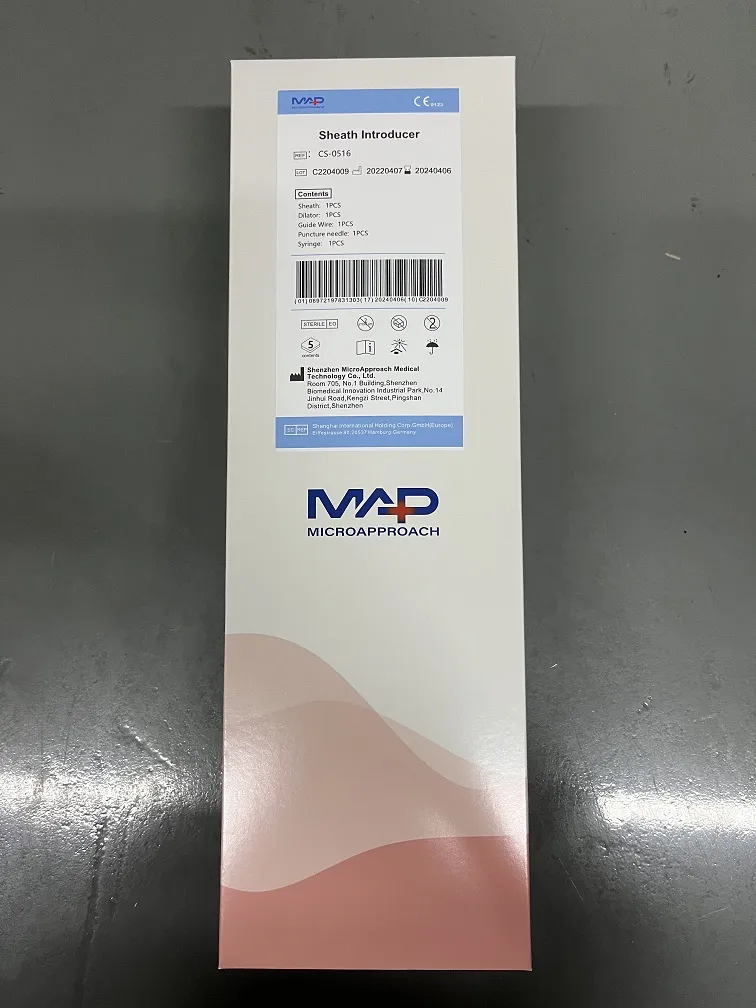

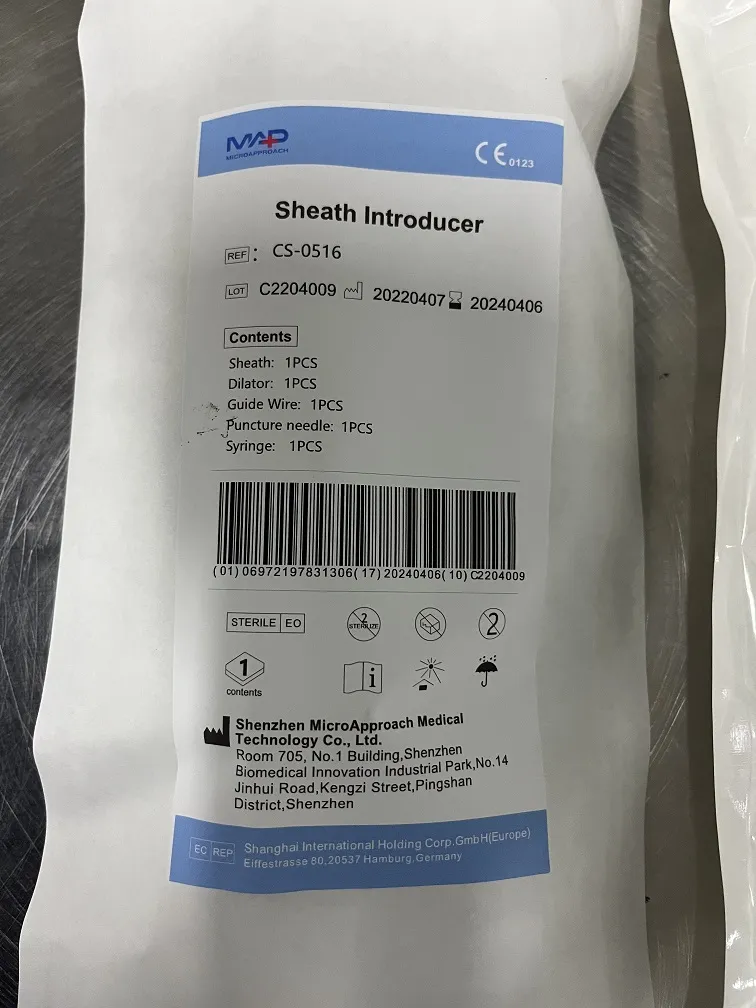

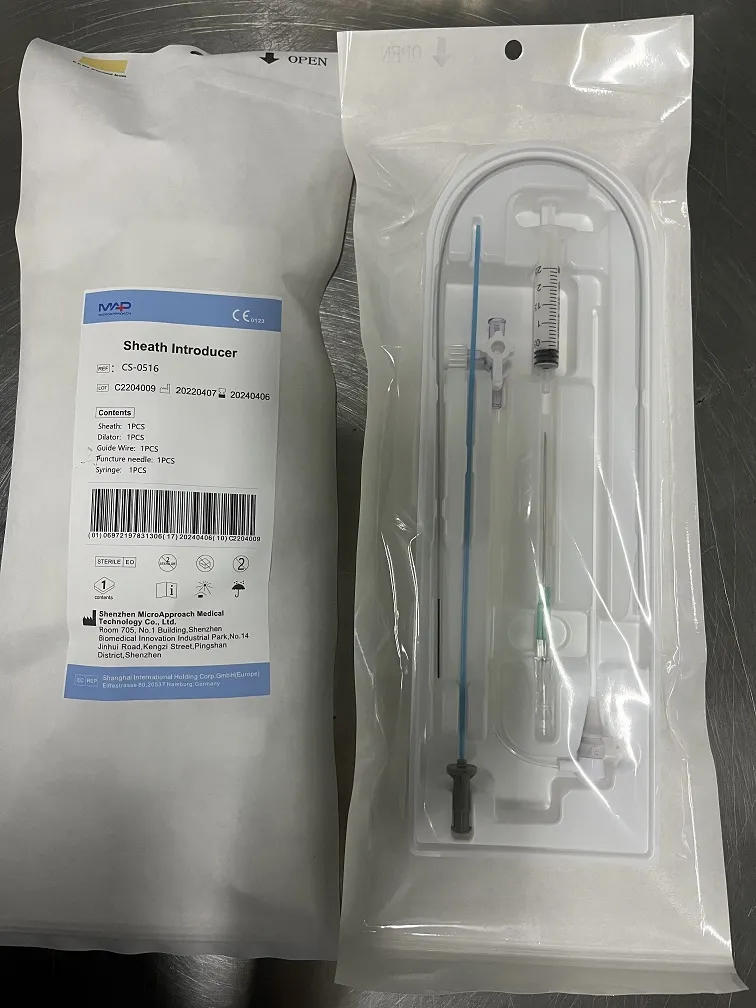

Package:
Sterile Paper Bag+Inner Box+Outer Box
●
Specification:
4/4.5/5/6/7/8Fr * 9-16cm
●
Origin:
China

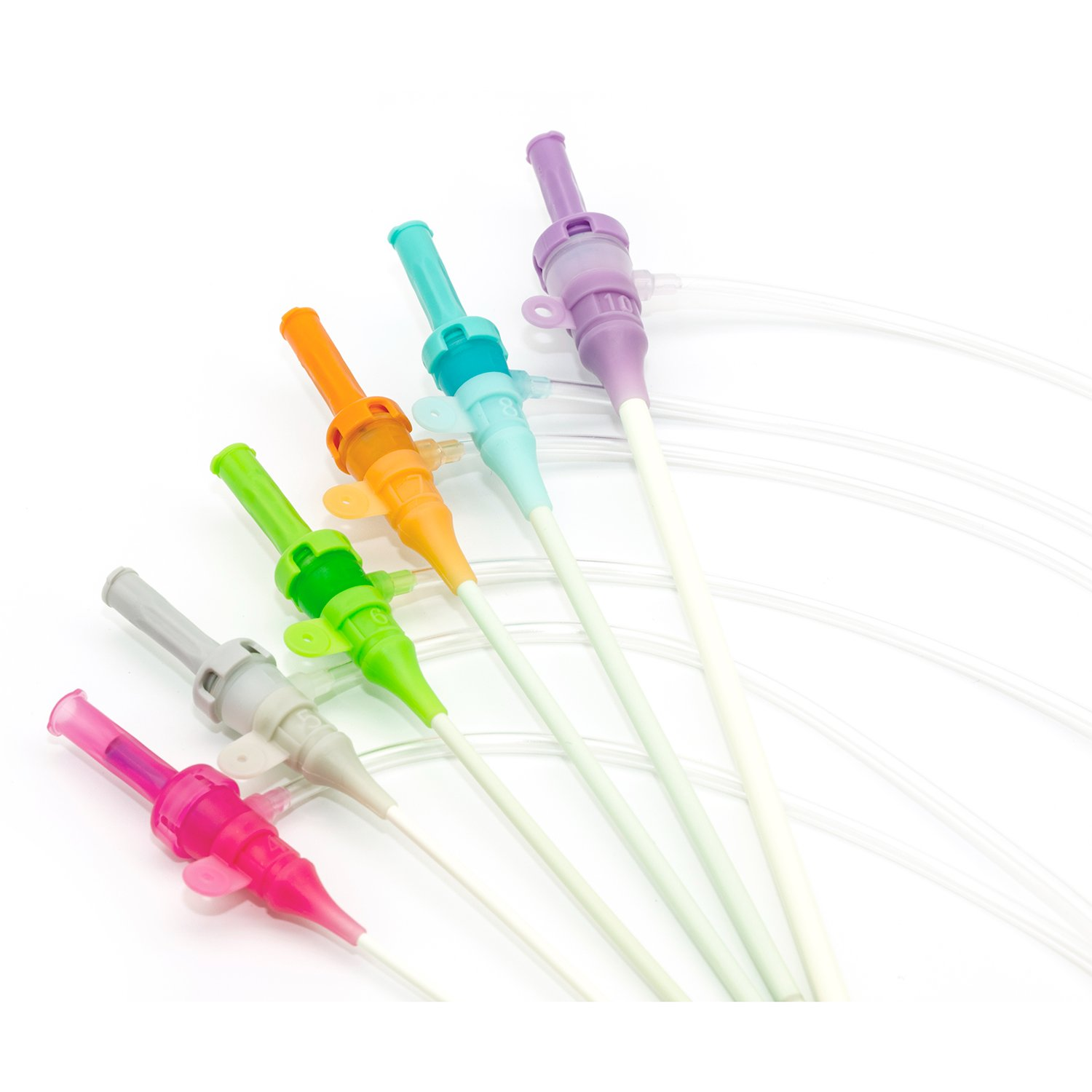

Key Design Features
Excellent Tip Transitions: Facilitates smooth insertion, even through tough skin or grafts.
Large Bore Stopcocks: Allows for increased aspiration, flush and flow during procedures. Stopcock is removable.
Pinch Clamp: Provides fluid control delivery through side arm tubing.

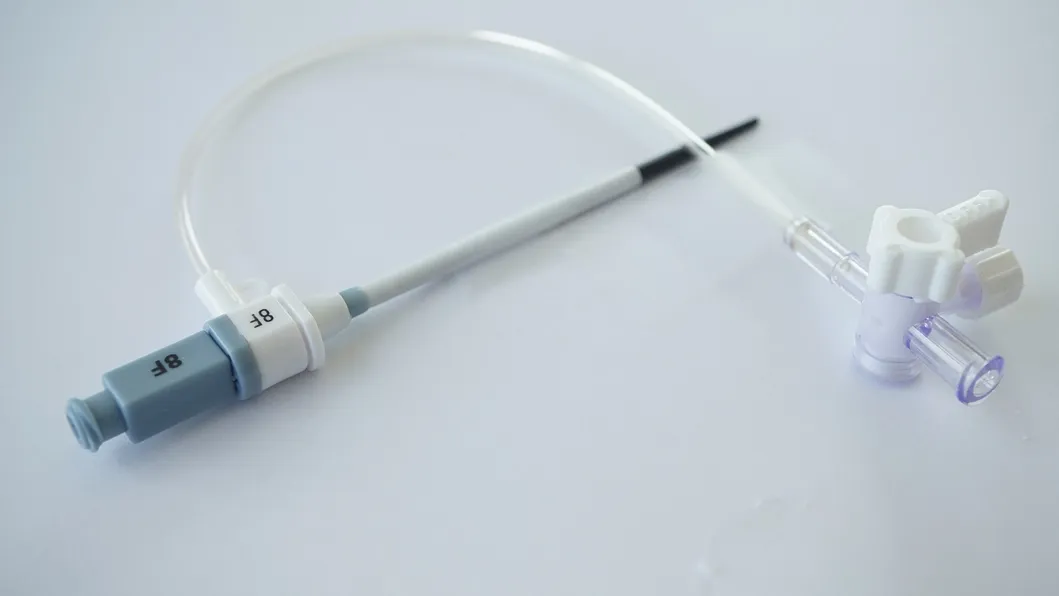

Sheath Hub: Angle of hub combined with large inner diameter side arm tubing provide superior flow.
| Model |
Size |
Sheath Tube (mm) |
Dilator (mm) |
Guide Wire |
Puncture Needle (mm) |
Syringe |
| OD |
ID |
Length |
OD |
ID |
Length |
OD x L |
Casing |
Inner |
Size |
| CS-0409 |
4Fr |
2.0 |
1.55 |
90 |
1.47 |
0.64 |
140 |
0.53×450 |
1.30×0.95×64 |
0.91×78 |
2.5mL |
| CS-0415 |
4Fr |
2.0 |
1.55 |
150 |
1.47 |
0.64 |
210 |
- |
- |
- |
- |
| CS-0511 |
5Fr |
2.6 |
1.95 |
110 |
1.87 |
1.06 |
170 |
0.89×450 |
- |
- |
- |
| CS-0611 |
6Fr |
2.8 |
2.25 |
110 |
2.20 |
1.06 |
170 |
- |
- |
- |
- |
| CS-0711 |
7Fr |
3.2 |
2.53 |
110 |
2.47 |
1.06 |
170 |
- |
- |
- |
- |
| CS-0811 |
8Fr |
3.5 |
2.85 |
110 |
2.78 |
1.06 |
170 |
- |
- |
- |
- |
- Ideal for arterial and venous procedures requiring percutaneous introduction.
- Hexacuspid design provides a perfect balance between catheter maneuverability and hemostasis.
- Rotating suture collar facilitates greater procedural flexibility and stays in place securely.
- Kink-resistant cannula design with a soft inner layer and stiff outer layer for maximum support.
- Atraumatic uniquely tapered tip transitions for smooth entry and minimized vessel damage.
Frequently Asked Questions
What sterilization method is used for these vascular sheaths?
All introducer sheaths undergo Ethylene Oxide (EO) sterilization to ensure they are safe for clinical intravascular procedures.
What is the shelf life and guarantee period of the product?
The product comes with a quality guarantee period of 3 years from the date of manufacture, provided the sterile packaging remains intact.
Are there different sizes available for various procedures?
Yes, we offer a wide range of sizes including 4Fr, 5Fr, 6Fr, 7Fr, and 8Fr, with effective lengths ranging from 9cm to 16cm to suit different clinical needs.
Does the sheath design prevent kinking during insertion?
Yes, the cannula integrates a soft, flexible inner layer with a stiffer outer layer, creating a kink-resistant design that improves bendability and support.
How does the hexacuspid design benefit the procedure?
The hexacuspid valve design provides an optimal balance between maintaining hemostasis (preventing blood leakage) and allowing smooth catheter maneuverability.
Can the stopcock be removed if required?
Yes, the large bore stopcock is designed to be removable, allowing for increased aspiration and flush flow during specific intravascular procedures.
